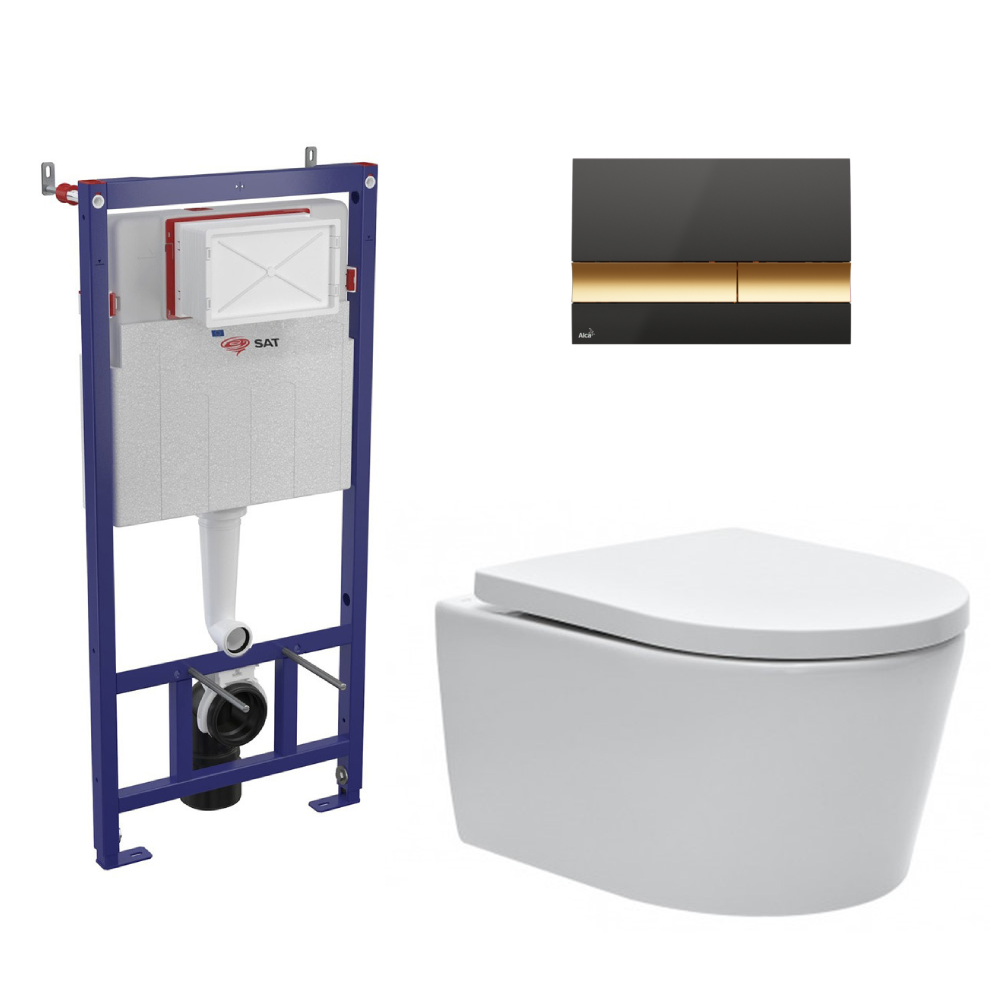

Swiss Aqua Technologies Toilet Pack SAT Rimless Wall-Hung Toilet + SAT Support Frame + Black/Gold Dual Flush Plate (SMARTK-SATrimless-M1728)
- Product reference: SMARTK-SATrimless-M1728
- EAN: 8592127174433
Brand:
Product warranty:
5
years
Features of Toilet Pack SAT Rimless Wall-Hung Toilet + SAT Support Frame + Black/Gold Dual Flush Plate (SMARTK-SATrimless-M1728):
- SAT Rimless Wall-Hung Toilet with invisible fixings + softclose seat (SATrimless)
- Alca Dual Flush Plate, Glossy Black/Gold (M1728-5)
- SAT Support Frame + Cistern 112 cm for wall-hung toilets (SATAMSK)
Product technical properties
- Toilet bowl brand:Swiss Aqua Technologies
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Swiss Aqua Technologies
- Type of frame:Standard
- Plate colour:Black / Gold
- Bowl colour:White
- Invisible fixings:Yes

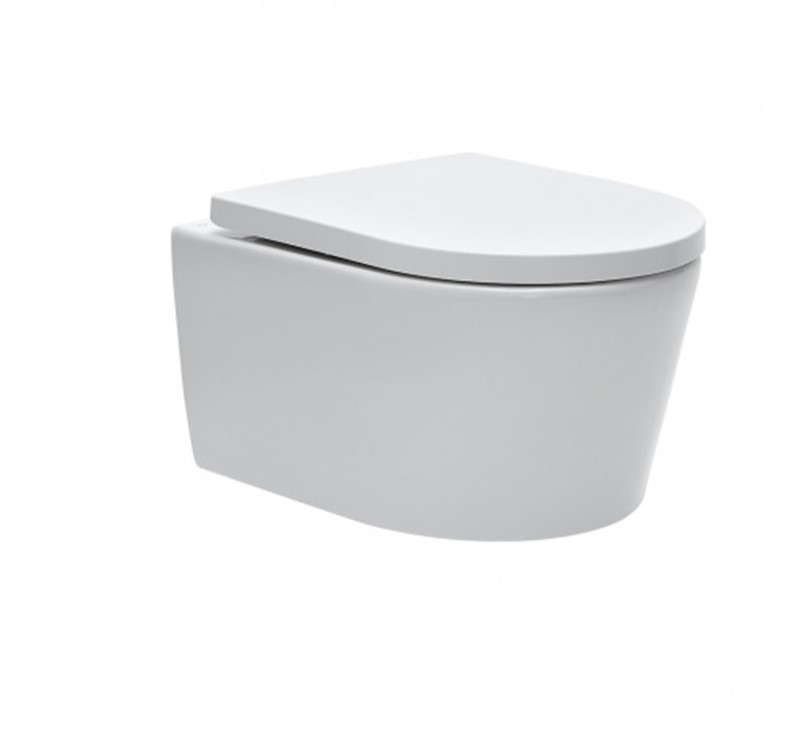

SAT Rimless Wall-Hung Toilet with invisible fixings + softclose seat (SATrimless):
- Brand: Swiss Aqua Technologies
- Material: ceramic
- Compact toilet suitable for small spaces
- Simple and clean style toilet bowl
- Rimless toilet bowl
- Invisible fixings
- 48 cm deep
- Economic rinse 3 / 4.5 L
- Soft-close seat
- Snap-on seat
- Easy to clean thanks to its rimless system and removable seat
- Quick installation

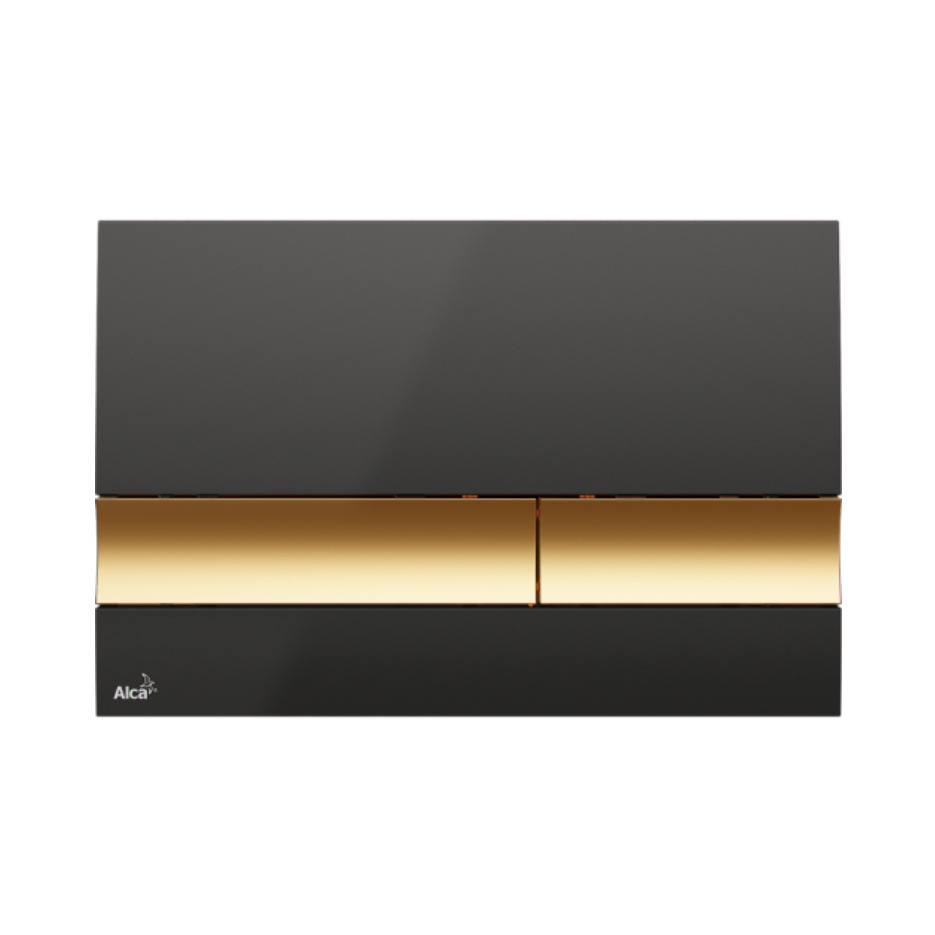

Alca Dual Flush Plate, Glossy Black/Gold (M1728-5):
- Compatible with all Alca installation systems and pre-wall tanks

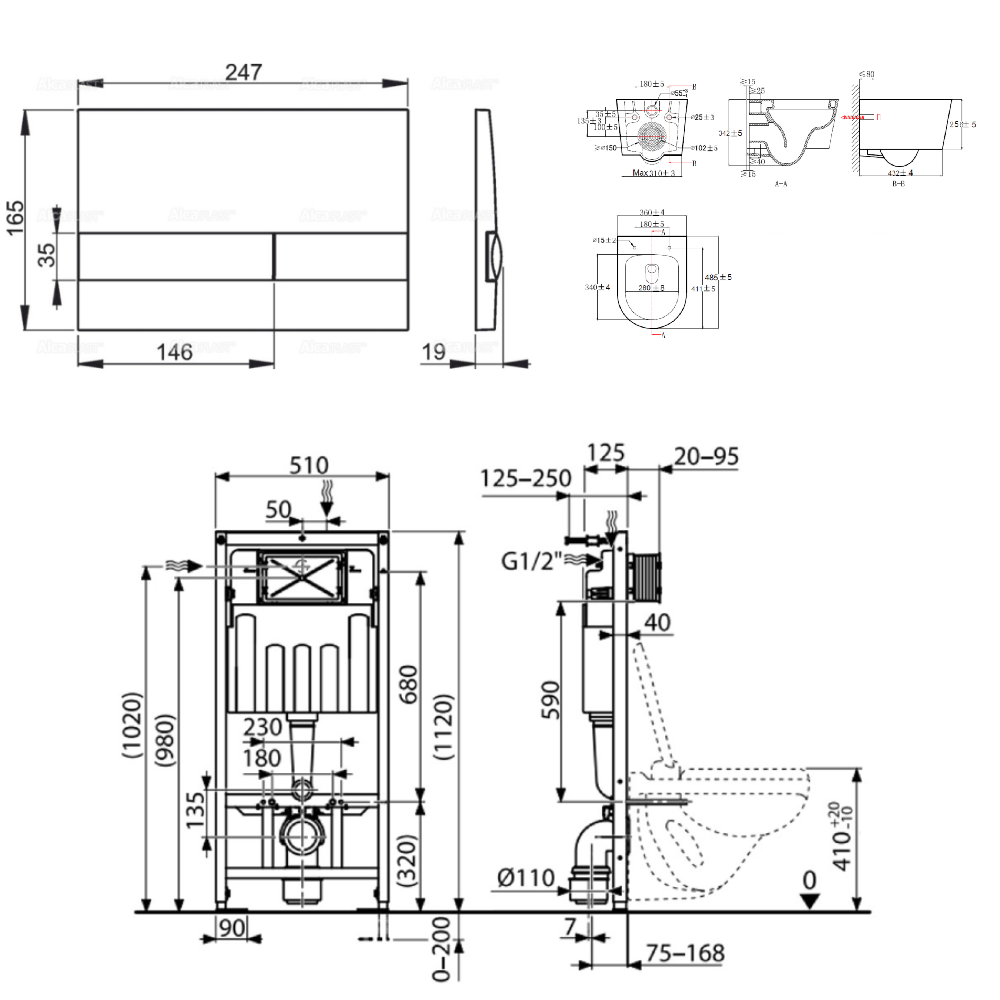

- Dimensions: 250 × 36 x 170 mm
- Colour: Black/Gold
- Material: Plastic

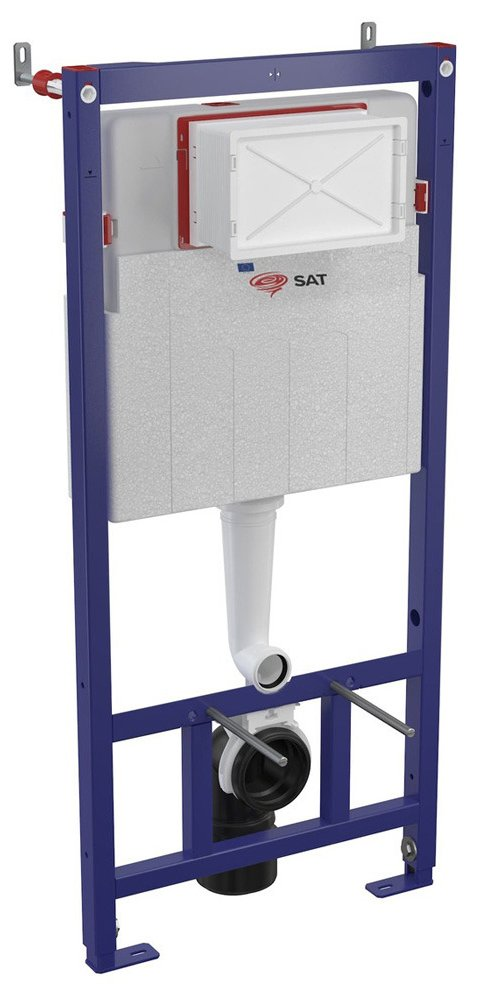

SAT Set Support Frame + Cistern 112 cm for wall-hung toilets (SATAMSK):
-
Use:
- For installation in front of a load-bearing wall or in plasterboard construction
- For the installation of a wall-hung toilet with a connection distance of 180 mm or 230 mm
- For floor constructions of 0 to 200 mm
- For wall-hung toilets
Features:
- Adjustable Dual Flush
- Compatible with all SAT control buttons
- Polystyrene insulation construction prevents condensation on the tank surface and dampens vibrations in the structure
- The service opening cover simplifies installation and prevents accumulation of moisture and dirt
- Adjustable anchoring feet and spring locking system, with a range of 0 to 200 mm
- Structural material: powder-coated metal
- Adjustable installation depth in the range of 20-95 mm
- Possibility of installing remote flushing or sensor flushing
- The tank is made in one piece, making it 100% watertight
Delivery Contents:
- Fixing kit for toilet bowl installation: M12 threaded rod - 2 pieces, washers - 4 pieces, cap - 2 pieces, nut - 2 pieces, thread protector - 2 pieces
- Fixing kit: Ø8×60 screws - 4 pcs., Ø12 plugs - 4 pcs
- 90/90 HT polyethylene drain elbow, PE-HD
- Two-part service opening cover, easily shortened
- Tank with filling and flushing valve
- 90/100 HT polyethylene waste reduction
- Set of plugs to protect connection holes during system installation
- Self-supporting frame connection
- 1/2" screw connection for water connection with integrated angle valve Schell 1/2"-3/8"
- Drainage gasket, PP connector, connector gasket
- Entry, exit PP gasket, packaging gasket
Technical details:
- Recommended water pressure range 0.3-0.5 MPa
- Functional water pressure range 0.05-0.8 MPa
- Water volume in the tank 9 L
- Water connection from the back or top via G1/2" mounting holes
- Small flush factory setting: 3 L
- Large flush factory setting 6 L
- Small flush 2.5-3.5 L
- Large flush 6-9 L
- Max load: 400 kg
