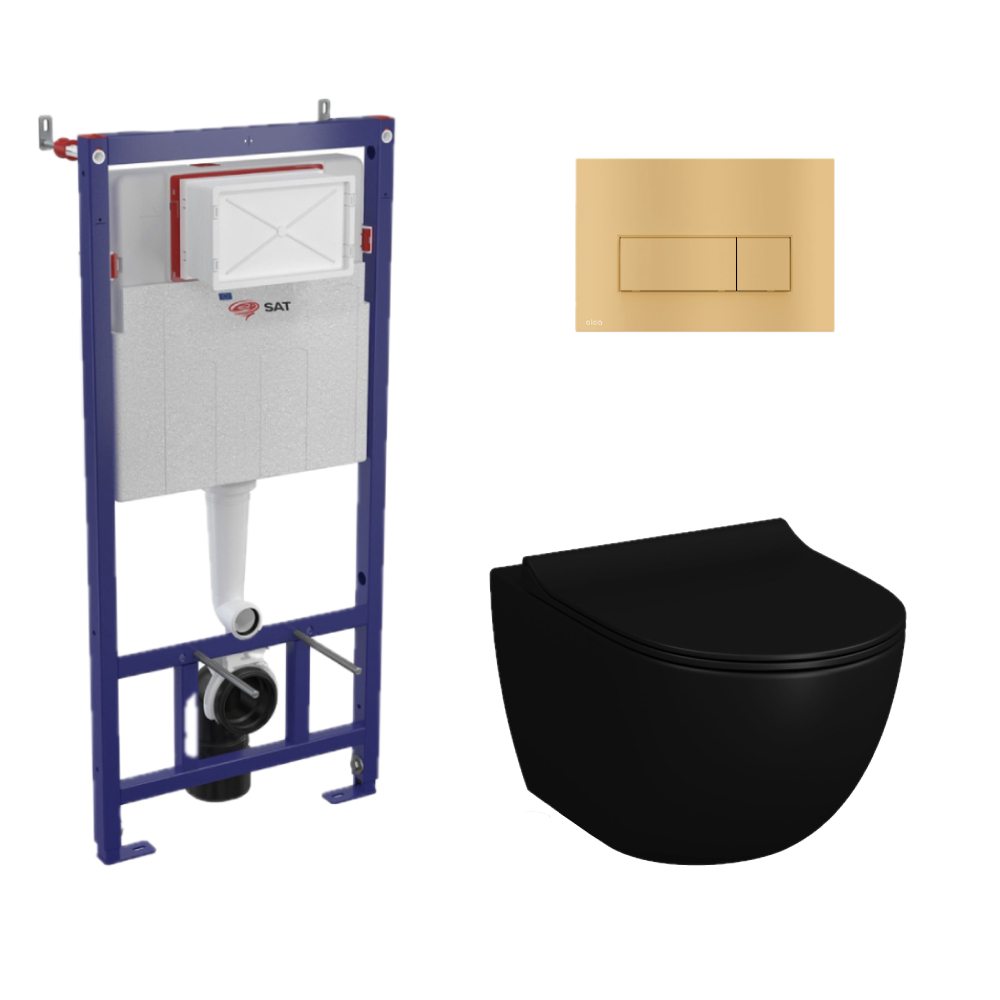

Swiss Aqua Technologies Toilet Pack VitrA Matt Black Sento Rimless Toilet + SAT Support Frame + Matt Gold Dual Flush Plate (SMARTK-BlackSento-gold)
- Product reference: SMARTK-BlackSento-gold
- EAN: 8592127174457
Brand:
Product warranty:
5
years
Features of Toilet Pack Matt Black VitrA Sento Rimless Toilet + SAT Support Frame + Alca Matt Gold Dual Flush Plate (SMARTK-BlackSento-gold) :
- Sento SmoothFlush Rimless Toilet + softclose seat, Matt Black (7848-083-6147)
- SAT Support Frame + Cistern 112 cm for wall-hung toilets (SATAMSK)
- Alca Dual Flush Plate, Matt Gold (M57-G-M)

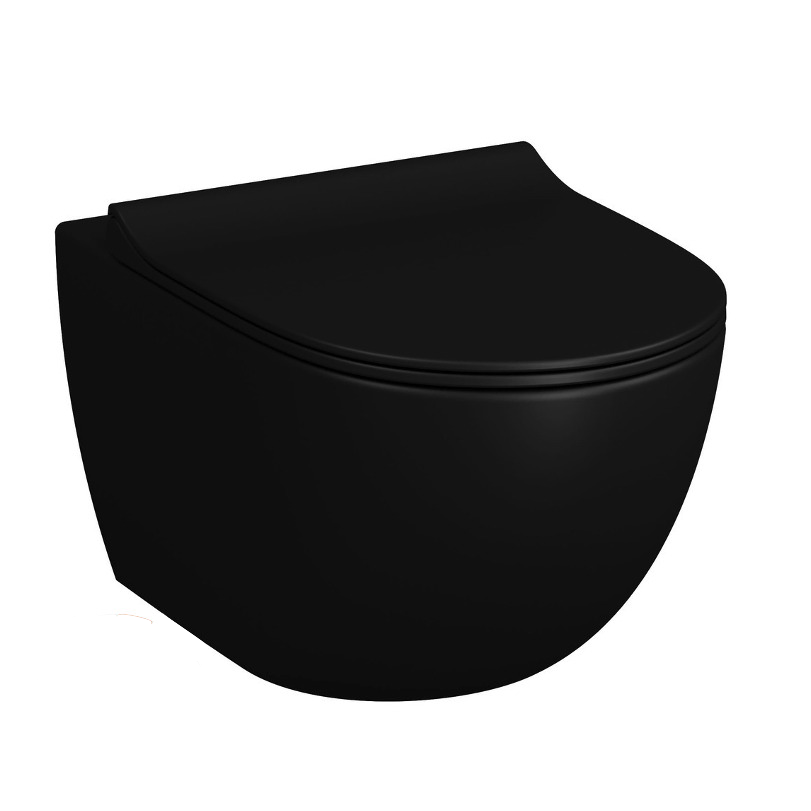

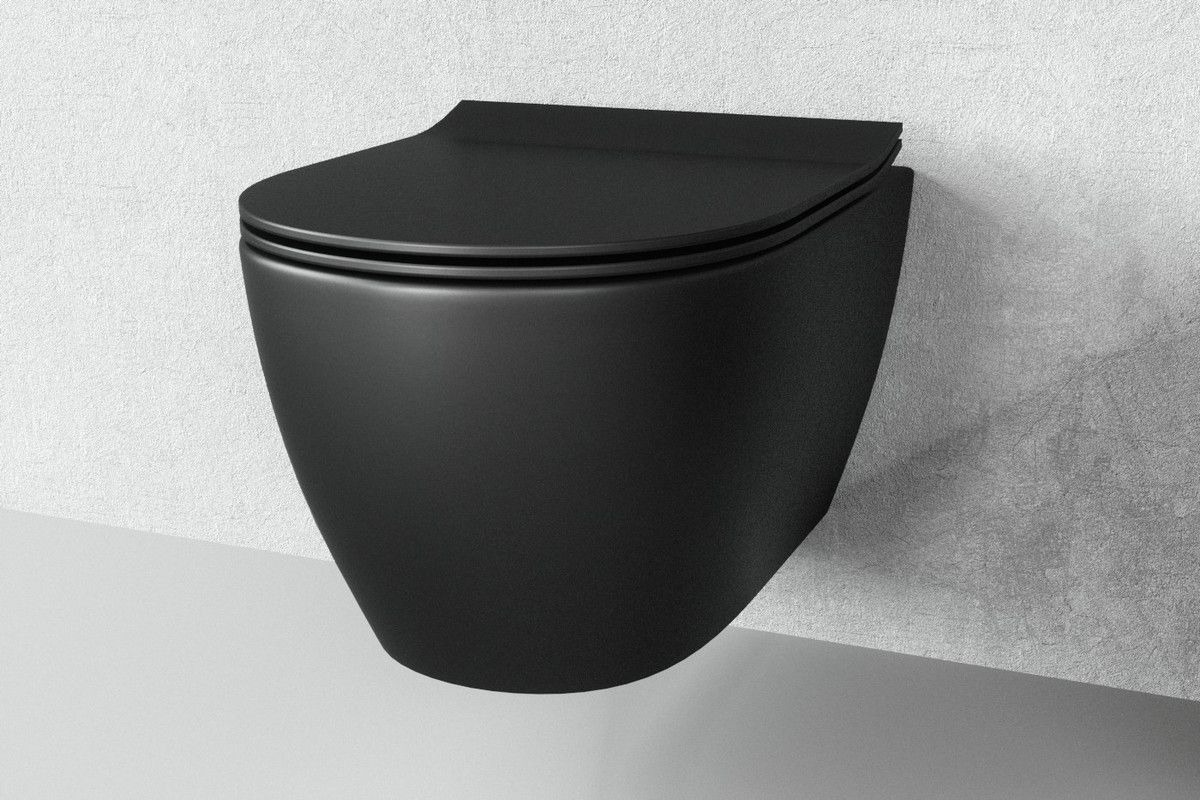

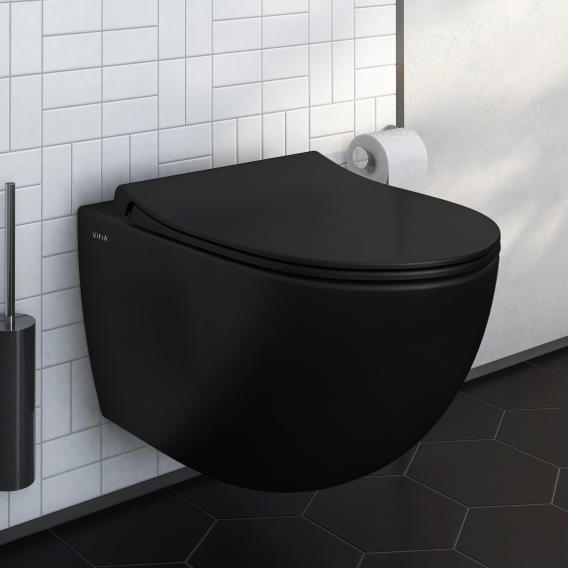

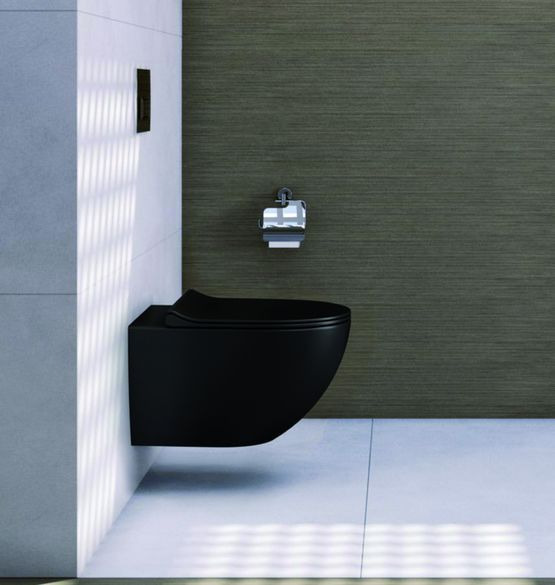

Sento SmoothFlush Rimless Toilet + softclose seat, Matt black (7848-083-6147)
- Product type: Toilet with smooth flush function
- Material: Ceramic
- Colour: Matt black
- Rimless toilet
- Duroplast seat with soft close function
- Dimensions: 36.5 x 54 x 34 cm
- Horizontal outlet
- With invisible top fixing (V-Fit 2.0)
- Flush capacity 3/6 litres

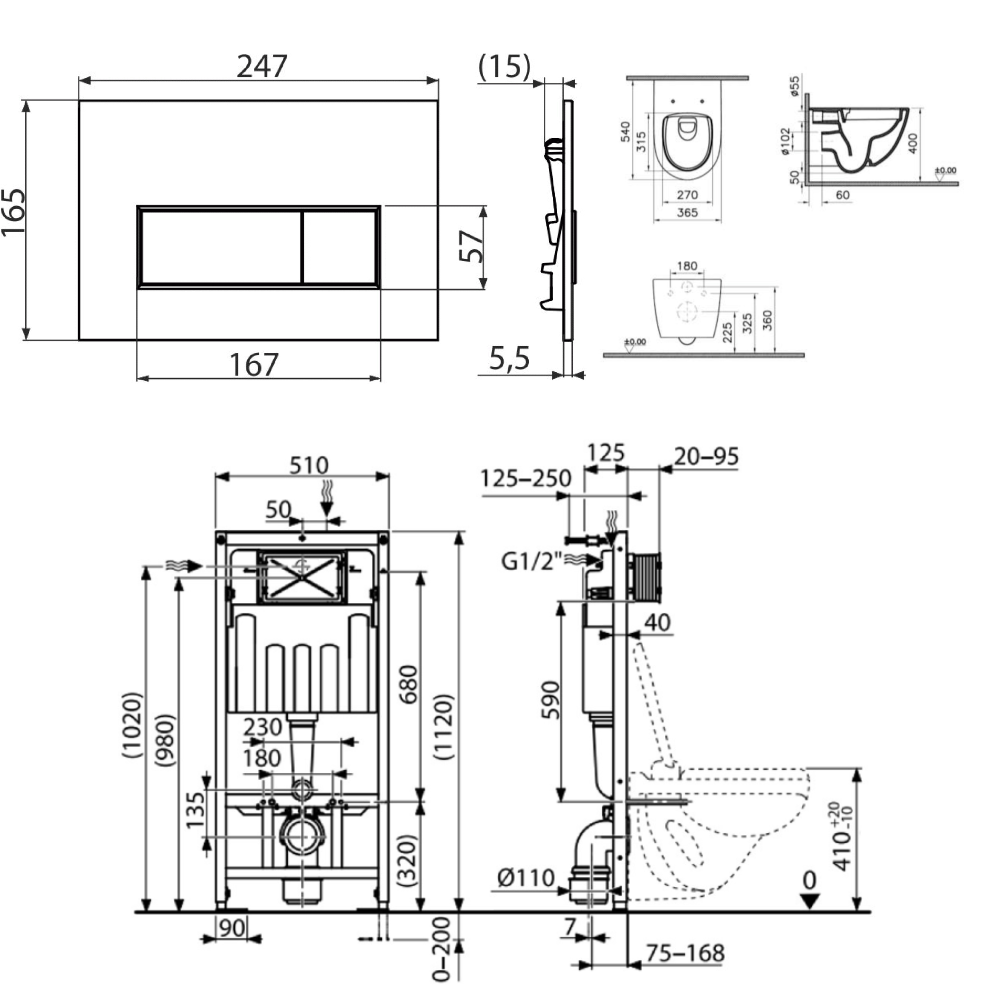

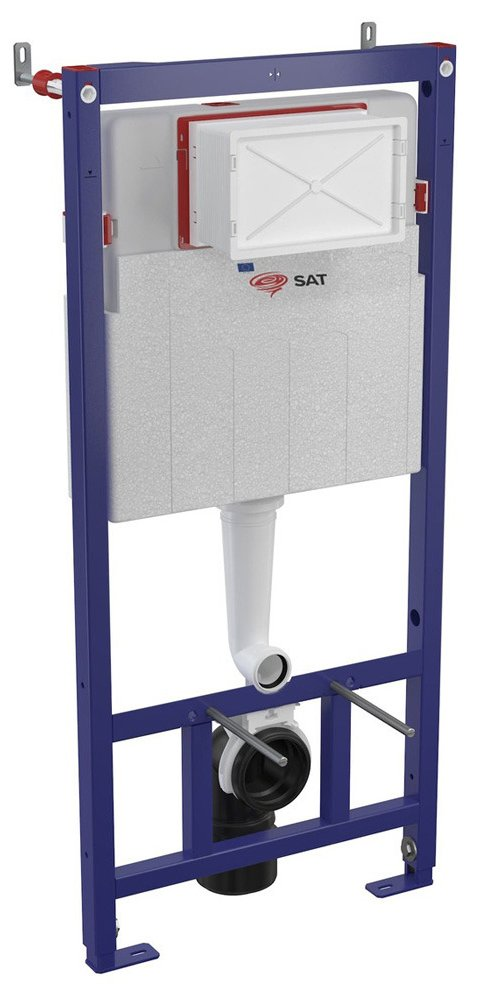

SAT Support Frame + Cistern 112 cm for wall-hung toilets (SATAMSK)
Use:
- For installation in front of a load-bearing wall or in plasterboard construction
- For the installation of a wall-hung toilet with a connection distance of 180 mm or 230 mm
- For floor constructions of 0 to 200 mm
- For wall-hung toilets
Features:
- Adjustable Dual Flush
- Compatible with all SAT control buttons
- Polystyrene insulation construction prevents condensation on the tank surface and dampens vibrations in the structure
- The service opening cover simplifies installation and prevents accumulation of moisture and dirt
- Adjustable anchoring feet and spring locking system, with a range of 0 to 200 mm
- Structural material: powder-coated metal
- Adjustable installation depth in the range of 20-95 mm
- Possibility of installing remote flushing or sensor flushing
- The tank is made in one piece, making it 100% watertight
Delivery Contents:
- Fixing kit for toilet bowl installation: M12 threaded rod - 2 pieces, washers - 4 pieces, cap - 2 pieces, nut - 2 pieces, thread protector - 2 pieces
- Fixing kit: Ø8×60 screws - 4 pcs., Ø12 plugs - 4 pcs
- 90/90 HT polyethylene drain elbow, PE-HD
- Two-part service opening cover, easily shortened
- Tank with filling and flushing valve
- 90/100 HT polyethylene waste reduction
- Set of plugs to protect connection holes during system installation
- Self-supporting frame connection
- 1/2" screw connection for water connection with integrated angle valve Schell 1/2"-3/8"
- Drainage gasket, PP connector, connector gasket
- Entry, exit PP gasket, packaging gasket
Technical details:
- Recommended water pressure range 0.3-0.5 MPa
- Functional water pressure range 0.05-0.8 MPa
- Water volume in the tank 9 L
- Water connection from the back or top via G1/2" mounting holes
- Small flush factory setting: 3 L
- Large flush factory setting 6 L
- Small flush 2.5-3.5 L
- Large flush 6-9 L
- Max load: 400 kg

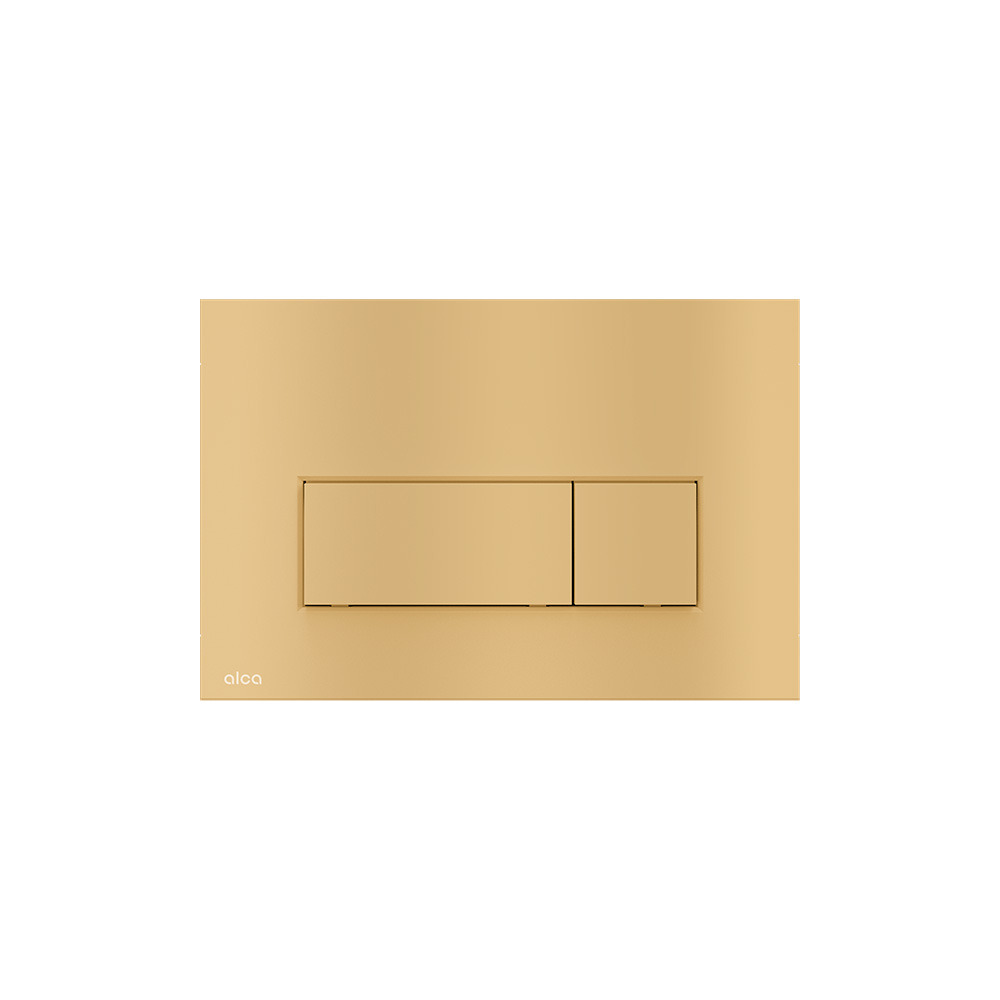

Alca Dual Flush Plate, Matt Gold (M57-G-M):
- Compatible with all Alcaplast installation systems and pre-wall tanks.
- Thanks to its thin 5.5 mm profile, this plate protrudes only slightly from the cladding.
- Dual flush
- Colour: Matt Gold
Product technical properties
- Toilet bowl brand:Vitra
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Swiss Aqua Technologies
- Type of frame:Standard
- Plate colour:Gold
- Bowl colour:Matt black
- Invisible fixings:Yes
