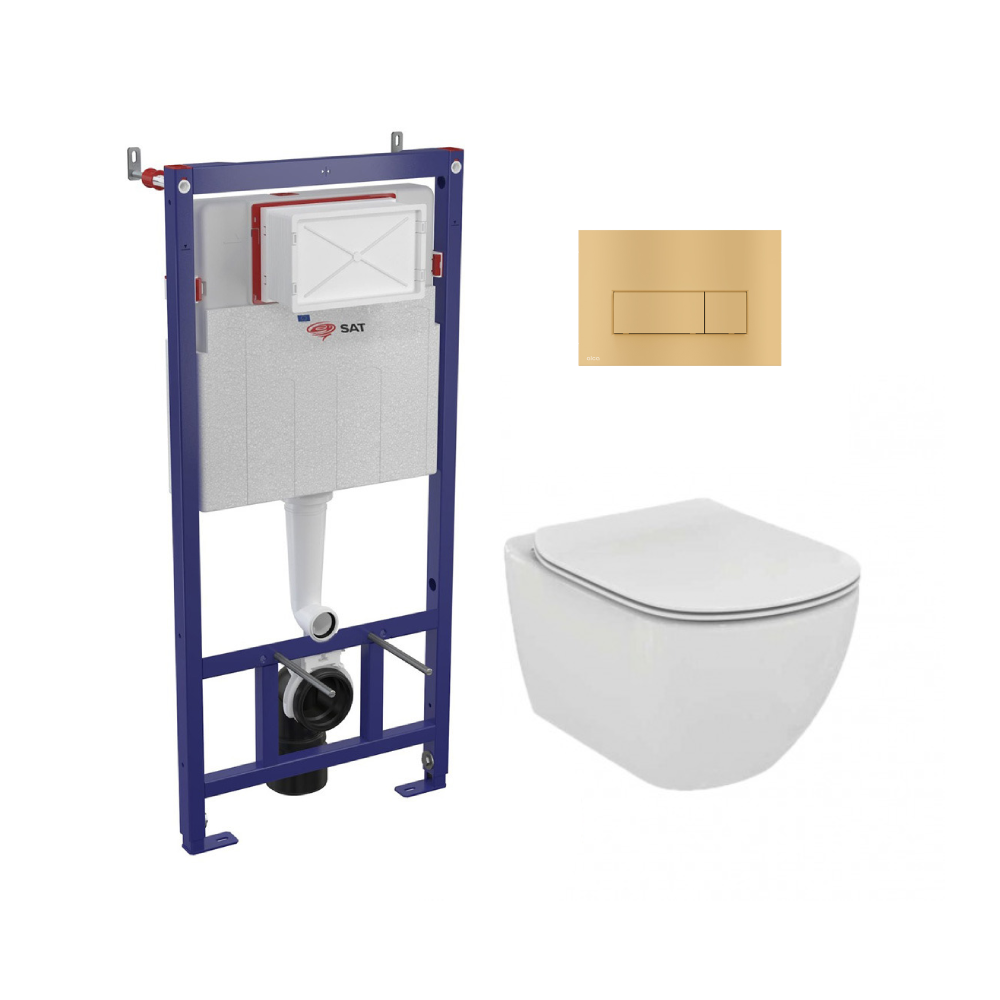

Swiss Aqua Technologies Toilet Pack Ideal Standard Tesi Rimless Toilet + SAT Support Frame + Gold Dual Flush Plate (SMARTK-Aqua-gold)

Features of Toilet Pack Ideal Standard Tesi Rimless Toilet + SAT Support Frame + Gold Dual Flush Plate (SMARTK-Aqua-gold) :

• Ideal Standard TESI - AquaBlade rimless toilet bowl + ultra-thin softclose seat (T354601)
• SAT Support Frame + Cistern 112 cm for wall-hung toilets (SATAMSK)
• Alca Dual Flush Plate, Matt Gold (M57-G-M)

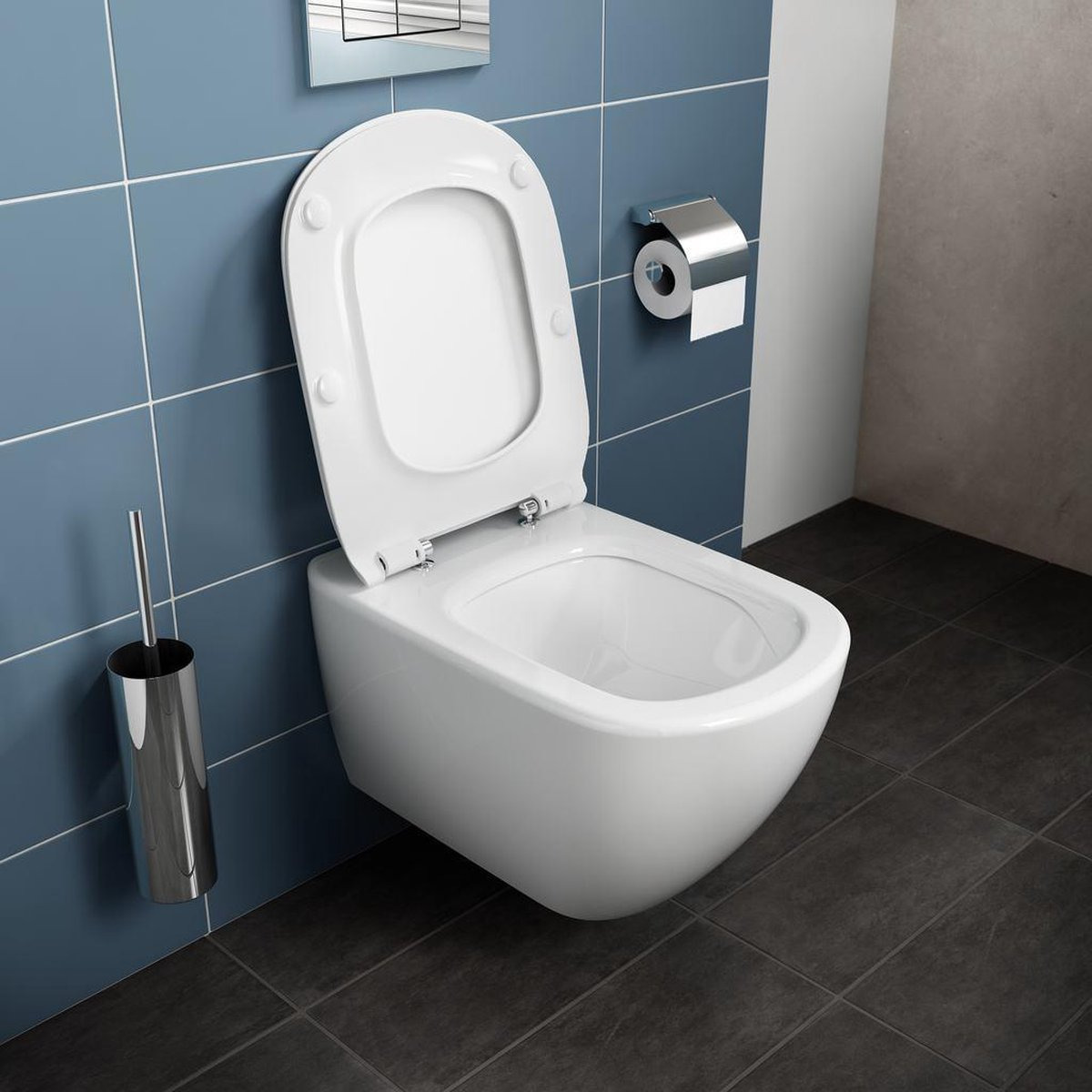

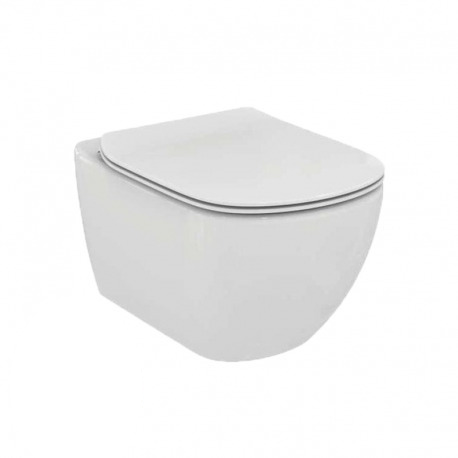

Ideal Standard TESI - AquaBlade rimless toilet bowl + ultra-thin softclose seat (T354601):

• Rimless sanitary vitrified porcelain toilet bowl
• Soft-close seat

• Dimensions (WxDxH): 365 x 535 x 355 mm
• Porcelain fired at 1270°, resistant to light and basic acids
• Porosity less than 0.1%,  breaking point between 500 and 600Kg/cm2
• Enamel (0.7mm thick) applied directly to the porcelain and fired at the same temperature, without engobe
• Enamel standard NF D14-503 (02/2012) concerning resistance to temperature variations at 60°c and to thermal shock cycles at 120°c, resistant to chemicals described in standard NF D14-508
• Wall-hung toilet with an elegant design without any protrusions
• Back wall width: 285 cm
• Rimless, fully enamelled bowl for easy cleaning
• Water flows through two open side channels and a central hole
• Bowl designed for efficient rinsing at 4/2 & 6/3 litres (class 2)
• Fixing centre distance: 180mm

• The bowl can withstand a load of 400 kg without deforming or loosening

• If fixed at 320 mm from the finished floor, the seat height without its cover will be 400mm, and the distance between the bottom of the bowl and the finished floor will be 60 mm

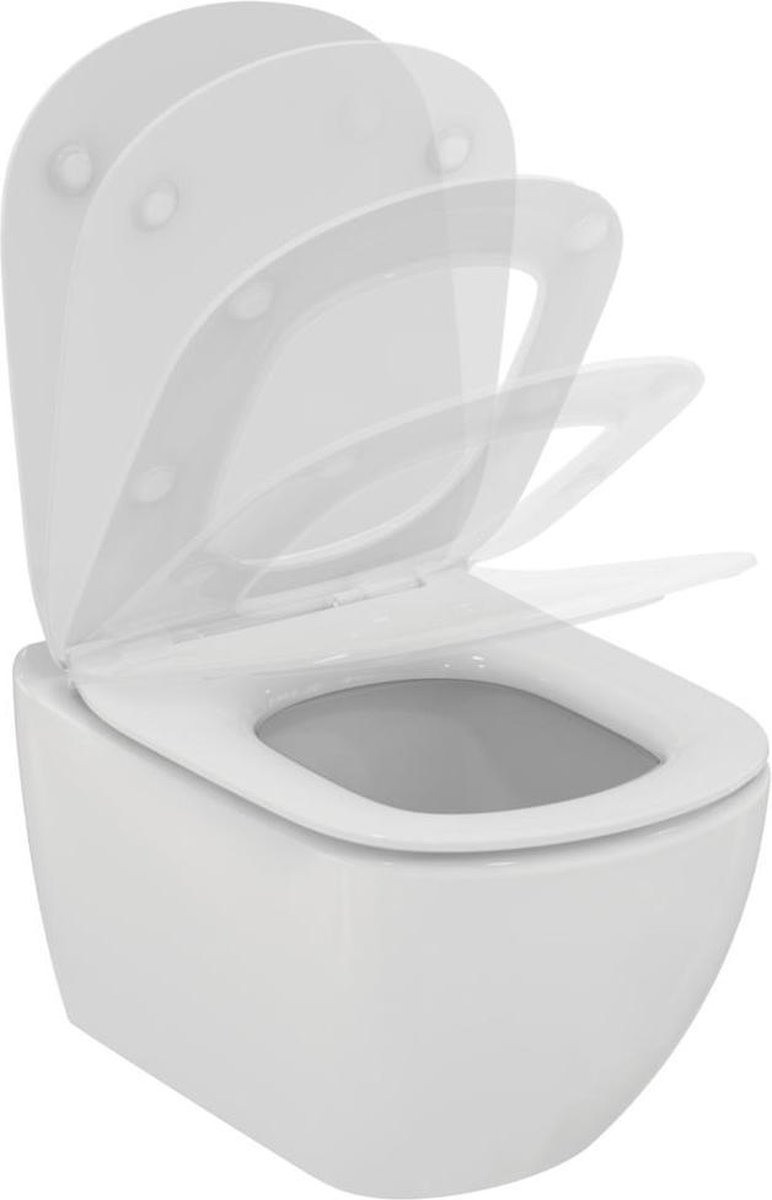

• Equipped with a special soft-close seat with a fall brake
• The manufacturer's name is clearly visible on the product
• Complies with the standards: EN 997 & EN 33

Soundproofing set SP 156SET not included. Not mandatory but strongly recommended.

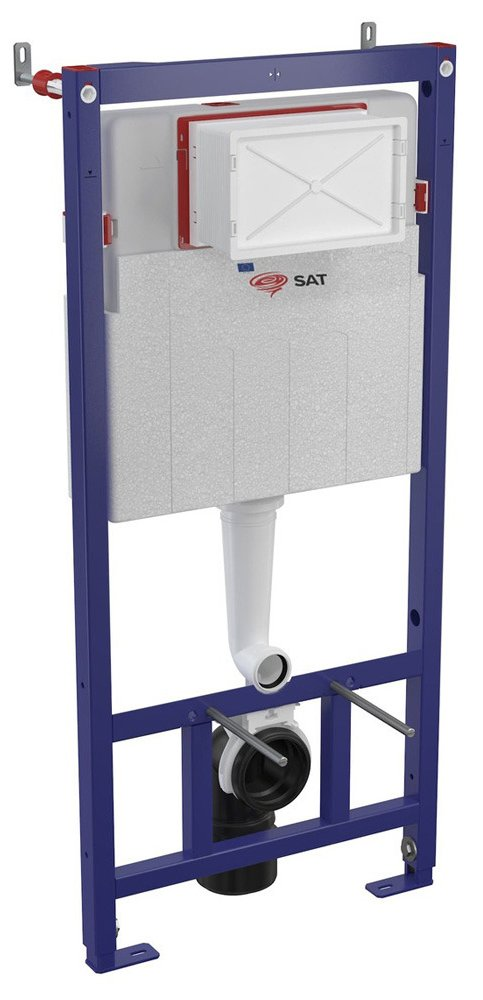

SAT Support Frame + Cistern 112 cm for wall-hung toilets (SATAMSK):

Use:

• For installation in front of a load-bearing wall or in plasterboard construction
• For the installation of a wall-hung toilet with a connection distance of 180 mm or 230 mm
• For floor constructions of 0 to 200 mm
• For wall-hung toilets

Features:

• Adjustable Dual Flush
• Compatible with all SAT control buttons
• Polystyrene insulation construction prevents condensation on the tank surface and dampens vibrations in the structure
• The service opening cover simplifies installation and prevents accumulation of moisture and dirt
• Adjustable anchoring feet and spring locking system, with a range of 0 to 200 mm
• Structural material: powder-coated metal
• Adjustable installation depth in the range of 20-95 mm
• Possibility of installing remote flushing or sensor flushing
• The tank is made in one piece, making it 100% watertight

Delivery Contents:

• Fixing kit for toilet bowl installation: M12 threaded rod - 2 pieces, washers - 4 pieces, cap - 2 pieces, nut - 2 pieces, thread protector - 2 pieces
• Fixing kit: Ø8×60 screws - 4 pcs., Ø12 plugs - 4 pcs
• 90/90 HT polyethylene drain elbow, PE-HD
• Two-part service opening cover, easily shortened
• Tank with filling and flushing valve
• 90/100 HT polyethylene waste reduction
• Set of plugs to protect connection holes during system installation
• Self-supporting frame connection
• 1/2" screw connection for water connection with integrated angle valve Schell 1/2"-3/8"
• Drainage gasket, PP connector, connector gasket
• Entry, exit PP gasket, packaging gasket

Technical details:

• Recommended water pressure range 0.3-0.5 MPa
• Functional water pressure range 0.05-0.8 MPa
• Water volume in the tank 9 L
• Water connection from the back or top via G1/2" mounting holes
• Small flush factory setting: 3 L
• Large flush factory setting 6 L
• Small flush 2.5-3.5 L
• Large flush 6-9 L
• Max load: 400 kg

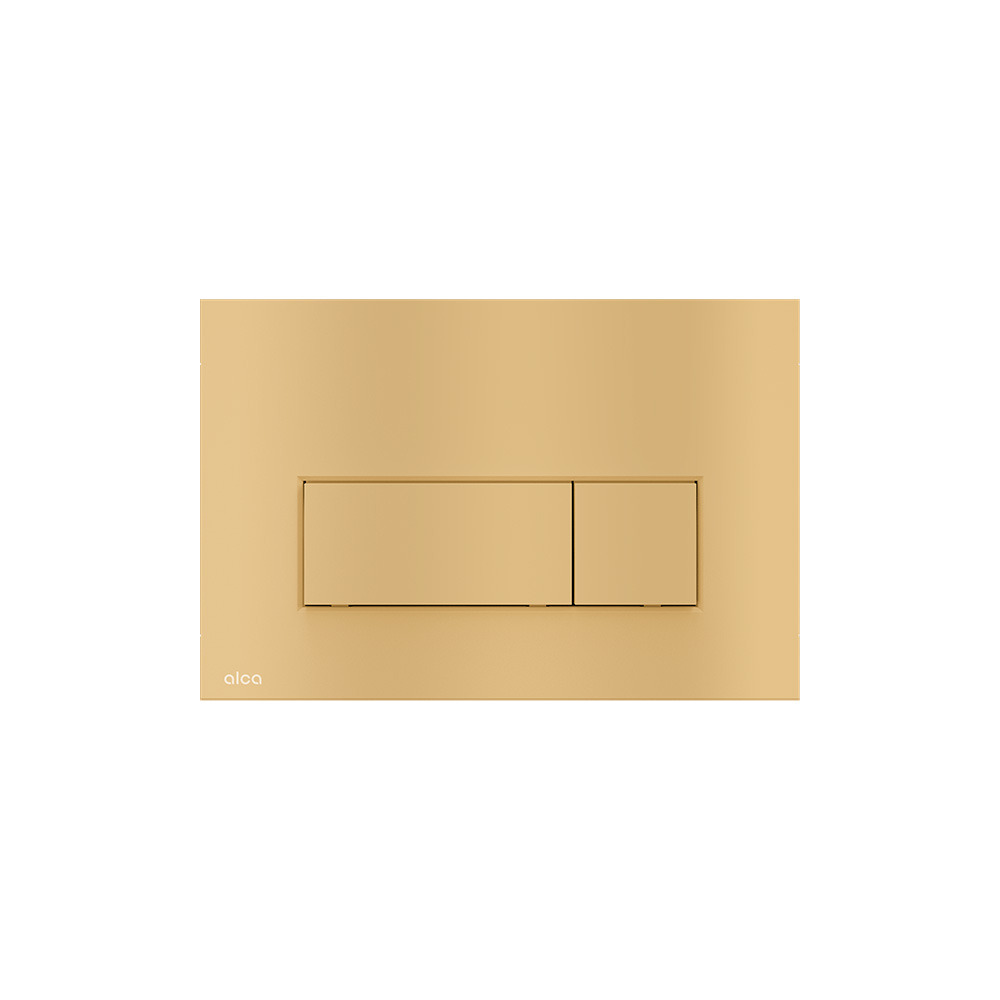

Alca Dual Flush Plate, Matt Gold (M57-G-M):

• Compatible with all Alcaplast installation systems and pre-wall tanks.
• Thanks to its thin 5.5 mm profile, this plate protrudes only slightly from the cladding.
• Dual flush
• Colour: Matt Gold
