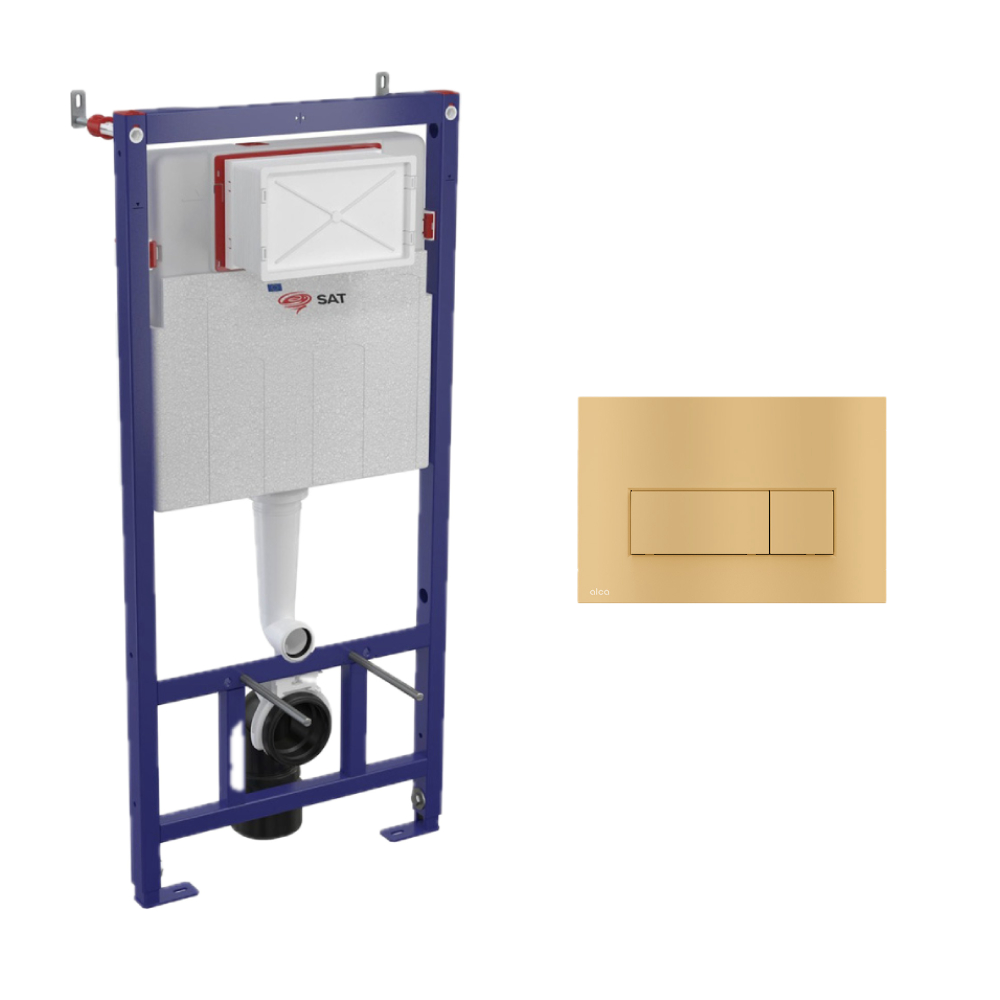

Swiss Aqua Technologies Pack SAT Toilet Support Frame with Cistern + Matt Gold Dual Flush Plate (SATAMSK-gold)

Features of Pack SAT Toilet Support Frame with Cistern + Alca Matt Gold Dual Flush Plate (SATAMSK-gold):

• SAT Support Frame + Cistern 112 cm for wall-hung toilets (SATAMSK)
• Alca Dual Flush Plate, Matt Gold (M57-G-M)

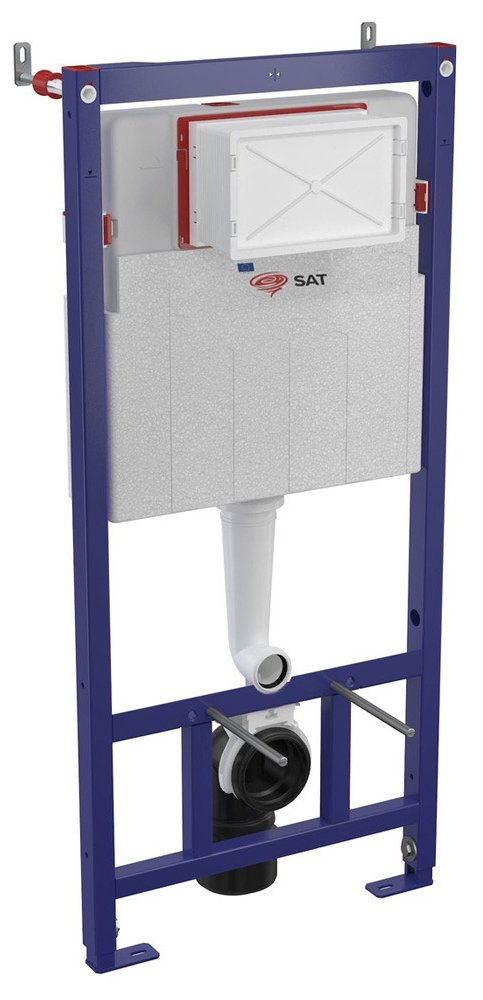

SAT Support Frame + Cistern 112 cm for wall-hung toilets (SATAMSK)

Use:

• For installation in front of a load-bearing wall or in plasterboard construction
• For the installation of a wall-hung toilet with a connection distance of 180 mm or 230 mm
• For floor constructions of 0 to 200 mm
• For wall-hung toilets

Features:

• Adjustable Dual Flush
• Compatible with all SAT control buttons
• Polystyrene insulation construction prevents condensation on the tank surface and dampens vibrations in the structure
• The service opening cover simplifies installation and prevents accumulation of moisture and dirt
• Adjustable anchoring feet and spring locking system, with a range of 0 to 200 mm
• Structural material: powder-coated metal
• Adjustable installation depth in the range of 20-95 mm
• Possibility of installing remote flushing or sensor flushing
• The tank is made in one piece, making it 100% watertight

Delivery Contents:

• Fixing kit for toilet bowl installation: M12 threaded rod - 2 pieces, washers - 4 pieces, cap - 2 pieces, nut - 2 pieces, thread protector - 2 pieces
• Fixing kit: Ø8×60 screws - 4 pcs., Ø12 plugs - 4 pcs
• 90/90 HT polyethylene drain elbow, PE-HD
• Two-part service opening cover, easily shortened
• Tank with filling and flushing valve
• 90/100 HT polyethylene waste reduction
• Set of plugs to protect connection holes during system installation
• Self-supporting frame connection
• 1/2" screw connection for water connection with integrated angle valve Schell 1/2"-3/8"
• Drainage gasket, PP connector, connector gasket
• Entry, exit PP gasket, packaging gasket

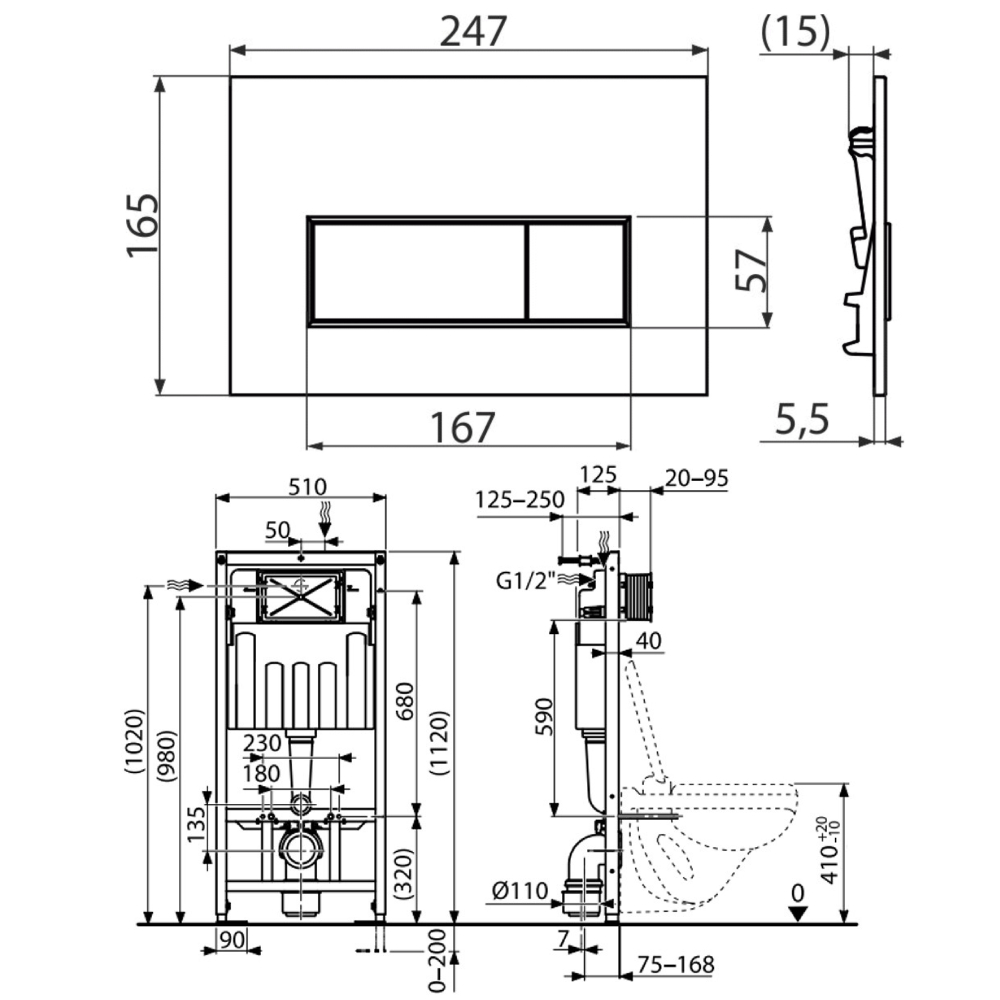

Technical details:

• Recommended water pressure range 0.3-0.5 MPa
• Functional water pressure range 0.05-0.8 MPa
• Water volume in the tank 9 L
• Water connection from the back or top via G1/2" mounting holes
• Small flush factory setting: 3 L
• Large flush factory setting 6 L
• Small flush 2.5-3.5 L
• Large flush 6-9 L
• Max load: 400 kg

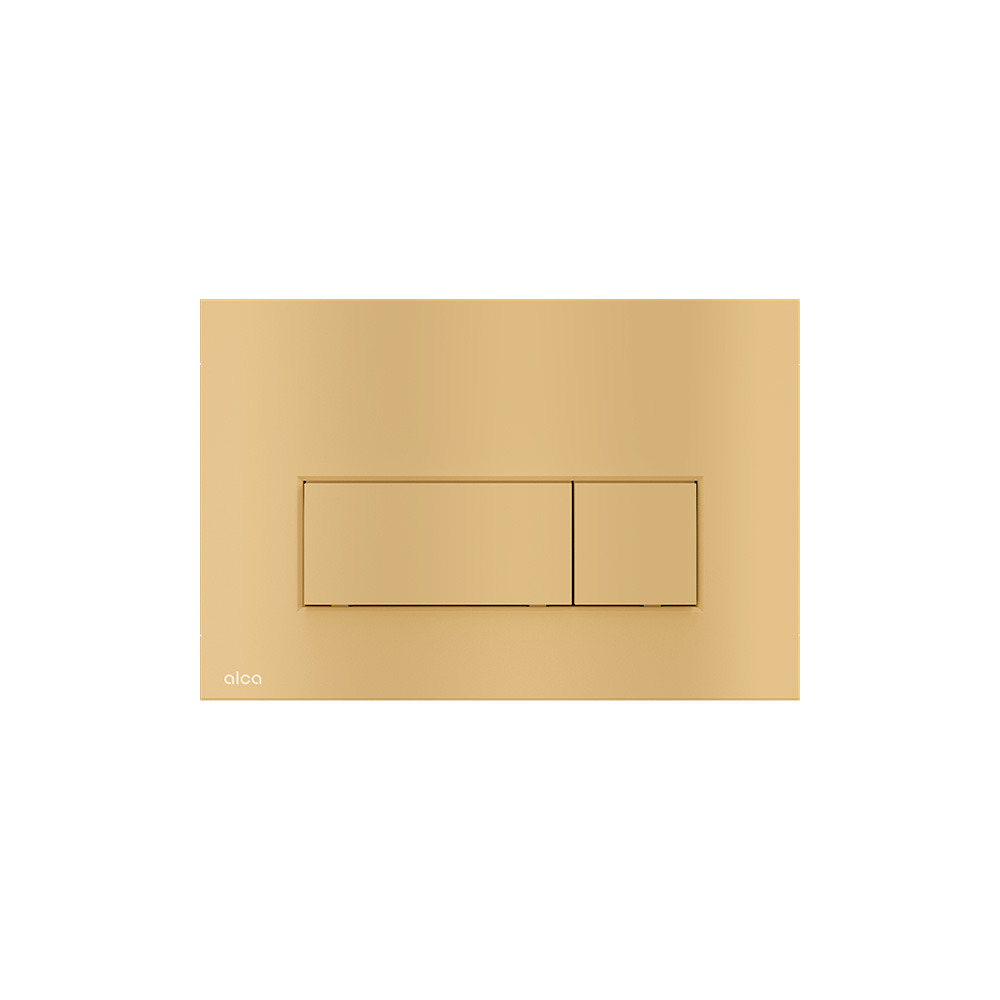

Alca Dual Flush Plate, Matt Gold (M57-G-M):

• Compatible with all Alcaplast installation systems and pre-wall tanks.
• Thanks to its thin 5.5 mm profile, this plate protrudes only slightly from the cladding.
• Dual flush
• Colour: Matt Gold
