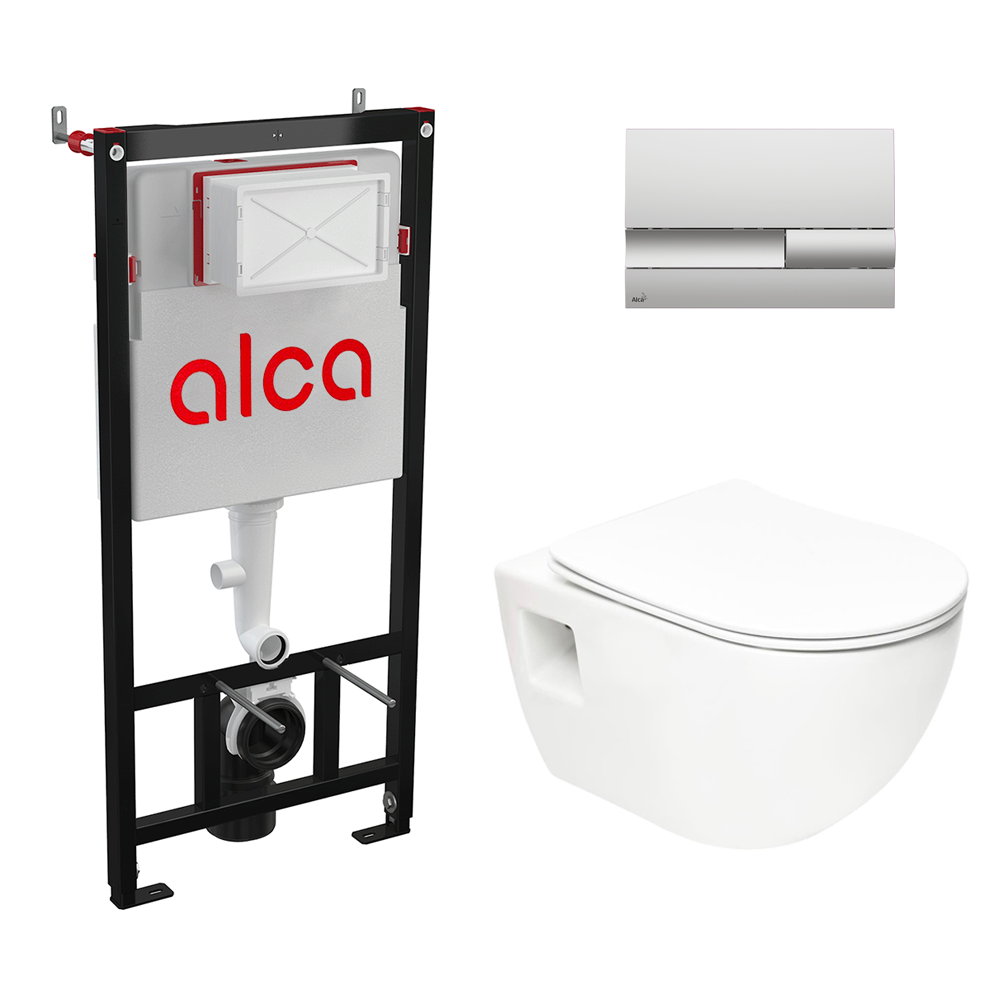

Alca Toilet Pack Frame + SAT Wall-Hung Rimless Toilet + Matt Chrome Flush Plate (Alca-Project-M1732)
- Product reference: Alca-Project-M1732
- EAN: 8592127182858
Brand:
Product warranty:
2
years
£
23450
TAX INCL.
£
40188
Retailed price
The recommended retail price (RPC) is a resale price recommended by a manufacturer to its distributors.
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
(
41.65%
saving)
Currently not in stock
Features of Alca Toilet Pack Frame + SAT Wall-Hung Rimless Toilet + Matt Chrome Flush Plate (Alca-Project-M1732):
- Swiss Aqua Technologies Project Wall-Hung Rimless Toilet with Soft-Close Seat, White (SATWCPRO010RREXP)
- Alca Support Frame for Wall-Hung Toilets + Cistern (AM101/1120)
- Alca Dual Flush Plate, Matt Chrome (M1732)
Product technical properties
- Toilet bowl brand:Swiss Aqua Technologies
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Alca
- Type of frame:Standard
- Plate colour:Matt chrome
- Bowl colour:White
- Invisible fixings:No

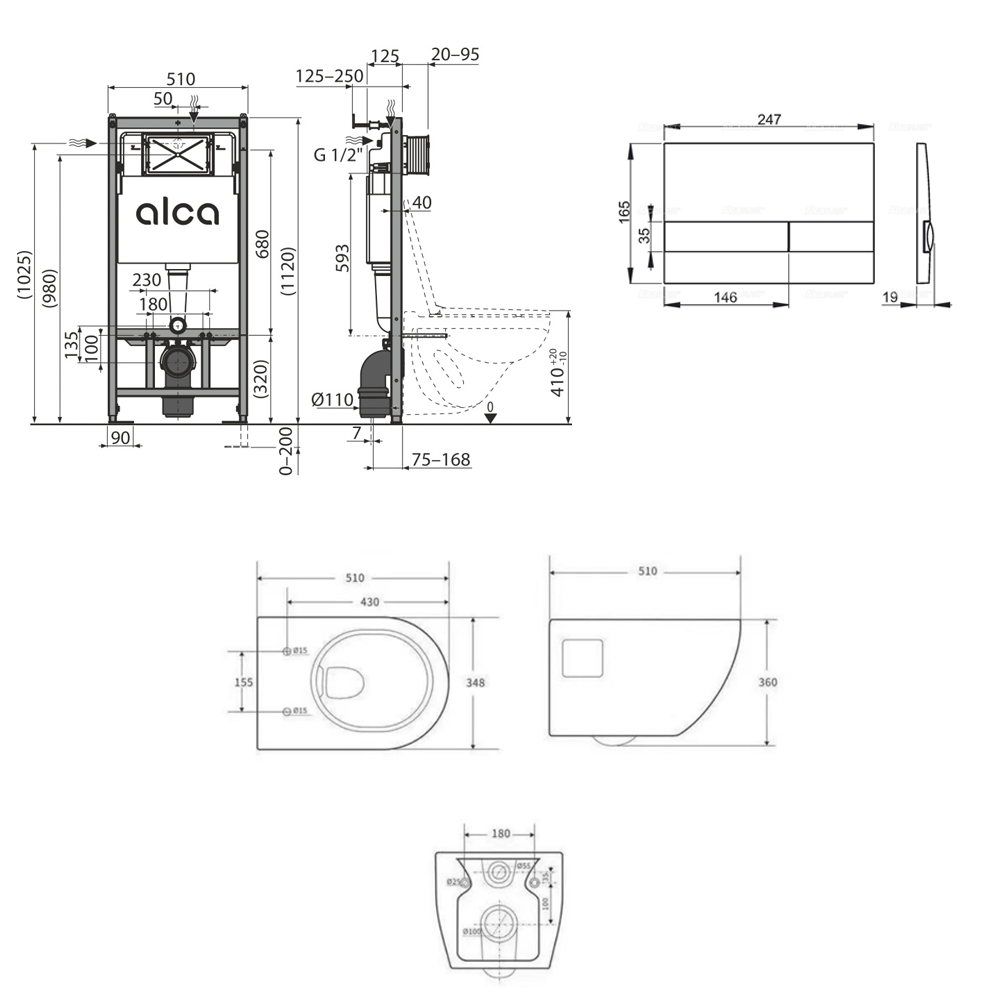

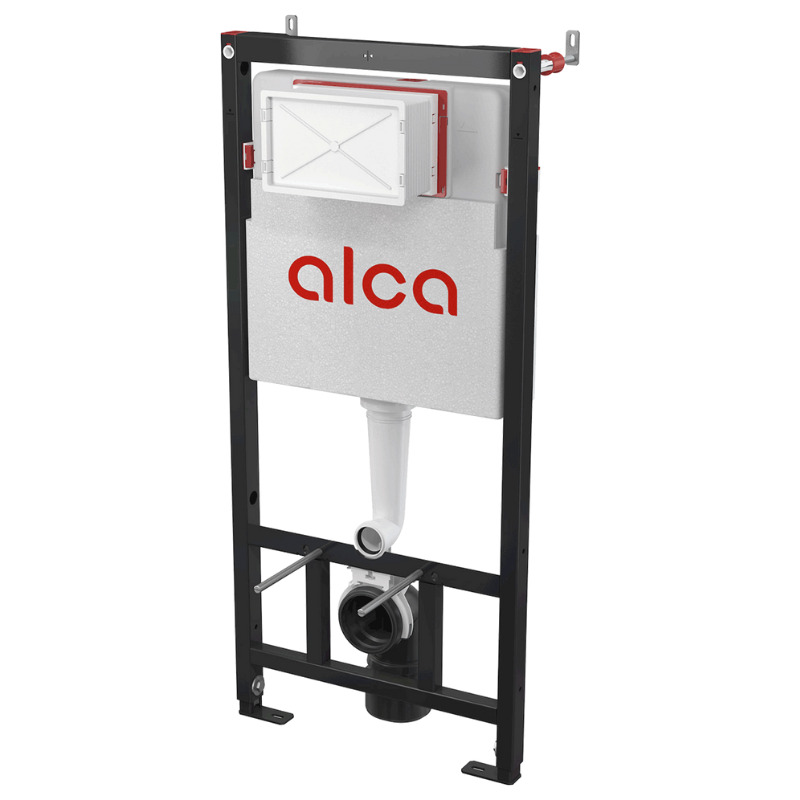

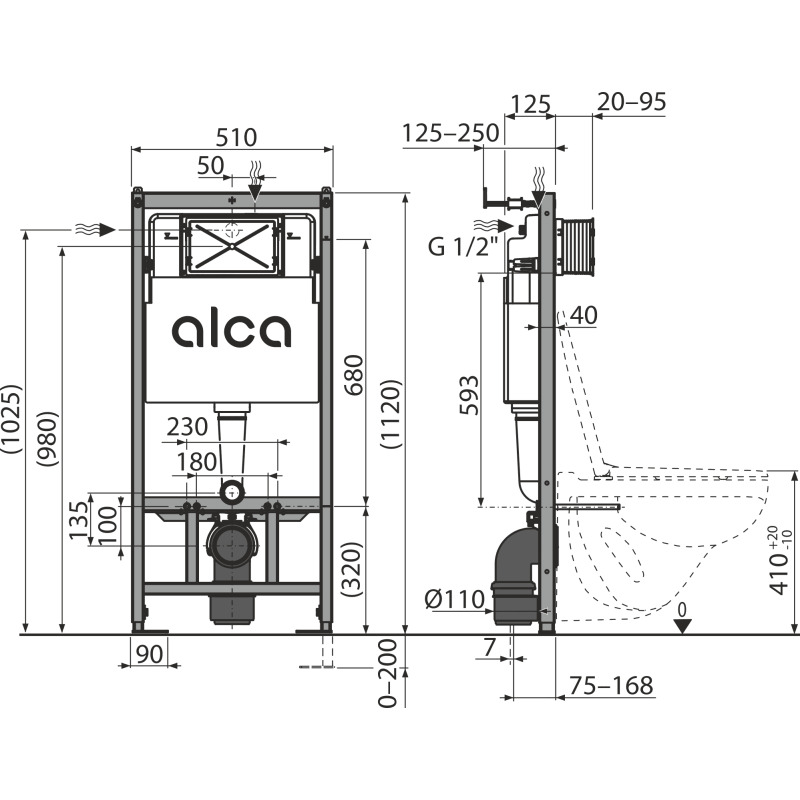

Alca Support Frame for Wall-Hung Toilets + Cistern (AM101/1120):
Technical Info:
- Water connection from the back or top via mounting holes: G1/2"
- Functional water pressure range: 0.05 – 1.6 MPa
- Recommended water pressure range: 0.3 – 0.5 MPa
- Large flush: 6 – 9 liters
- Small flush: 2.5 – 3.5 liters
- Factory setting for large flush: 6 liters
- Factory setting for small flush: 3 liters
- Hygienic reserve: 3 liters
- Water volume in the cistern: 9 liters
- Load test: 400 kilograms
Use:
- For wall-hung toilets
- For installation in front of a load-bearing wall or in a plasterboard construction
- For floor thickness from 0 to 200 mm
- For installation of wall-hung toilets with a connection pitch of 180 mm or 230 mm
Features:
- Toilet bowl tablets dispenser included
- Adjustable anchoring feet and spring locking system, with a range from 0 to 200 mm
- Visible marks for leveling and centerline
- Sliding rail support for waste connector, adjustable in eight positions between 0 and 93 mm
- Angle valve with the option to connect to the Mepla piping system
- The frame allows anchoring to a sufficiently sturdy plasterboard partition, in front of the load-bearing wall
- The installed module is covered with a plasterboard panel, and no additional fixing or anchoring elements are required
- The polystyrene insulation construction prevents condensation formation on the cistern surface and dampens cistern vibrations in the building structure
- Prepared for connecting a support with a DG 1/2" conversion for bidet seats and hand showers
- Bi-component material cistern hinges isolate from building vibration transmission
- Possibility to tilt the cistern for easy installation in wooden construction buildings or mobile cells
- Adjustable dual flush independently with hygienic reserve
- Suitable for remote or sensor-operated flush installation
- Compatible with all ALCA flush plates
- Maintenance work without any tools
- Water supply from the back/top
- The cistern is made in one piece, ensuring 100% tightness
- The service opening cover simplifies installation and prevents moisture and impurities penetration
- Adjustable installation depth from 20 to 95 mm
- Embedding depth 125 mm
- Frame material: powder-coated metal

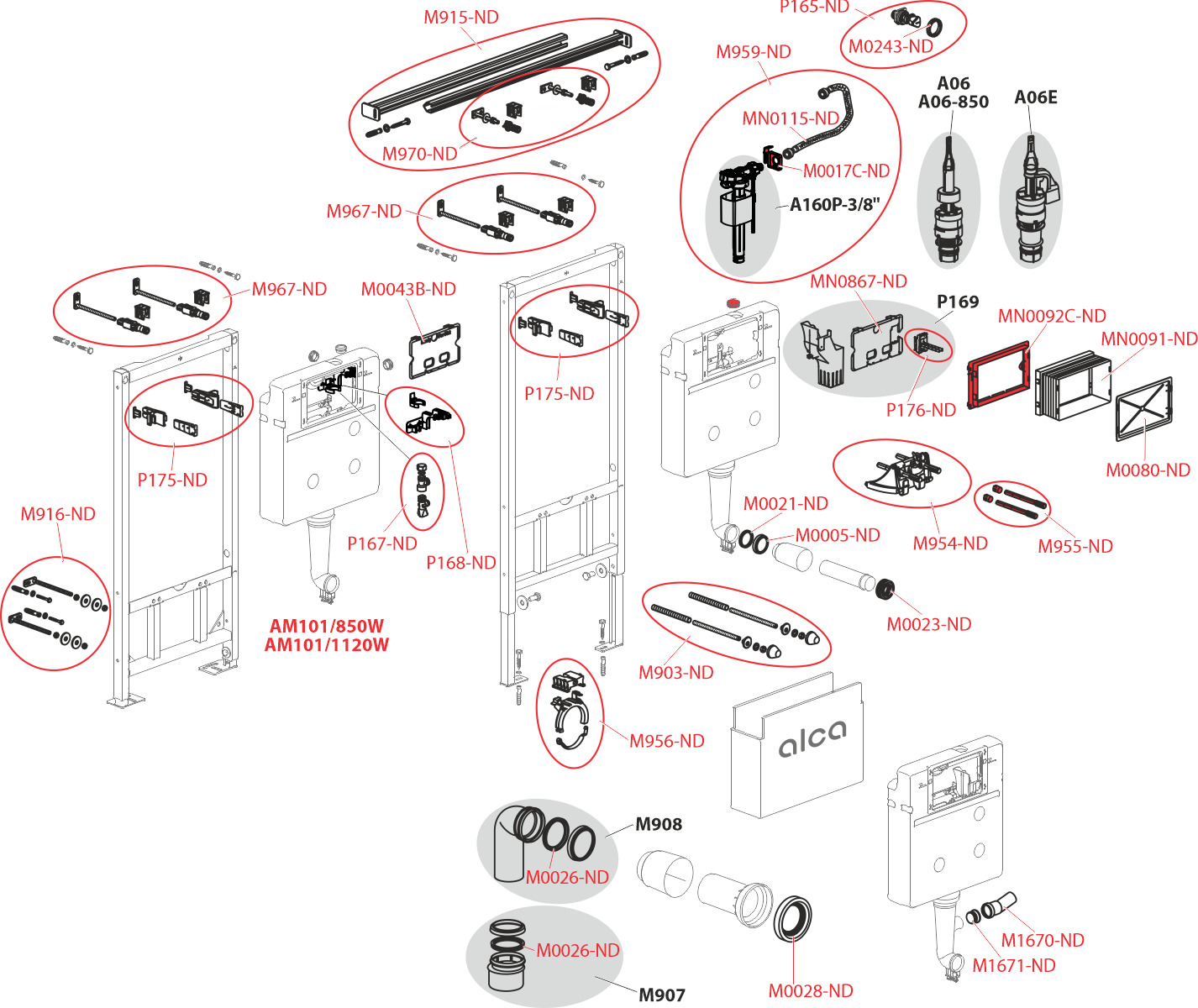

Delivery Contents:
- Cistern with filling and flush valve
- Self-supporting frame
- Water connection fitting 1/2" with integrated angle valve Schell 1/2–3/8"
- Mounting kit: screws Ø8×60 – 4 pcs, dowels Ø12 – 4 pcs
- Fixing material for toilet bowl installation: threaded rod M12 – 2 pcs, washers – 4 pcs, cover – 2 pcs, nut – 2 pcs, thread protector – 2 pcs
- Bent waste connector HT 90/90 polyethylene, PE-HD
- Waste reduction Polyethylene HT 90/110, PE-HD
- Inlet seal, outlet PP, packing seal
- Drain seal, PP connector, connector seal
- Set of caps to protect connection holes during system installation
- The two-part cover of the service opening is easily adjustable
- Kit for inserting toilet tablets

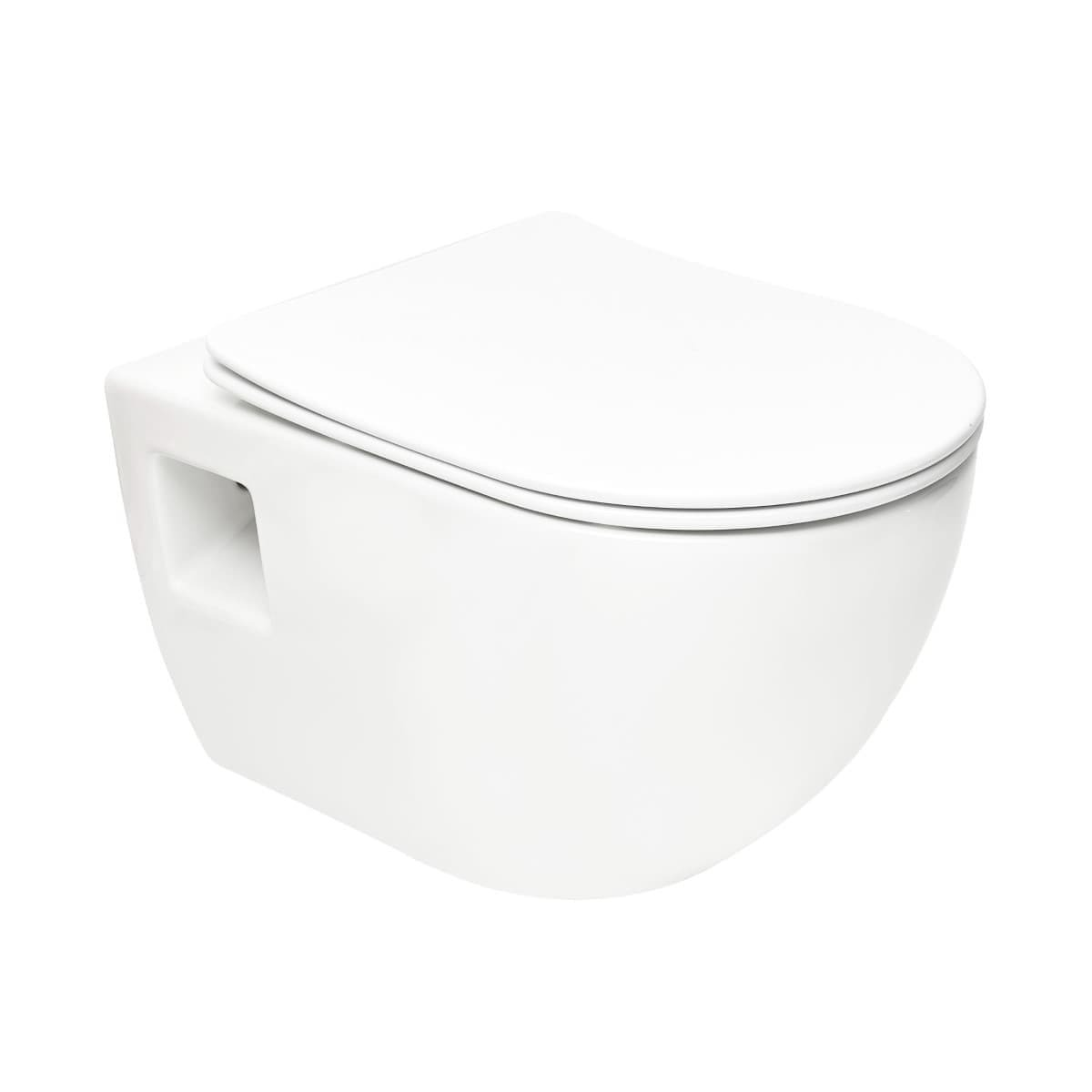

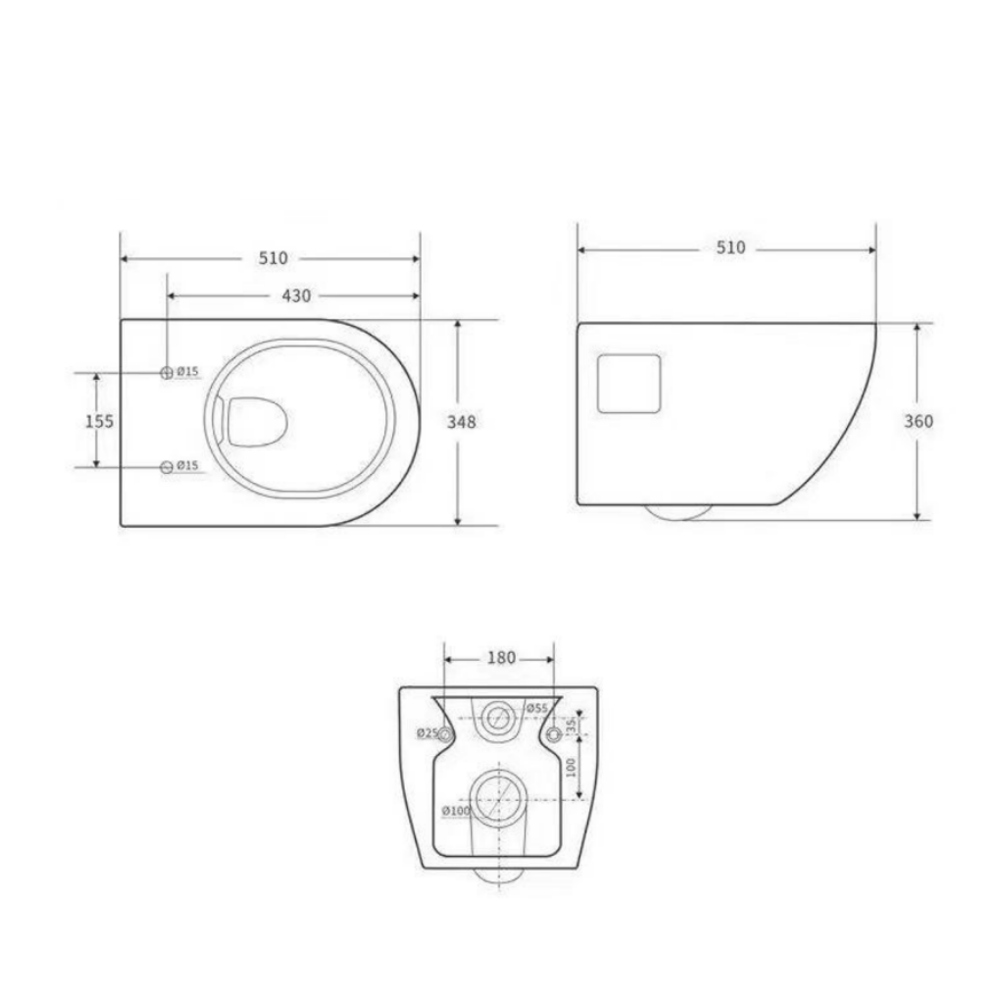

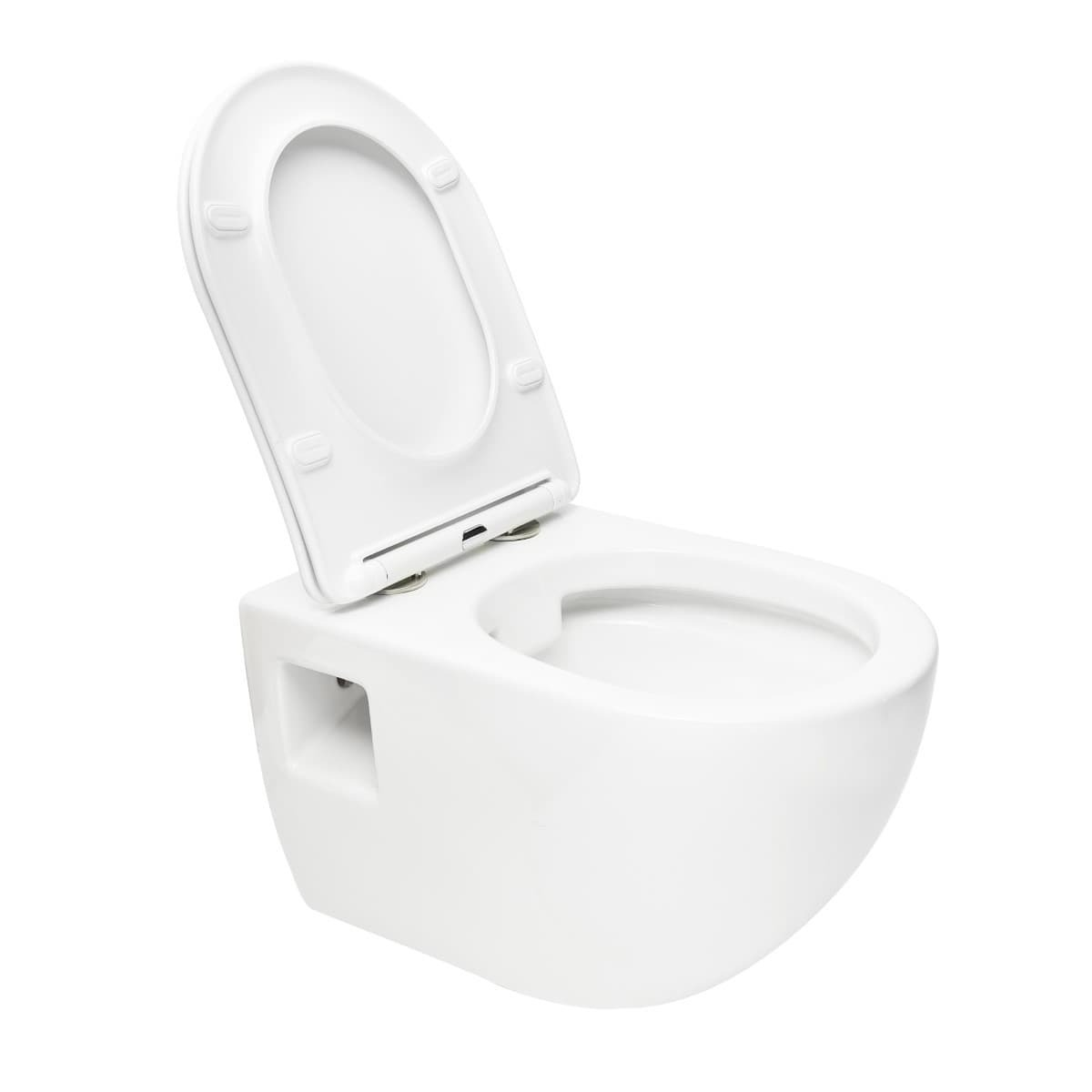

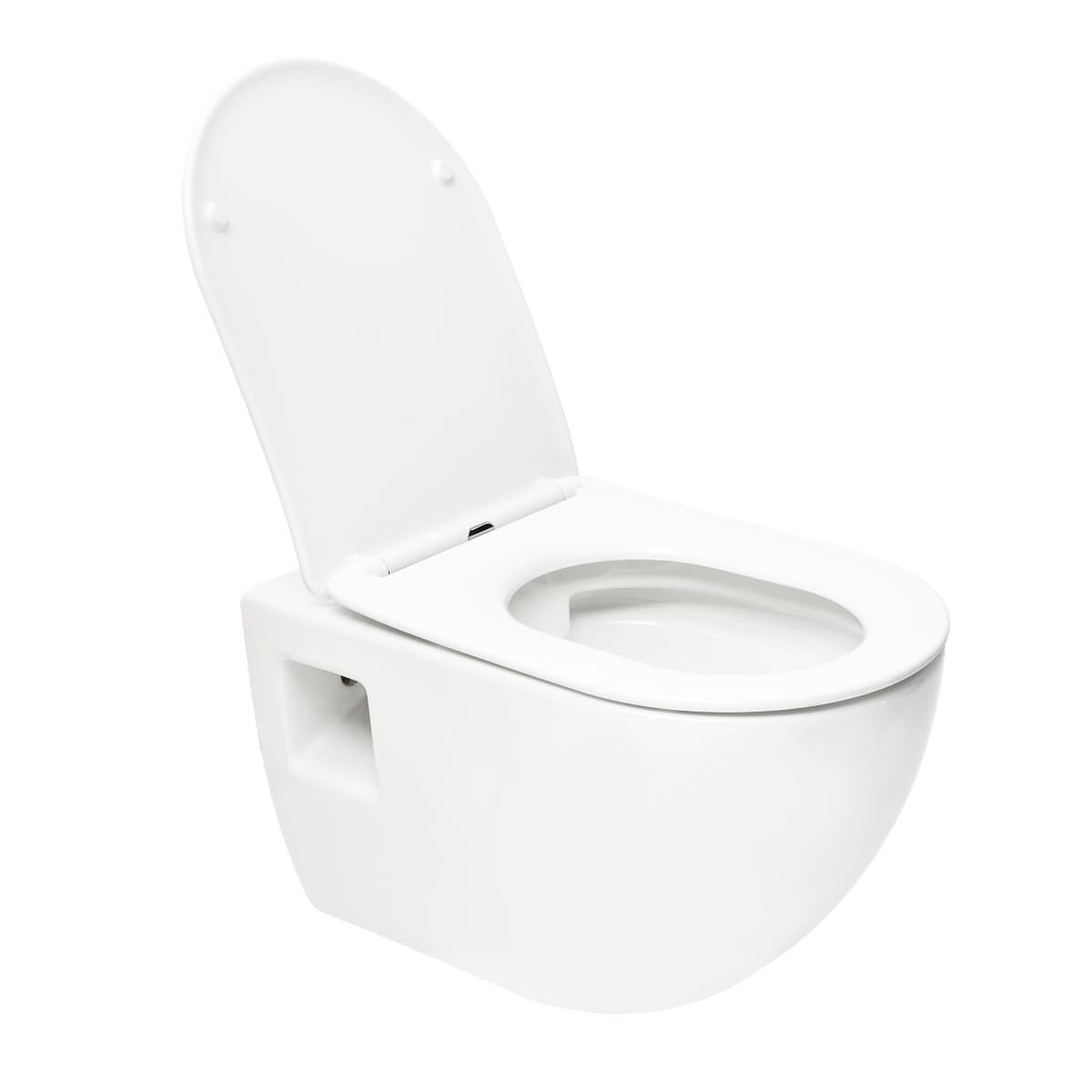

SAT Project Wall-Hung Rimless Toilet with Soft-Close Seat, White (SATWCPRO010RREXP):
- Wall-hung
- Rimless
- 3/5 Litre Flush
- Width: 34.8 cm
- Height: 36 cm
- Depth: 51 cm
- Removable Soft-Close Seat makes cleaning easier

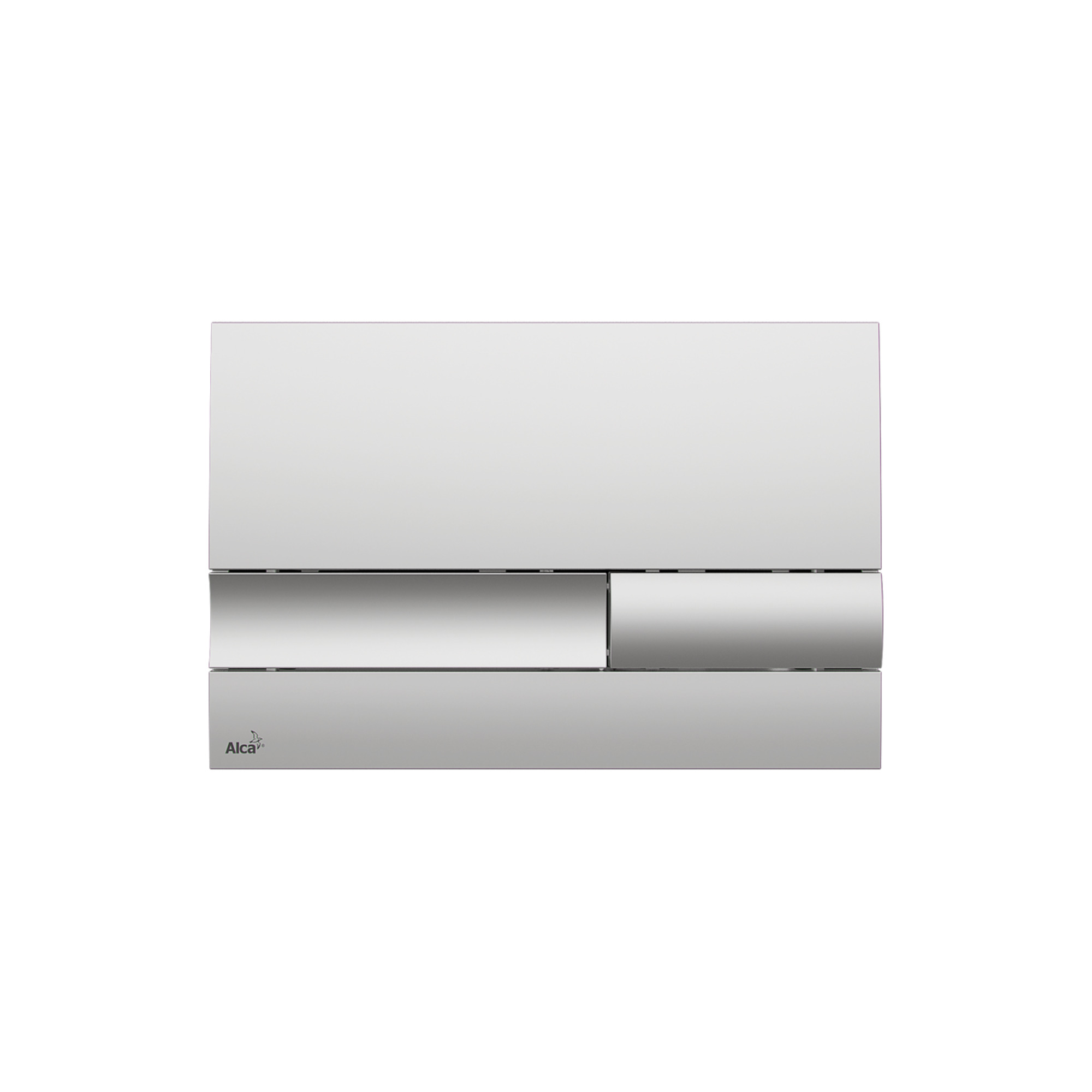

Alca Dual Flush Plate, Matt Chrome (M1732):
- Compatible with all Alca cisterns
- Dual flush system
- Dimensions: 250 × 36 x 170 mm
- Colour: Matt Chrome
- Material: Plastic
