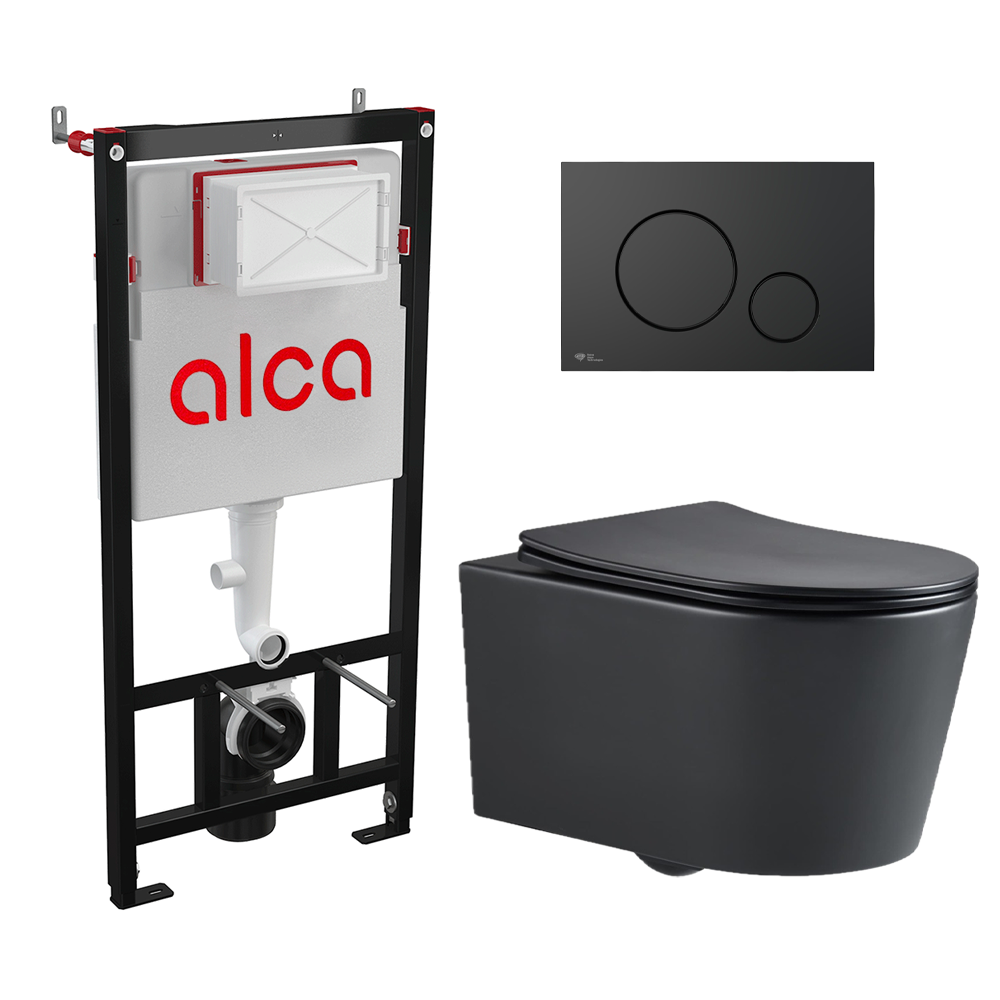

Alca Toilet Pack Frame + SAT Black Rimless Toilet + Matt Black Flush Plate (Alca-BlackSAT-SATAT68)
- Product reference: Alca-BlackSAT-SATAT68
- EAN: 8592127182926
Brand:
Product warranty:
2
years
£
31450
TAX INCL.
£
43841
Retailed price
The recommended retail price (RPC) is a resale price recommended by a manufacturer to its distributors.
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
(
28.26%
saving)
Only 2 left In stock
Shipped before
the 3 December
Quantity:
Features of Alca Toilet Pack Frame + SAT Black Rimless Toilet + Matt Black Flush Plate (Alca-BlackSAT-SATAT68):
- Swiss Aqua Technologies Rimless Wall-Hung Toilet with invisible fixings + Soft-Close Seat, Black (BlackSATrimless)
- Alca Support Frame for Wall-Hung Toilets + Cistern (AM101/1120)
- Swiss Aqua Technologies Dual Flush Plate, Matt Black (M570)

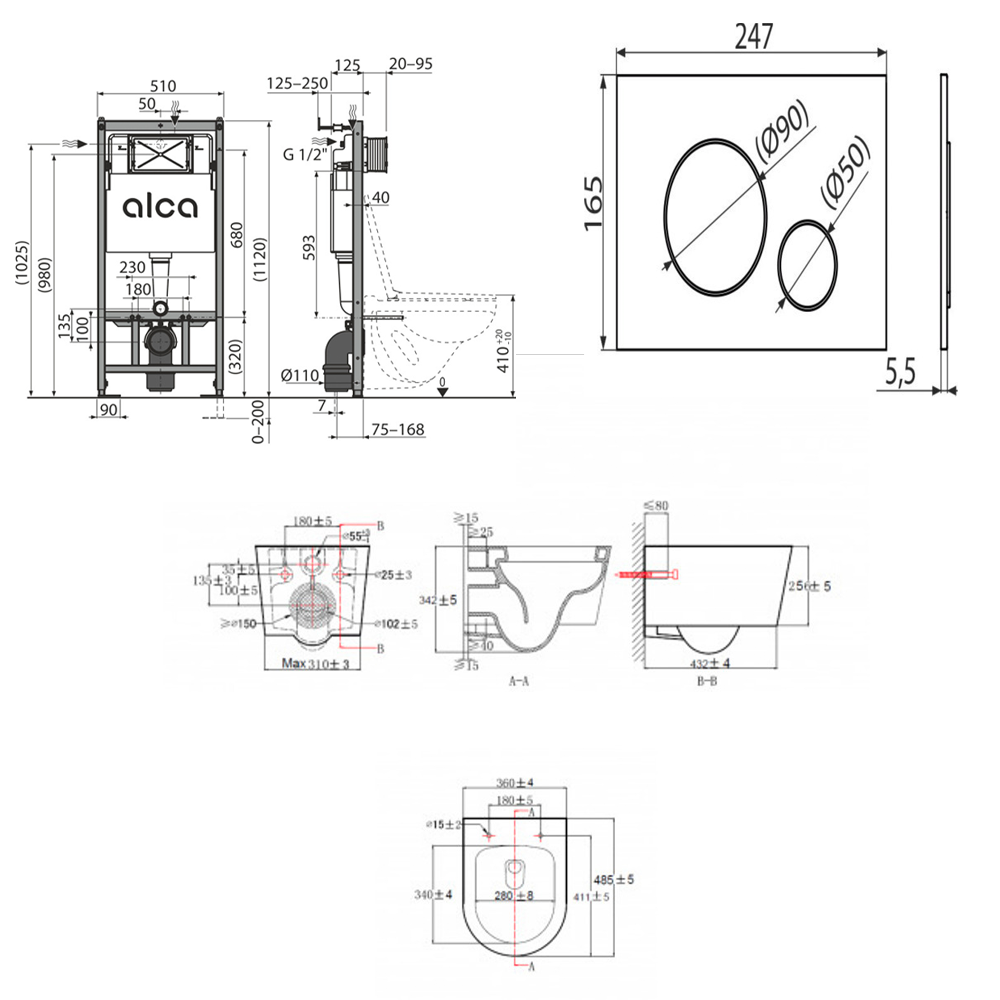

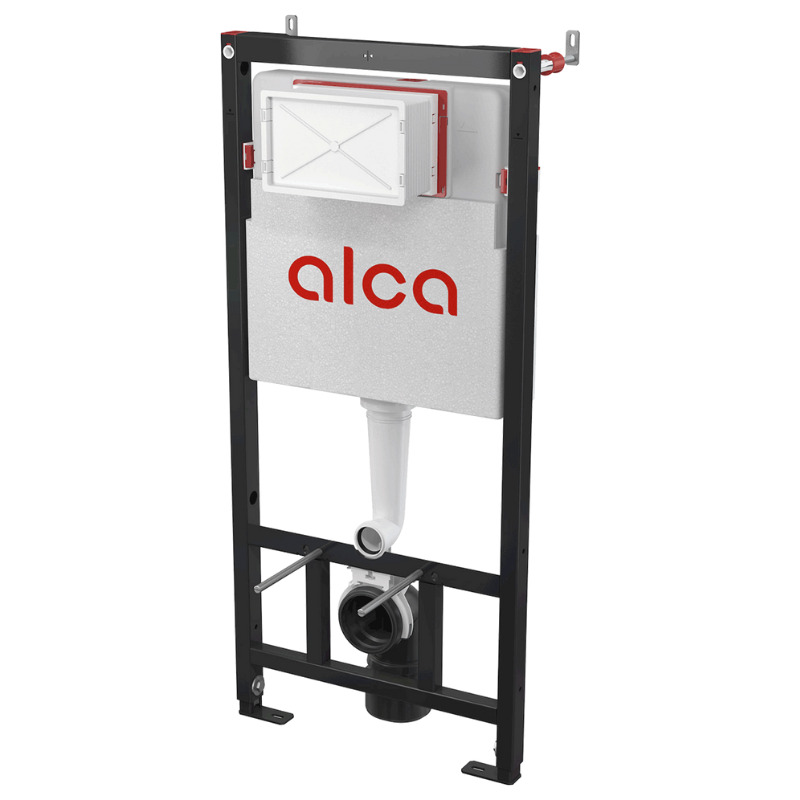

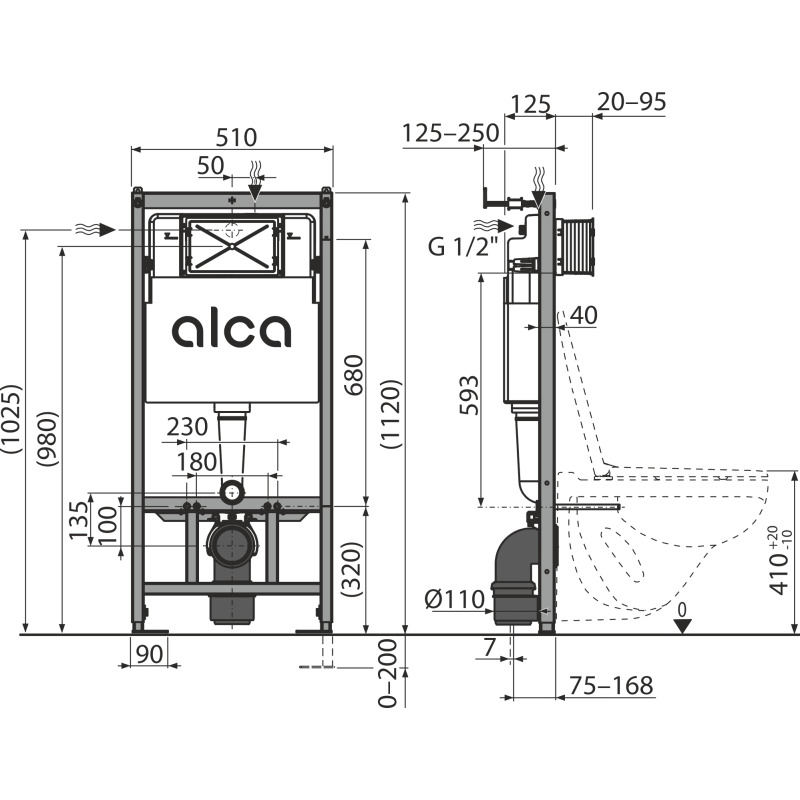

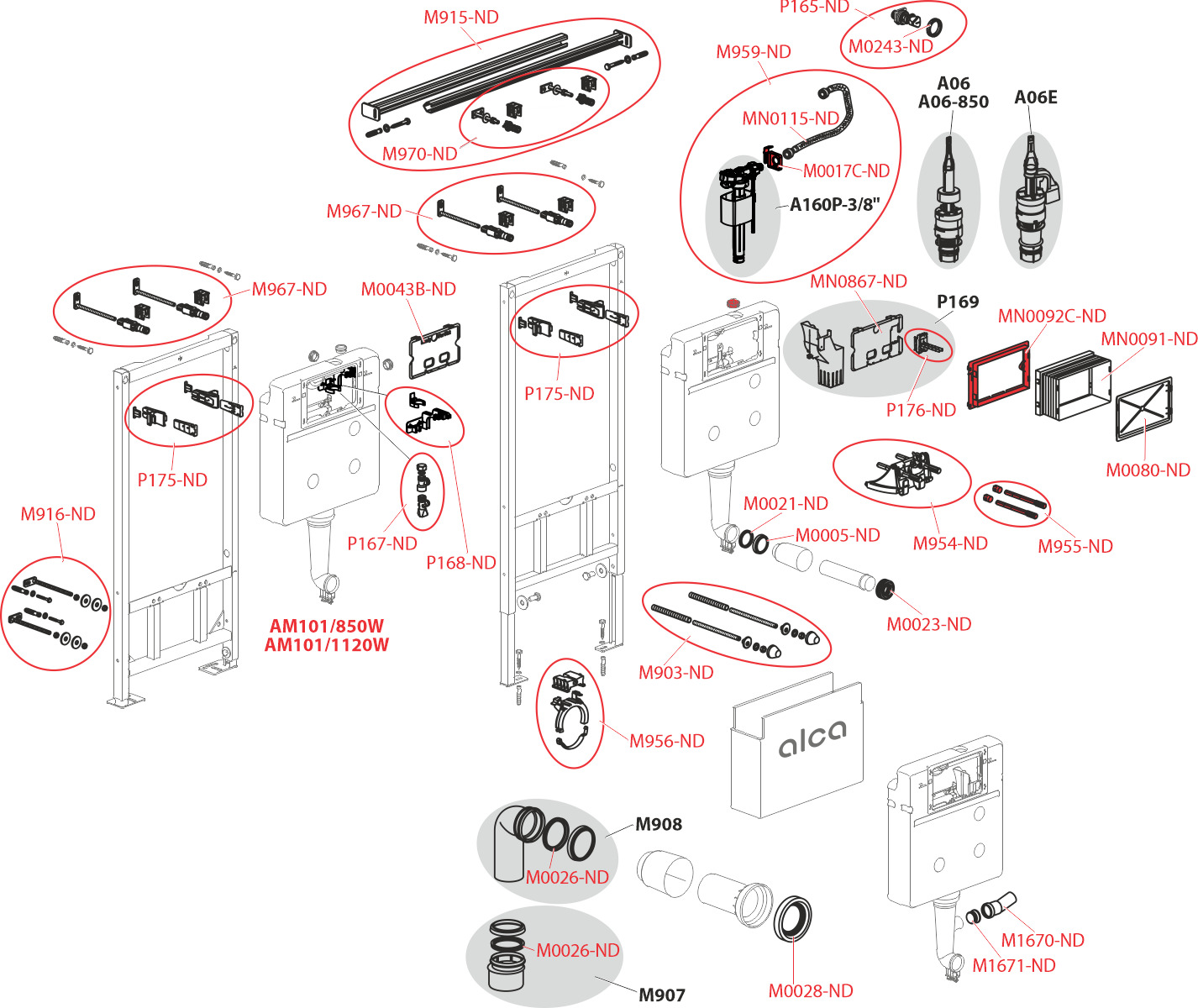

Alca Support Frame for Wall-Hung Toilets + Cistern (AM101/1120):
Technical Info:
- Water connection from the back or top via mounting holes: G1/2"
- Functional water pressure range: 0.05 – 1.6 MPa
- Recommended water pressure range: 0.3 – 0.5 MPa
- Large flush: 6 – 9 liters
- Small flush: 2.5 – 3.5 liters
- Factory setting for large flush: 6 liters
- Factory setting for small flush: 3 liters
- Hygienic reserve: 3 liters
- Water volume in the cistern: 9 liters
- Load test: 400 kilograms
Use:
- For wall-hung toilets
- For installation in front of a load-bearing wall or in a plasterboard construction
- For floor thickness from 0 to 200 mm
- For installation of wall-hung toilets with a connection pitch of 180 mm or 230 mm
Features:
- Toilet bowl tablets dispenser included
- Adjustable anchoring feet and spring locking system, with a range from 0 to 200 mm
- Visible marks for leveling and centerline
- Sliding rail support for waste connector, adjustable in eight positions between 0 and 93 mm
- Angle valve with the option to connect to the Mepla piping system
- The frame allows anchoring to a sufficiently sturdy plasterboard partition, in front of the load-bearing wall
- The installed module is covered with a plasterboard panel, and no additional fixing or anchoring elements are required
- The polystyrene insulation construction prevents condensation formation on the cistern surface and dampens cistern vibrations in the building structure
- Prepared for connecting a support with a DG 1/2" conversion for bidet seats and hand showers
- Bi-component material cistern hinges isolate from building vibration transmission
- Possibility to tilt the cistern for easy installation in wooden construction buildings or mobile cells
- Adjustable dual flush independently with hygienic reserve
- Suitable for remote or sensor-operated flush installation
- Compatible with all ALCA flush plates
- Maintenance work without any tools
- Water supply from the back/top
- The cistern is made in one piece, ensuring 100% tightness
- The service opening cover simplifies installation and prevents moisture and impurities penetration
- Adjustable installation depth from 20 to 95 mm
- Embedding depth 125 mm
- Frame material: powder-coated metal
Delivery Contents:
- Cistern with filling and flush valve
- Self-supporting frame
- Water connection fitting 1/2" with integrated angle valve Schell 1/2–3/8"
- Mounting kit: screws Ø8×60 – 4 pcs, dowels Ø12 – 4 pcs
- Fixing material for toilet bowl installation: threaded rod M12 – 2 pcs, washers – 4 pcs, cover – 2 pcs, nut – 2 pcs, thread protector – 2 pcs
- Bent waste connector HT 90/90 polyethylene, PE-HD
- Waste reduction Polyethylene HT 90/110, PE-HD
- Inlet seal, outlet PP, packing seal
- Drain seal, PP connector, connector seal
- Set of caps to protect connection holes during system installation
- The two-part cover of the service opening is easily adjustable
- Kit for inserting toilet tablets

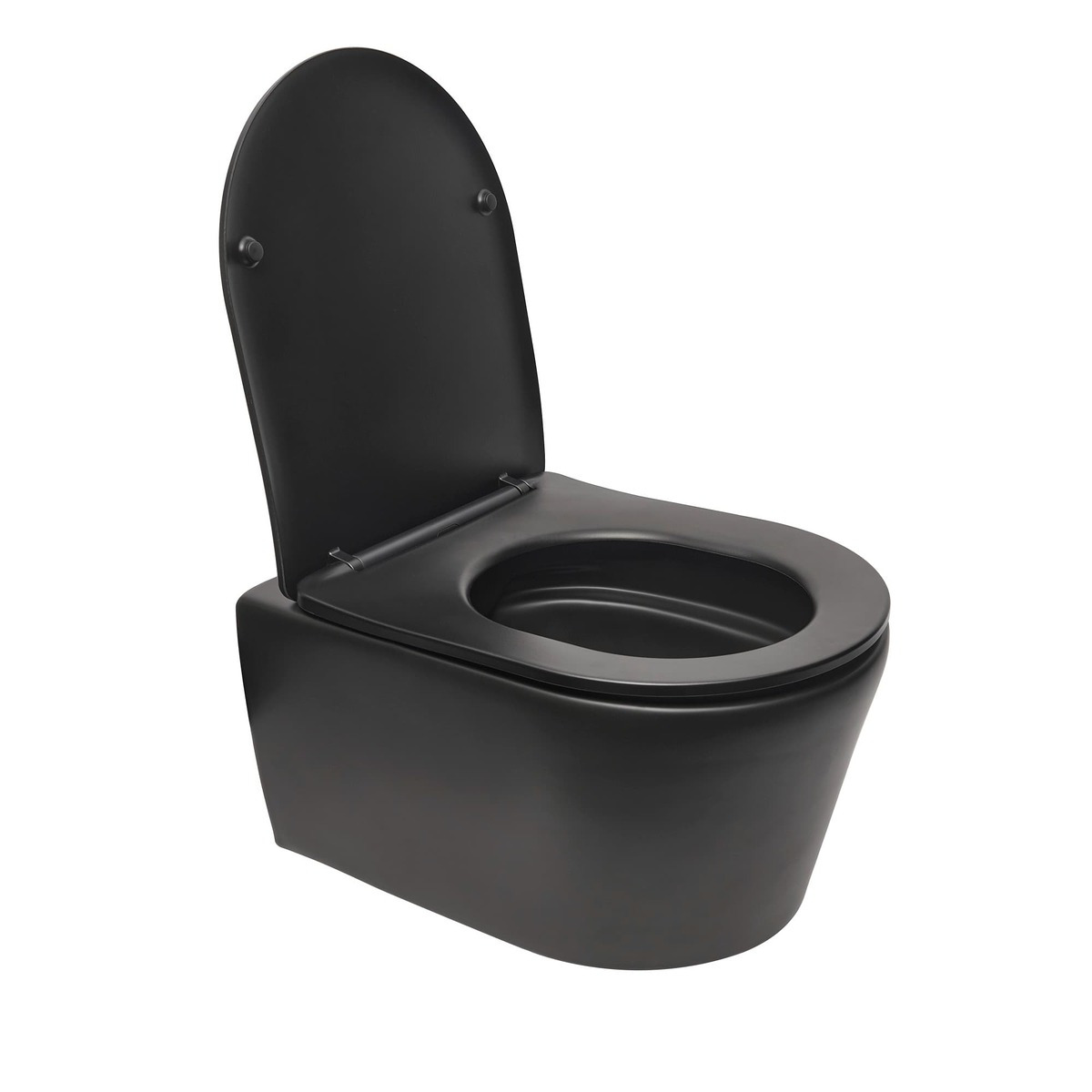

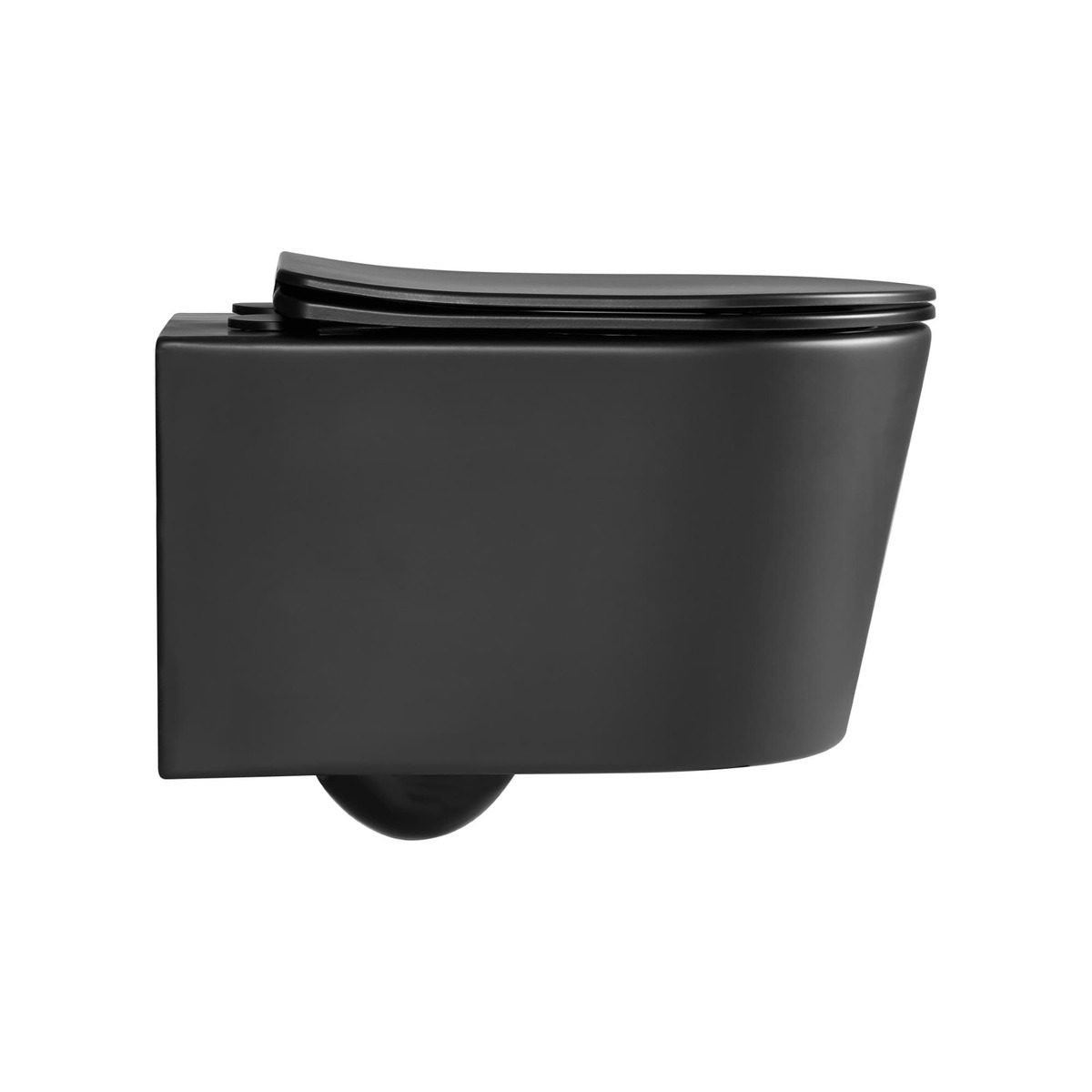

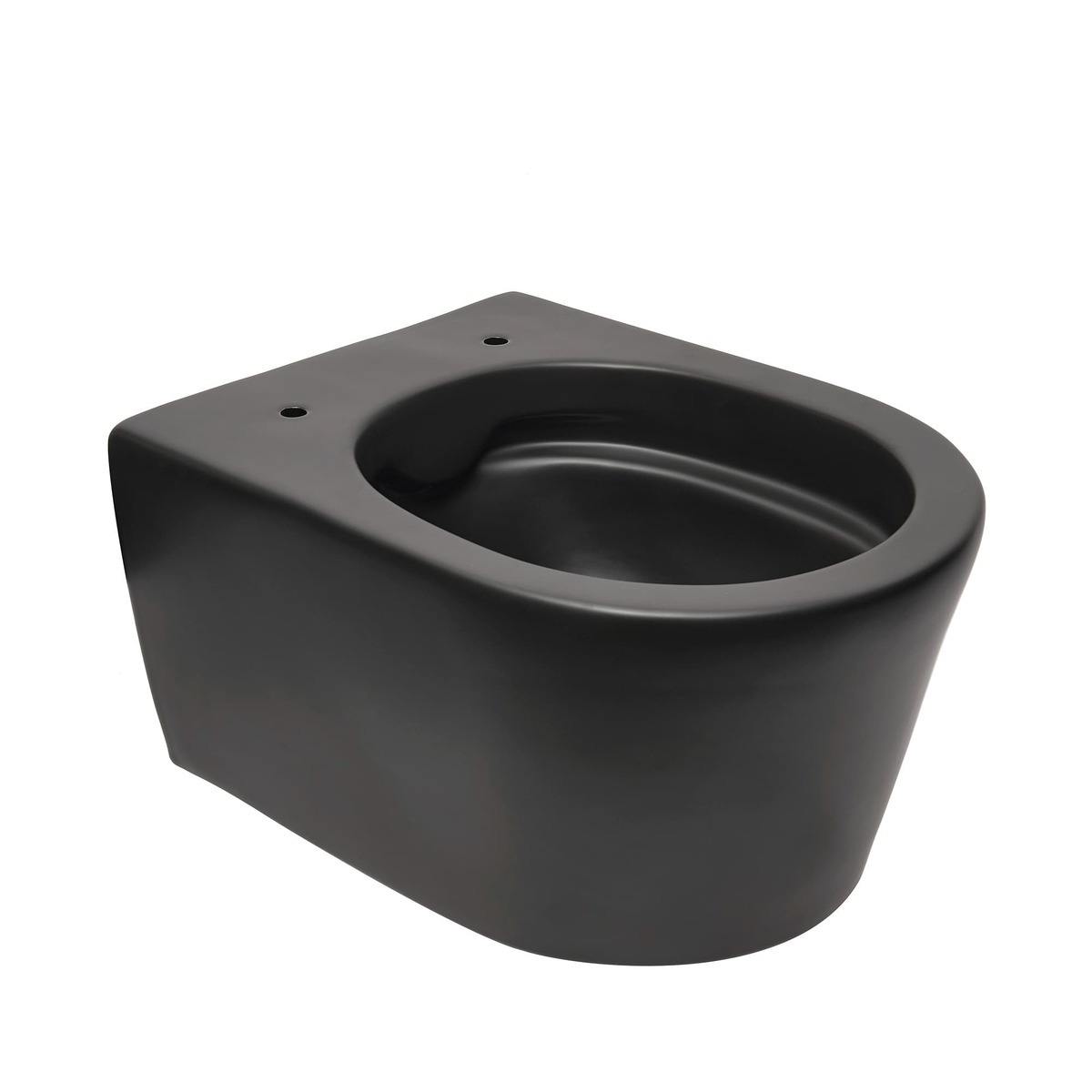

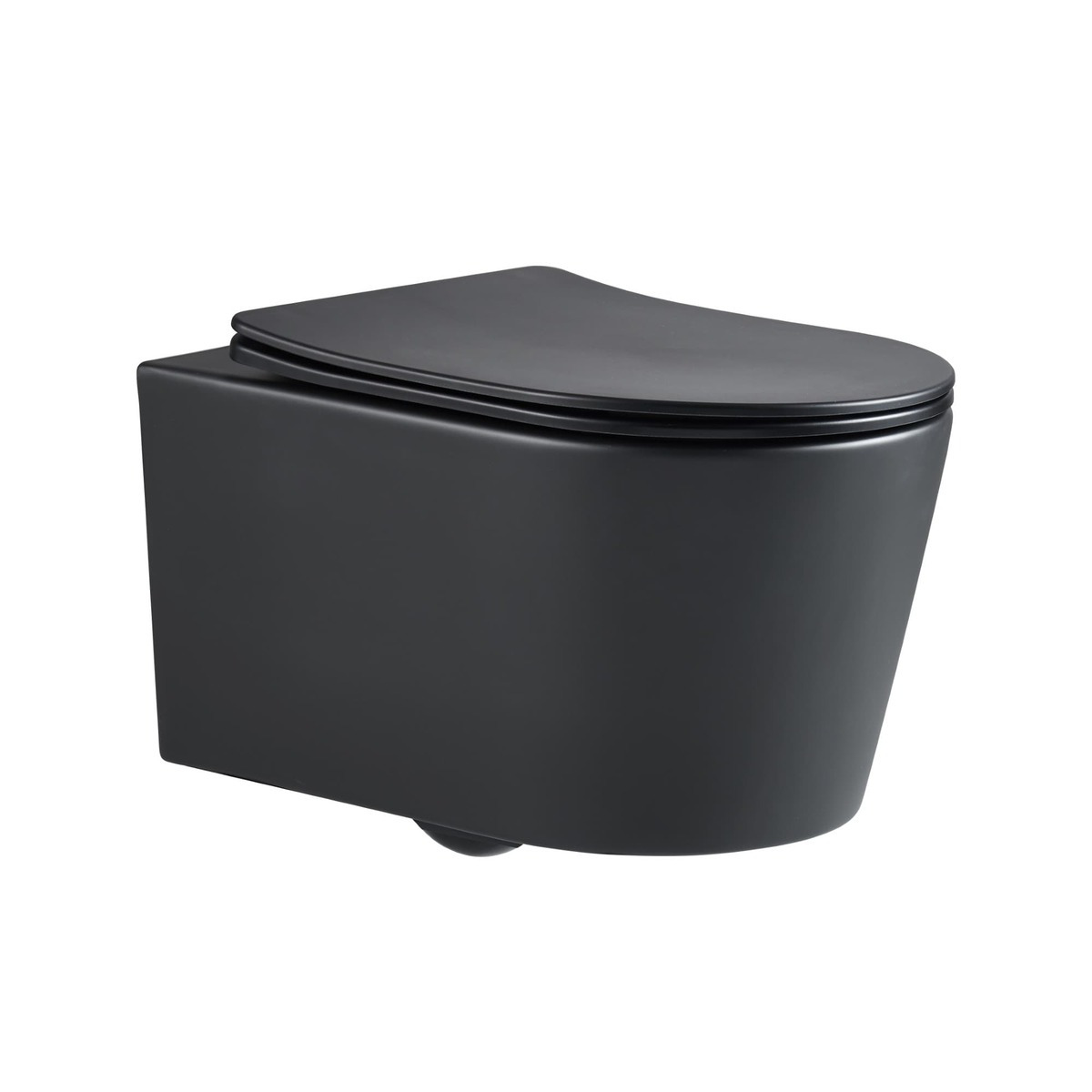

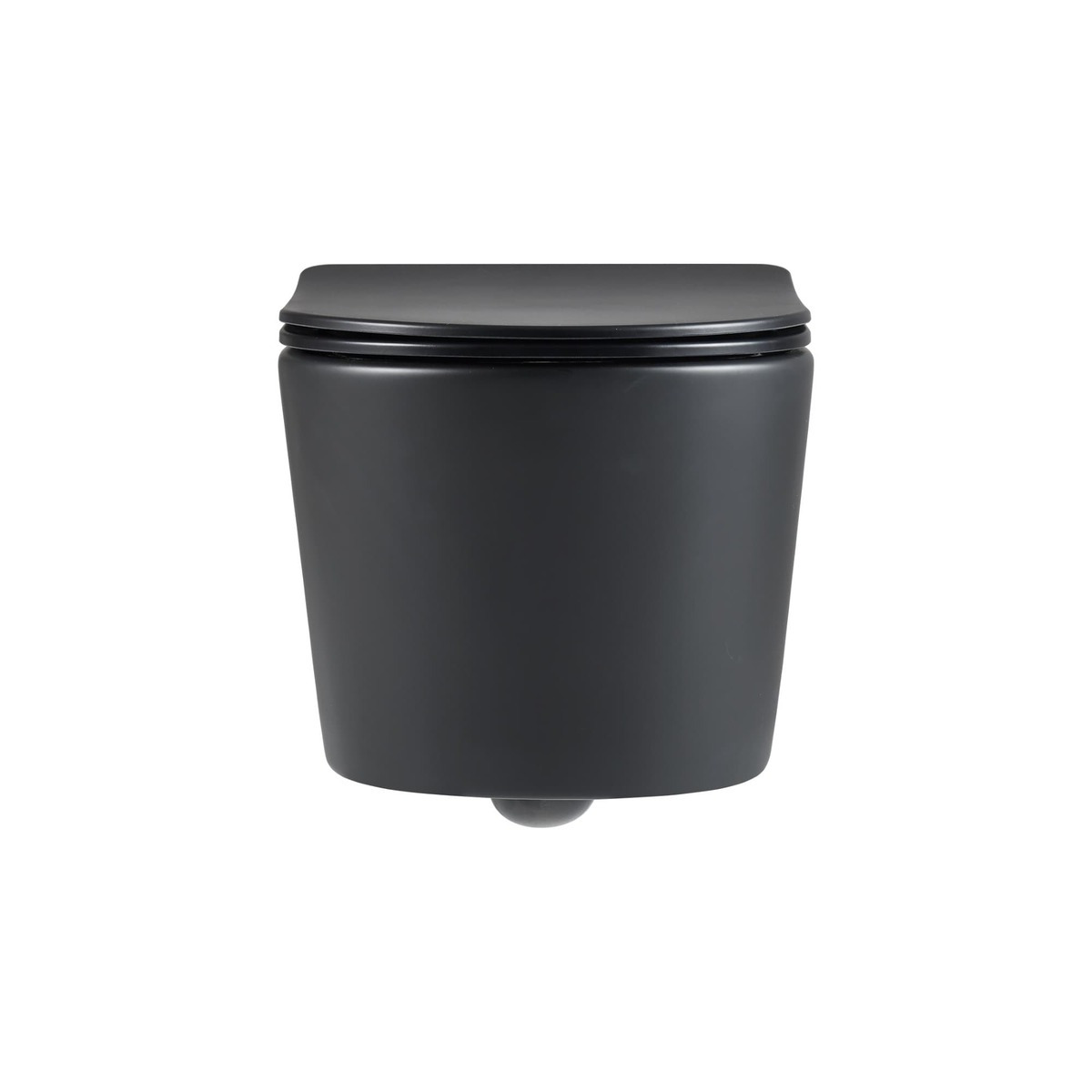

Swiss Aqua Technologies Rimless Wall-Hung Toilet with invisible fixings + Soft-Close Seat, Black (BlackSATrimless):
- Brand: Swiss Aqua Technologies
- Material: Ceramic
- Colour: Black
- Compact toilet suitable for small spaces
- Simple and sleek toilet design
- Rimless toilet bowl
- Invisible fixings
- Depth: 48cm
- Economical flushing 2.9 / 4L
- Soft-close seat
- Quick-release seat for easy removal
- Easy maintenance thanks to its rimless design and removable seat
- Quick installation

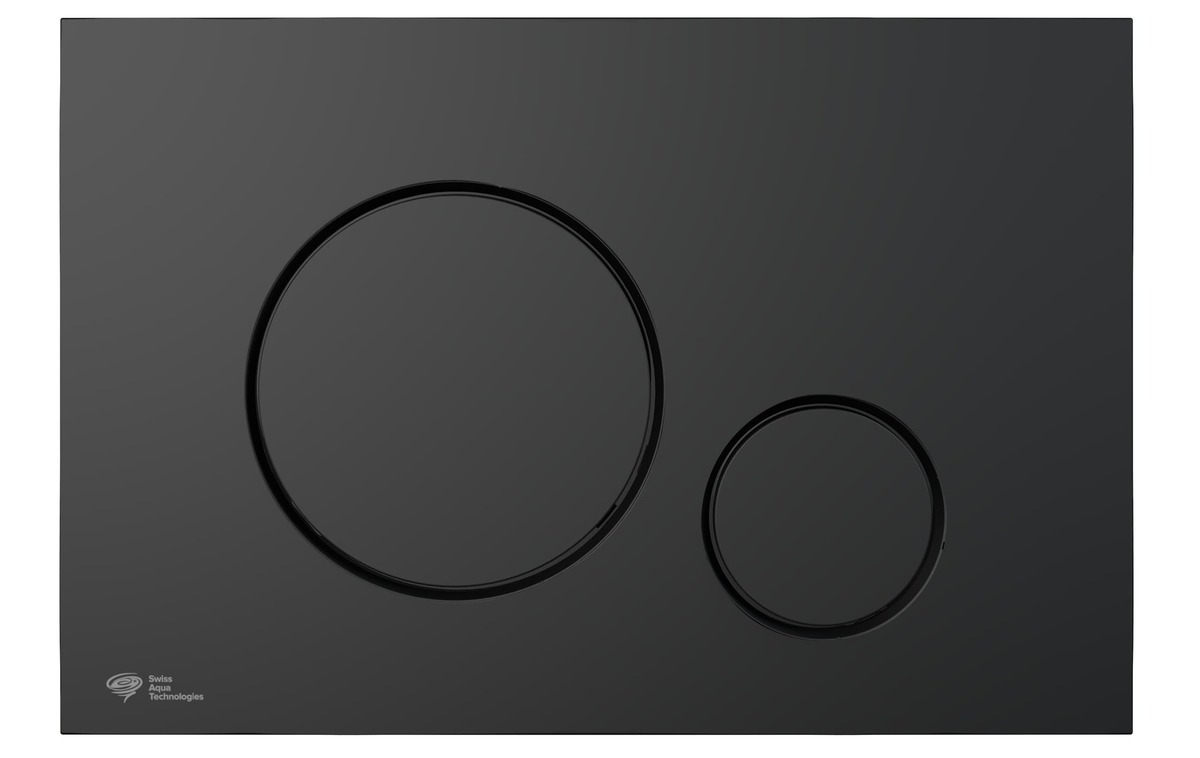

Swiss Aqua Technologies Dual Flush Plate, Matt Black (SATAT68):
- Compatible with all Swiss Aqua Technologies installation systems and pre-wall tanks
- Slim: only comes out 5.5 mm from the wall
- Dual Flush
- Colour: Matt Black
IMPORTANT: Please make sure to check the products upon delivery. If there's any damage, be sure to note it with the delivery person on the delivery note for each specific item. Unfortunately we won't be able to accept any claims otherwise as the delivery companies are very strict about this. Thank you for your understanding.
Product technical properties
- Toilet bowl brand:Swiss Aqua Technologies
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Alca
- Type of frame:Standard
- Plate colour:Matt black
- Bowl colour:Matt black
- Invisible fixings:Yes
£
