Geberit Toilet Frame Geberit 112cm + SAT Rimless bowl + Bidet shower + White plate (SATGEB3SPR2)
- Product reference: SATGEB3SPR2
- EAN: 0734077005674
- Line:
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.

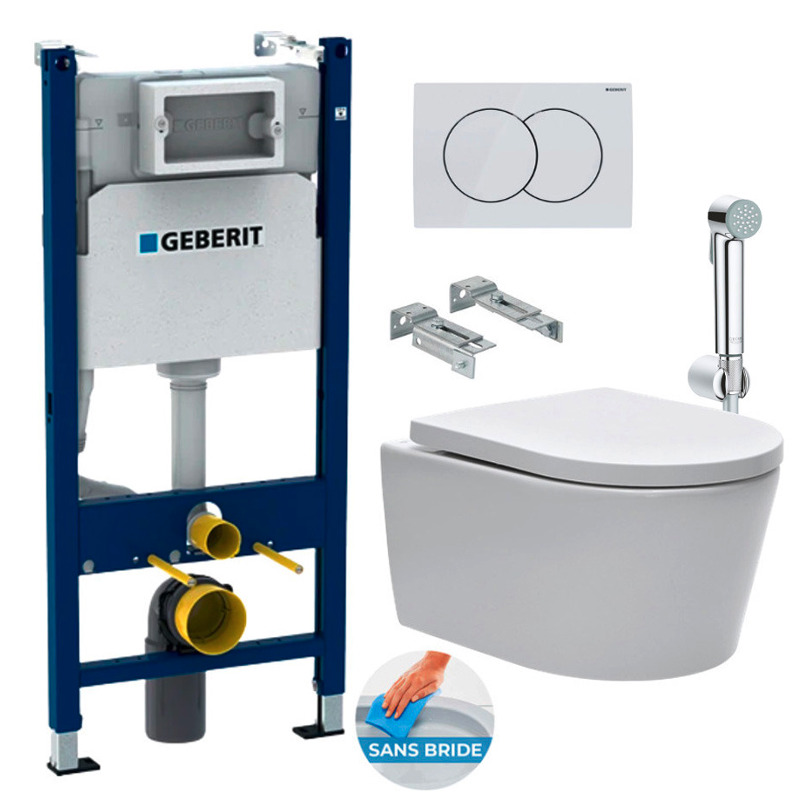

Features of the 112cm Support Frame + Swiss Aqua Technologies Rimless bowl + Bidet shower + White plate :
- Rimless wall-hung toilet with invisible fixings + softclose seat (SATrimless)
- Geberit DUOFIXBasic for wall-hung toilets, with Delta cistern (111.153.00.1)
- Geberit Duofix wall-mounting kit for self-assembly (111.839.00.1)
- Geberit DELTA01 white release plate (115.107.11.1)
- Grohe Tempesta-F Trigger Spray 30 Wall-mounted shower bracket, 1 jet, chrome (27513001)
Discover the easy and seamless installation of the Geberit module with this helpful video guide. Click the link to get started! https://www.youtube.com/watch?v=QgP0aSEW2ZE
see detailed description- Colour:White
- Material:Ceramics
- Length (cm):112
- Width (cm):48
- Height (cm):12
- Toilet bowl brand:Swiss Aqua Technologies
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Type of frame:Classic
- Plate colour:White
- Weight:35
- Bowl colour:White
- Invisible fixings:Yes
- Product type:Toilet pack
- Number of components:1
Geberit DUOFIXBasic for wall-hung toilets, with Delta cistern (111.153.00.1) :
Use :
- For pre-wall installation, full or partial installation
- For solid wall or dry wall installation
- For mounting a wall-hung WC with a fixing distance of 18 cm or 23 cm
- For floor thickness 0 - 20 cm
- For front control
- Geberit AquaClean
- Not suitable for concreting
Features :
- Delta Geberit 12 cm flush cistern (UP100) front control, against condensation
- Wide adjustable flow
- Small fixed flush rate
- Adjustable instantaneous flush
- Water supply from centre back / top
- Connection pipe to corner valve can be screwed on manually
- 2 flushes with Geberit Delta20 control knobs
- Frame with ø 9 mm holes for fixing in wooden structures
- Galvanised supports, infinitely adjustable from 0 to 20 cm
- Plastic base plates, depth suitable for UW50 installation
- Installation depth 12 cm
Technical information :
- Rinse quantity - factory setting 6 and 3.5 l
- High flush volume - setting range 4.5 / 6 / 7.5 l
Included in the frame :
- 2 M12 threaded rods for ceramic fixing
- Drain valve for 2 flush volumes
- Cover for rough-in for service hole, polystyrene foam
- 2 protective caps
- Angle tap R 1/2" with adapter ring
- Geberit AquaClean water inlet hose
- Connection set ø 90 mm
- Waste bend for WC, PE-HD, ø 90/90 mm
- Adapter, ø 90/110 mm
- Fixing materials
- Geberit Duofix wall-mounting kit for self-assembly (111.839.00.1)

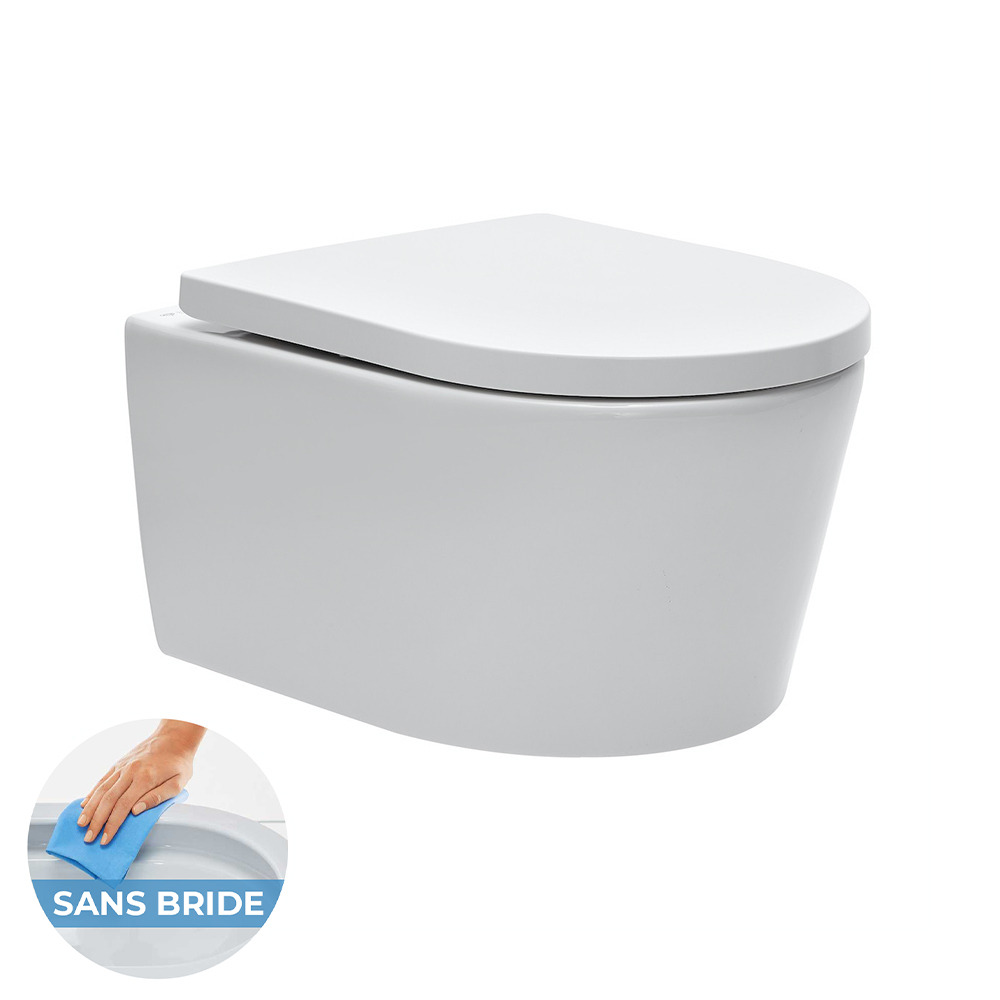

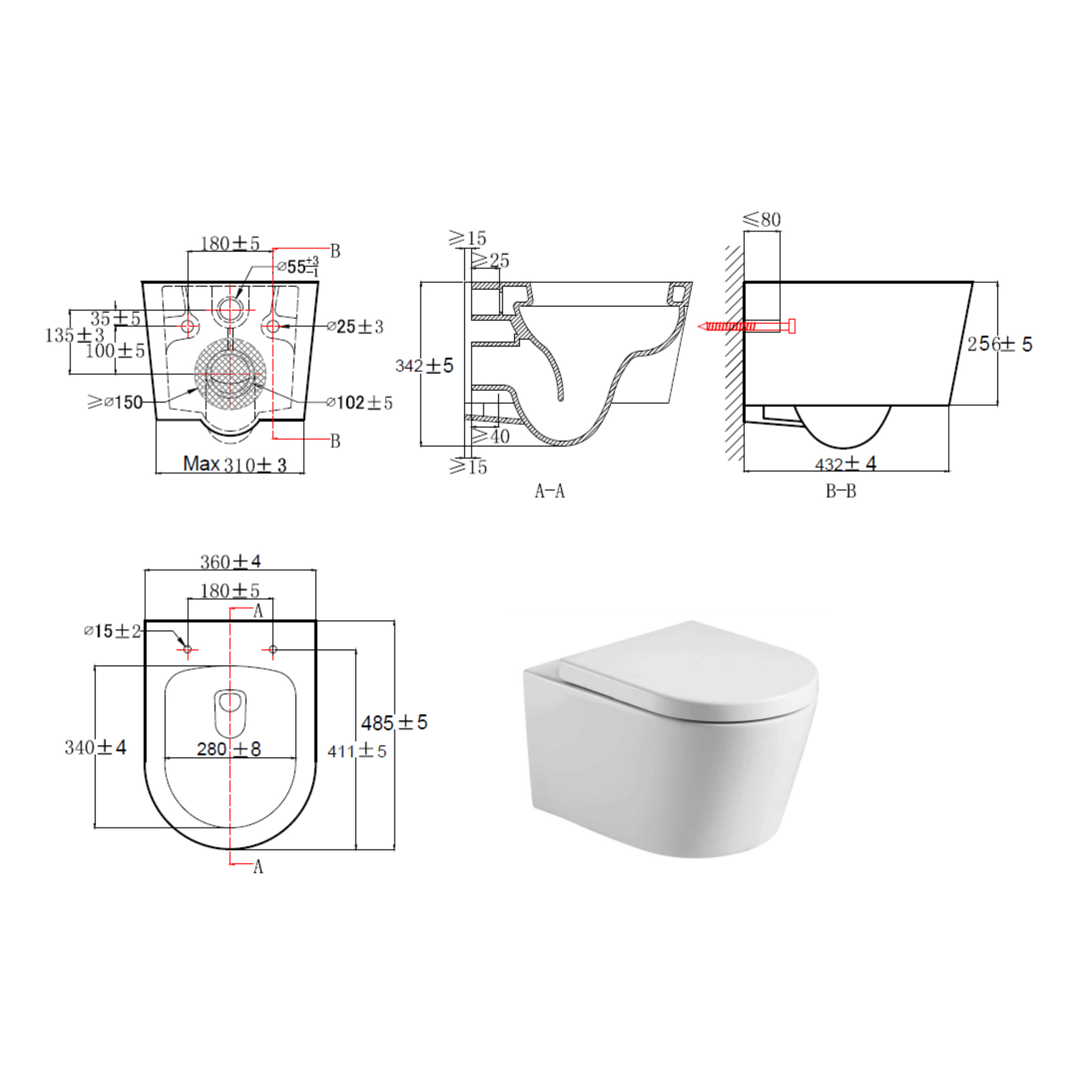

Swiss Aqua Technologies wall-hung Rimless toilet+ softclose seat (SATrimless) :
- Brand: Swiss Aqua Technologies
- Material: Ceramic
- Compact toilet suitable for small spaces
- Basin with a simple, uncluttered style
- Flangeless bowl
- Concealed fixings
- 48 cm depth
- Economical 3 / 4.5 L flush
- Shutter with fall brake
- Detachable seat
- Easy maintenance thanks to flangeless system and removable seat
- Quick installation
Grohe Tempesta-F Trigger Spray 30 Wall-mounted 1-spray shower bracket, Chrome (27513001):
- Tempesta-F Trigger Spray 30 1-spray wall bracket
- Hand shower with trigger (27512001)
- Wall bracket for hand shower (28605000)
- Silverflex shower hose 1250 mm (26335)
- GROHE StarLight Bright and durable chrome
- SpeedClean anti-limescale process
- Inner WaterGuide for maximum durability
- Anti-twist system
- Minimum pressure 1 bar
- Refer to local installation standards
- 1/2" stopcock (2295800M) to be ordered separately
Geberit DELTA01 release plate (115.107.11.1) :
- Delta has 2 buttons, one for a small 3L flush and the other for a large 6L flush.
- Water saving
- Front release
Warning! Products must be checked on receipt. Any damage must be noted in the presence of the delivery person and indicated precisely for each product on the delivery note. No claims can be accepted afterwards, as carriers are very strict in this respect. Thank you for your understanding.
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
