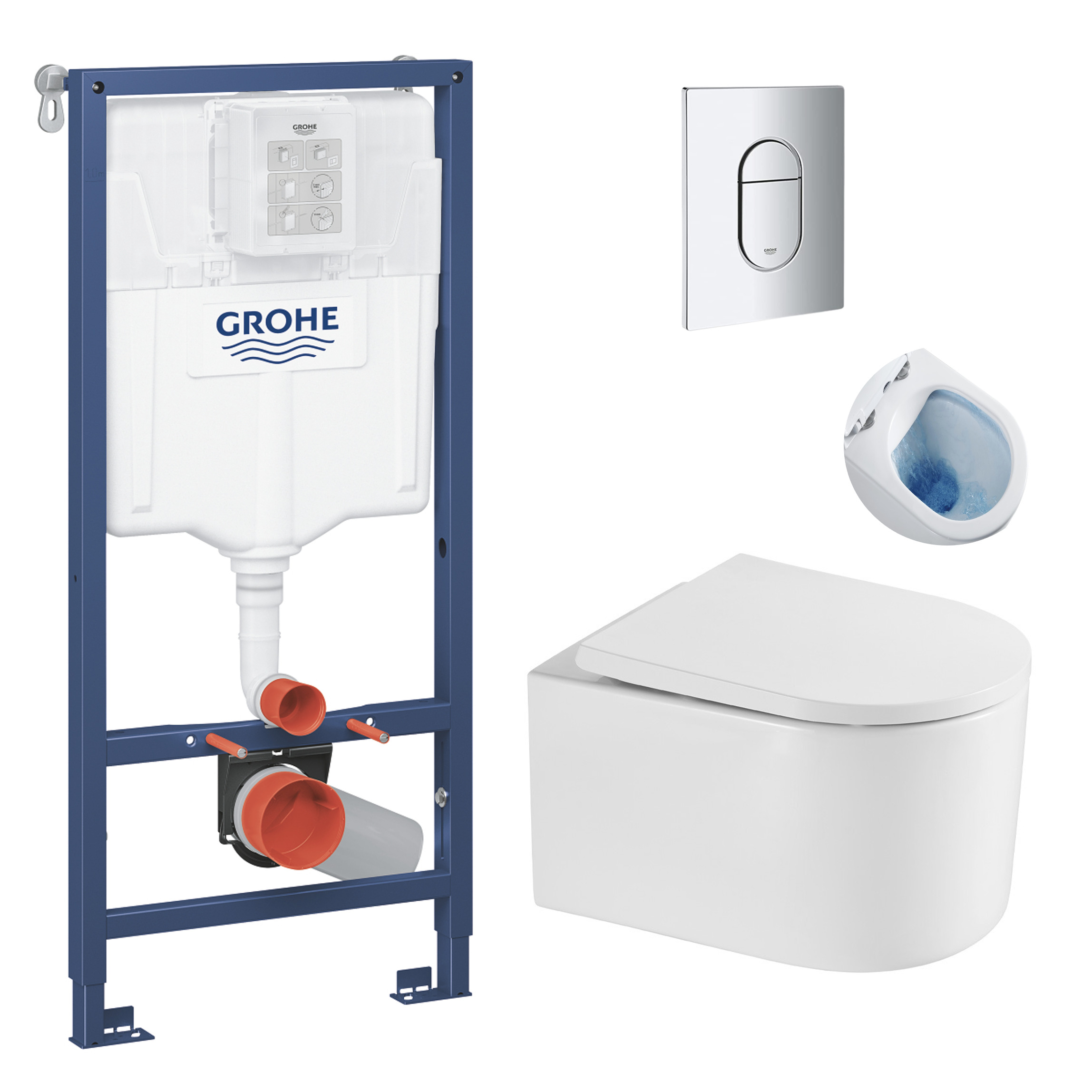

Grohe Rapid SL toilet frame+ Rimless WC SAT Delano + Soft-close Seat + Chrome Flush Plate (ARENADELANO)
- Product reference: ARENADELANO
- EAN: 8592127182056
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Features of the Rapid SL toilet frame+ Rimless WC SAT Delano + Soft-close Seat + Chrome Flush Plate (ARENADELANO):
- Swiss Aqua Technologies Delano wall-hung rimless toilet and invisible fixings, softclose seat (SAT72010RREXP)
- Rapid SL WC support frame for 1.13 m load-bearing wall (38528001)
- Arena chrome release plate (38844000)
- Sound insulation pad
- Wall mountings (3855800M)
Discover the easy and seamless installation of the Rapid SL Grohe module with this helpful video guide. Click the link to get started! https://www.youtube.com/watch?v=DeW0CIAlbkA&t=19s
.
see detailed description- Colour:White
- Material:Ceramics
- Length (cm):156
- Width (cm):19.7
- Height (cm):113
- Toilet bowl brand:Swiss Aqua Technologies
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Grohe
- Plate colour:Chrome
- Bowl colour:White
- Invisible fixings:Yes
- Net weight:38.034

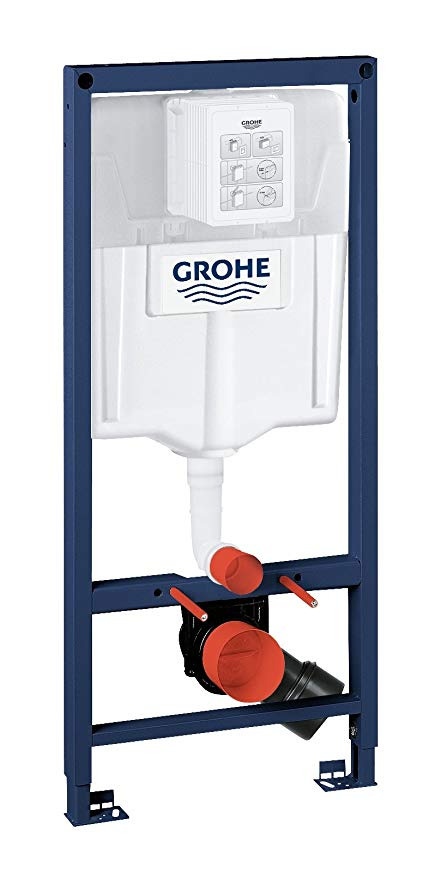

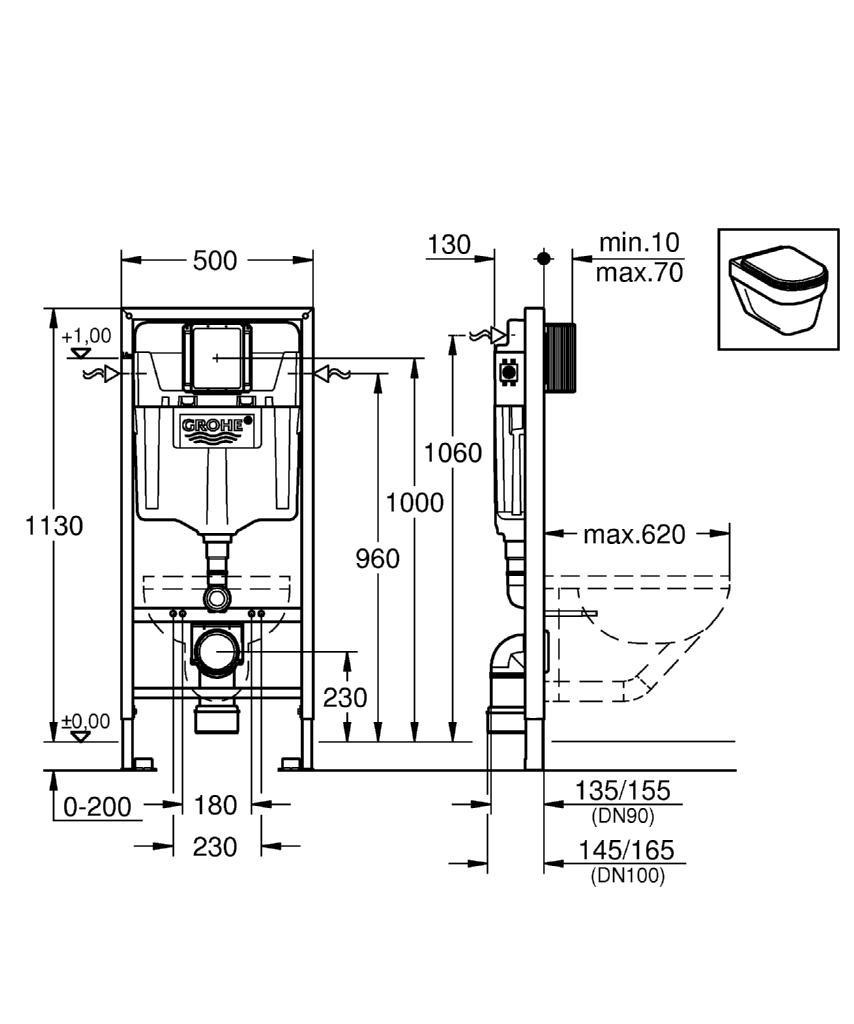

Grohe Rapid SL Frame for WC for load-bearing wall1.13 m (38528001):
- GD 2 cistern, with inspection hatch
- Height: 1.13 m
- Epoxy finish steel frame
- Mounted on a load-bearing wall or in a light partition with reinforced double framing
- Quick height adjustment and locking up to 200 mm
- Delivered with fixing hardware
- TÜV approved
- Delivered with rods and nuts for toilet bowl fixing, ceramic fixing
- Fixing spacing 180/230 mm
- PP drain elbow Ø 90 mm
- Depth and height adjustable (200 mm)
- Reducing coupling DN 90/110
- Exhaust and supply liner
- Tank 6 - 9 l
- Factory setting 3 and 6 l
- Pneumatic release mechanism (AV1) for single button (interruptable) and double button (interruptable) control plate
- Side or rear supply
- Tank insulated against condensation
- Water supply with angle tap and flexible connection
- Installation of template, horizontal or vertical, without tools

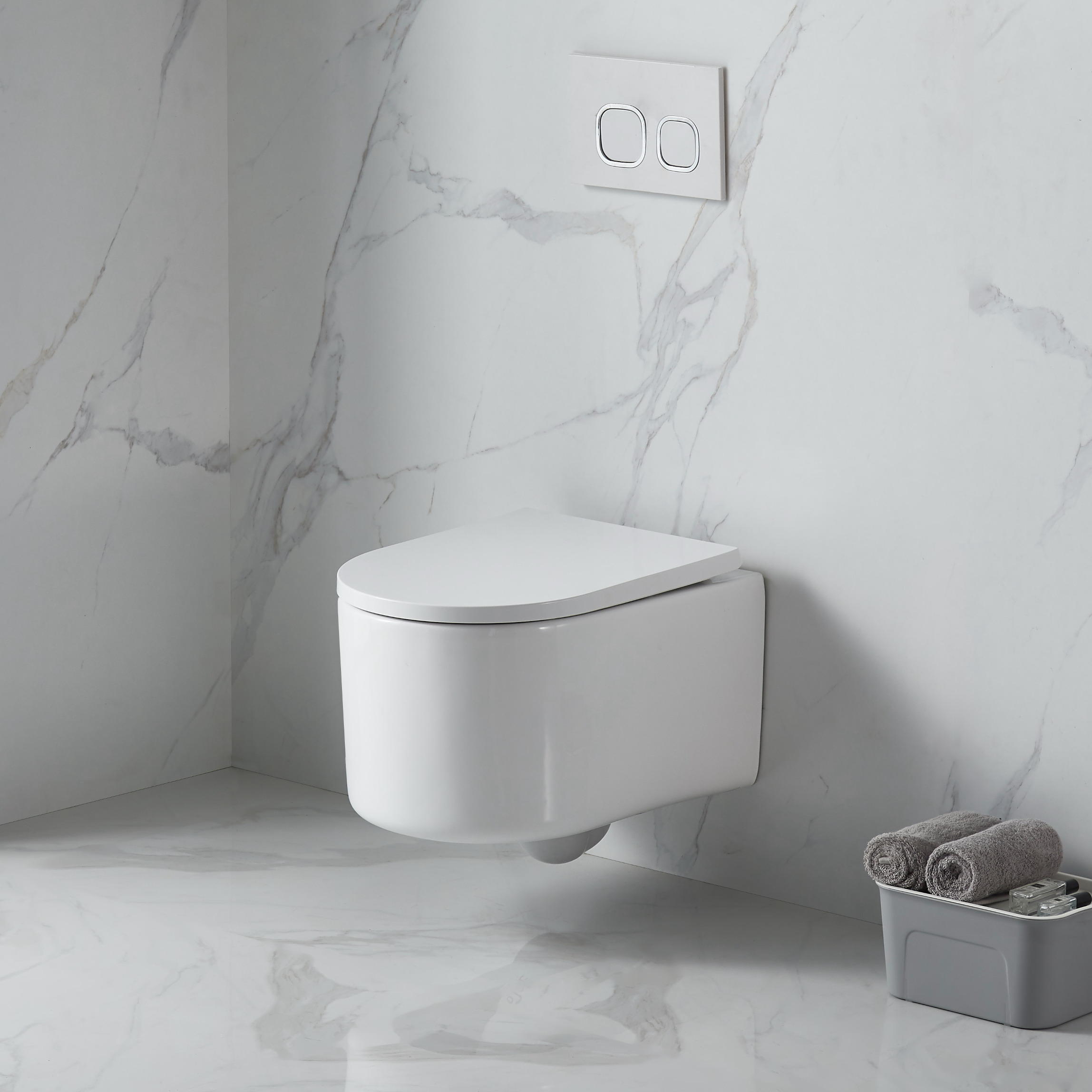

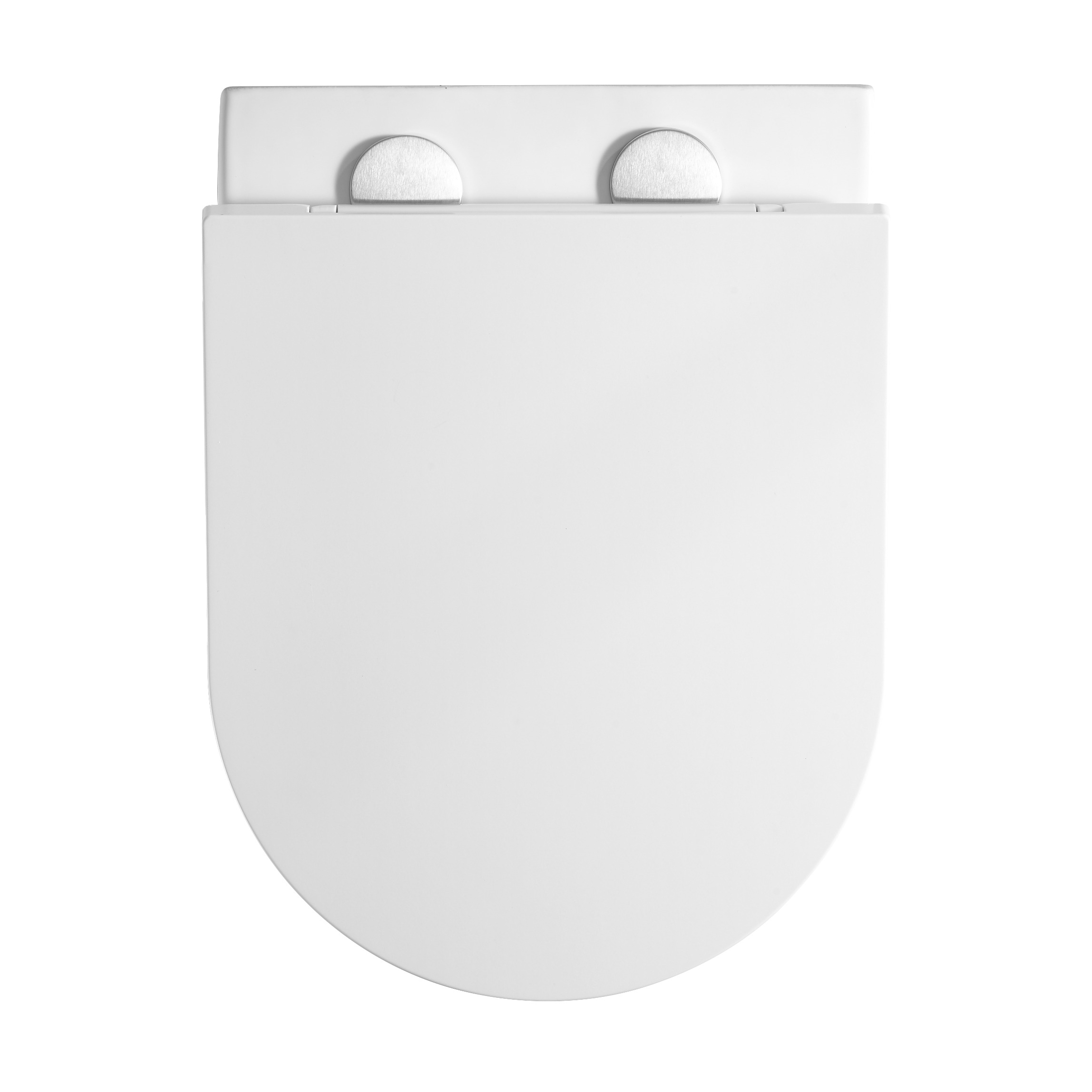

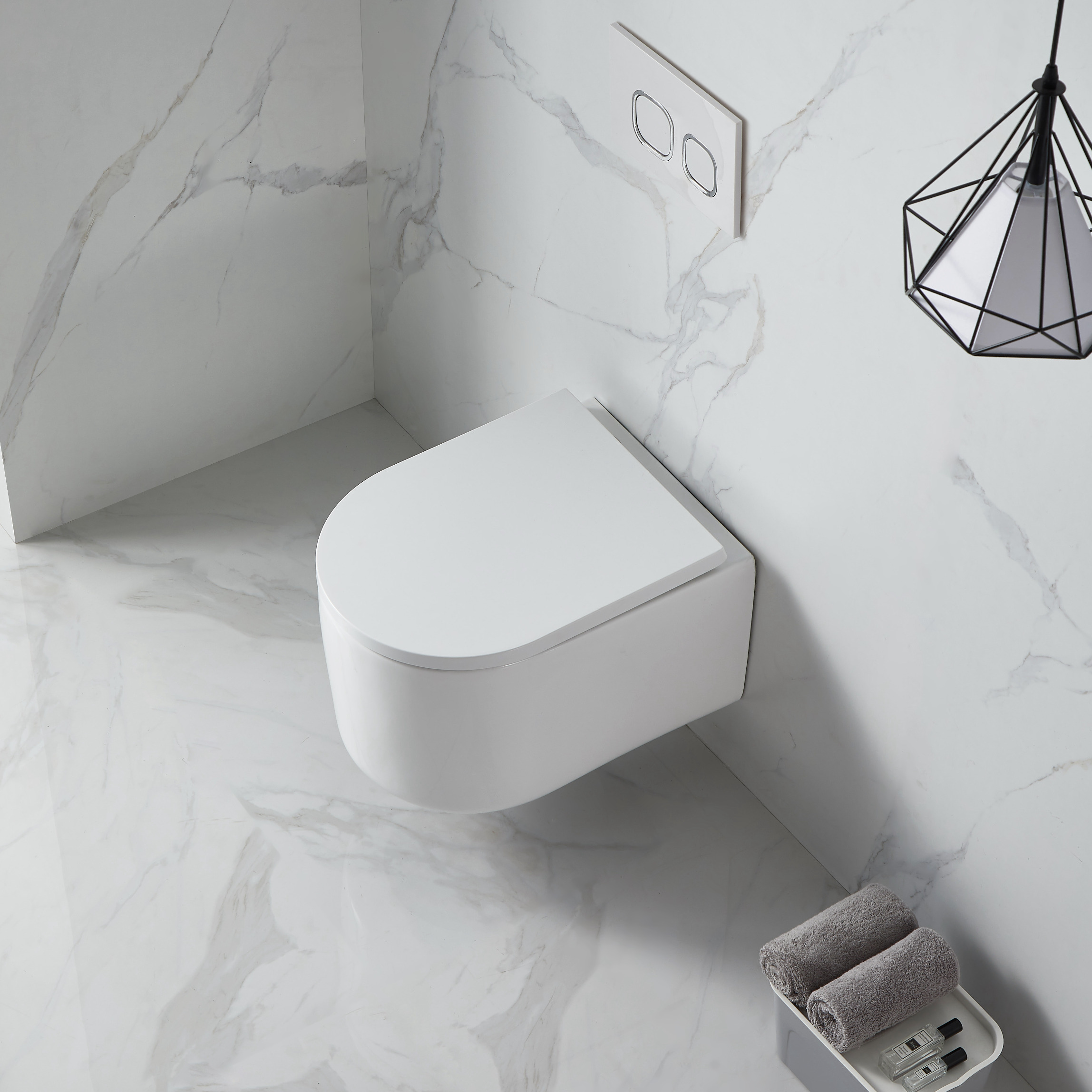

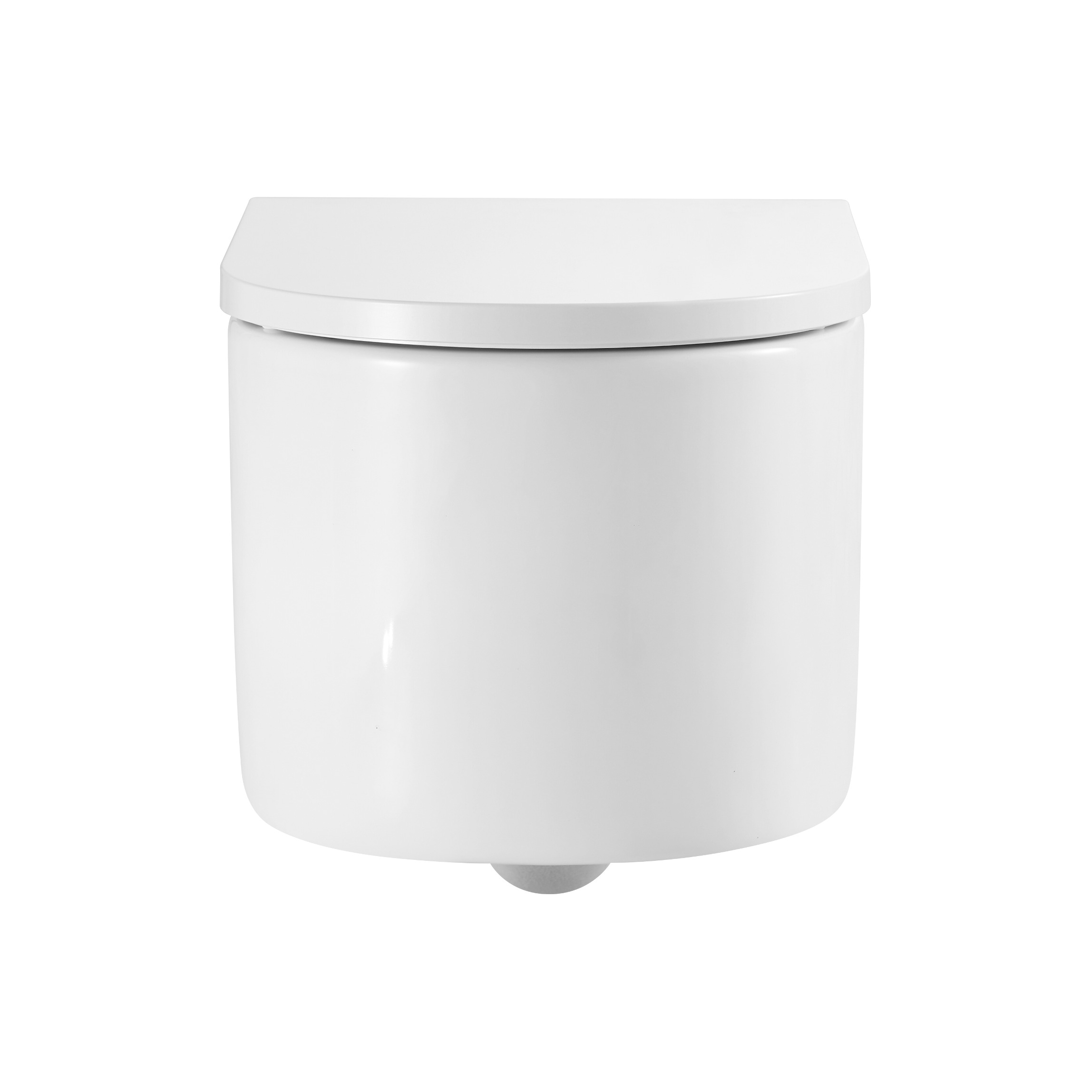

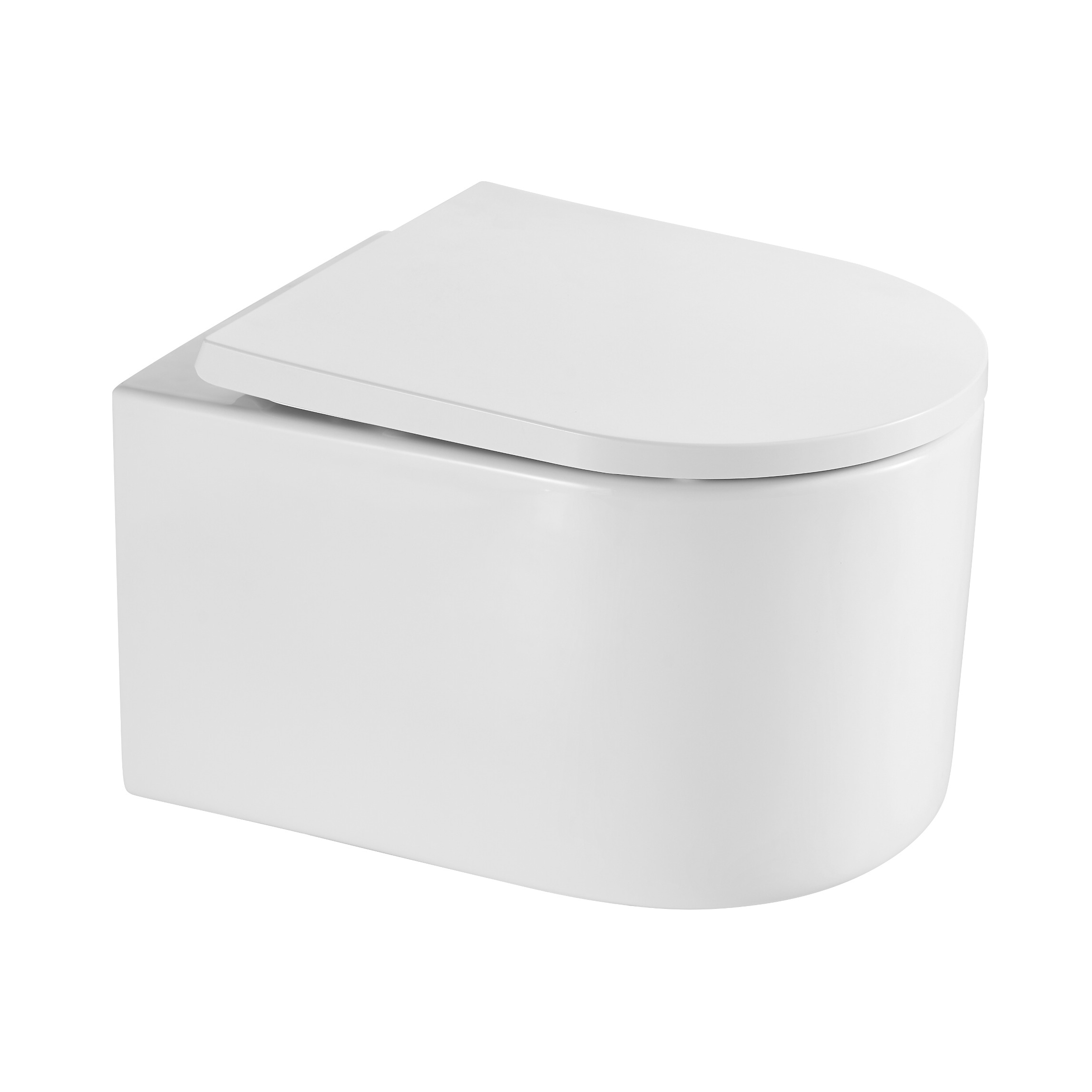

Swiss Aqua Technologies Delano wall-hung rimless toilet and invisible fixings, softclose toilet seat (SAT72010RREXP):
- Brand: Swiss Aqua Technologies
- Material: Ceramic
- Design bowl
- Tub without flange
- Hidden fixings
- Decanter with fall brake
- Unclipable flap
- Easy maintenance thanks to flangeless system and removable flap
- Fast installation

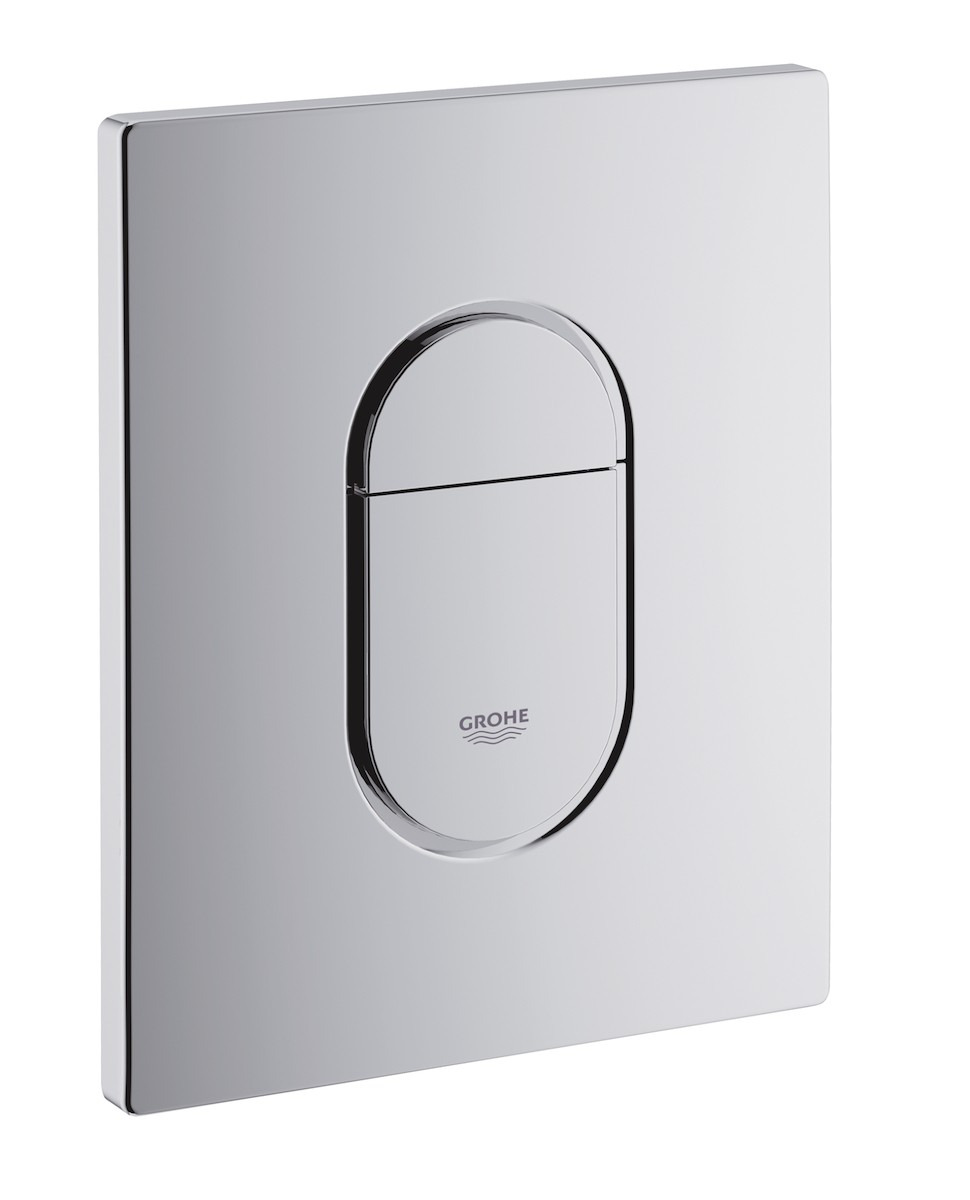

Arena chrome flush plate (38844000):
- Two-touch or interruptable .
- For AV1 pneumatic mechanism
- Vertical mounting
- 156 x 197 mm
- In ABS
- GROHE StarLight® durable shine
- GROHE EcoJoy® water saving

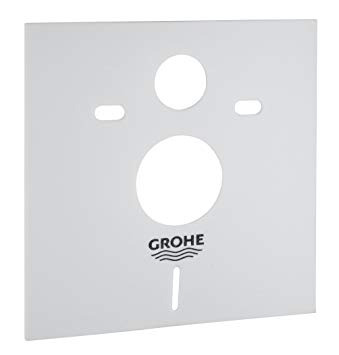

Grohe sound insulation pad:
- sound insulation panel
- 2 rubber bushes
Wall mountings (3855800M):
- Rapid SL wall bracket
- For surface mounting
- For wall or partition support mounting
- Continuous depth adjustment 130 - 230 mm
- Delivered with fixing material
- 2 pieces
