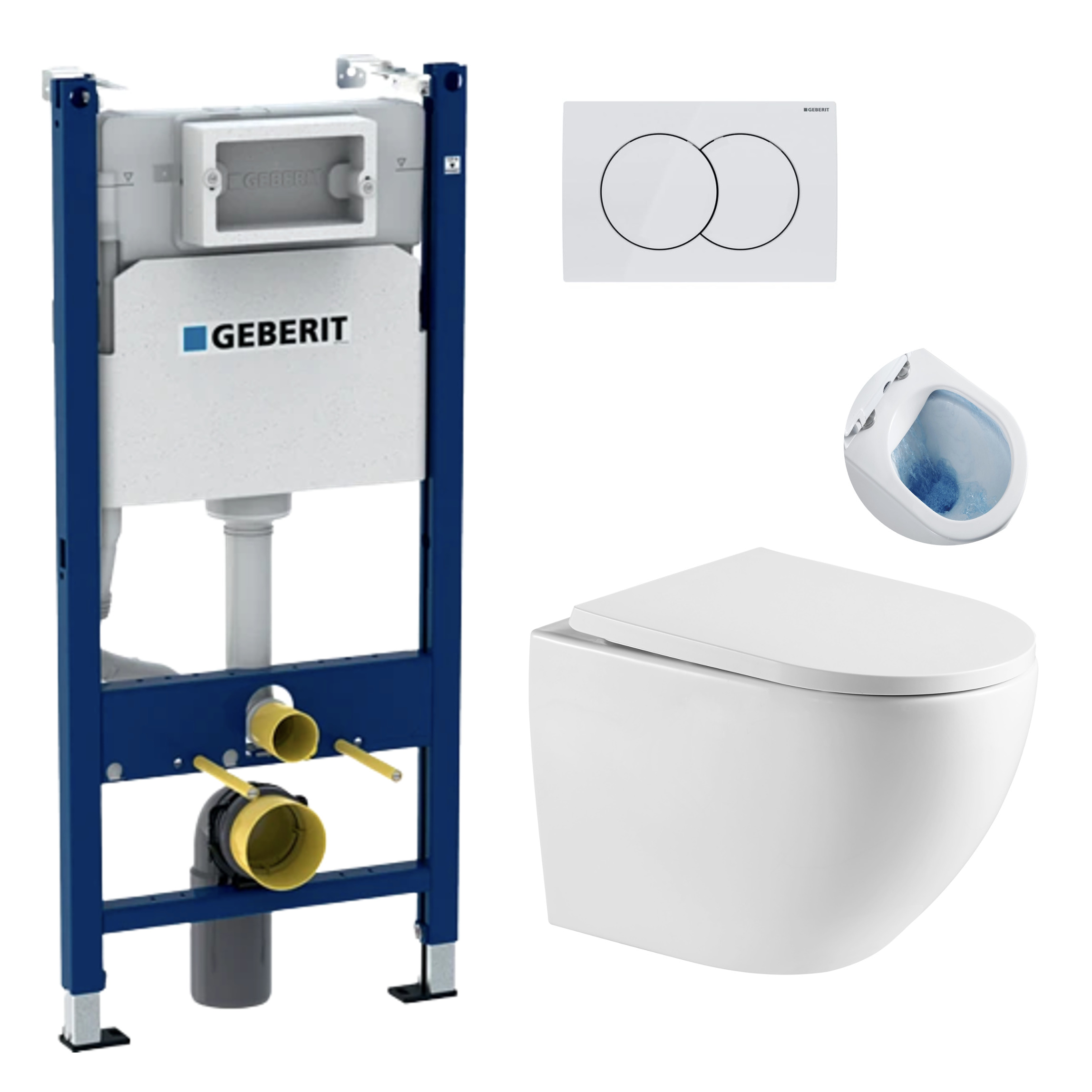

Geberit Duofix Wall-hung Toilet Frame + SAT Fusion Rimless Toilet + Soft-close Seat + White Flush Plate (FUSIONGEB3)
- Product reference: FUSIONGEB3
- EAN: 8592127182063
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Features of the Geberit Duofix Wall-hung Toilet Frame + SAT Fusion Rimless Toilet + Soft-close Seat + White Flush Plate (FUSIONGEB3) :
-
Geberit Delta Pack Duofix support frame 112cm + Delta01 control plate, White + Wall fixings (111.154.11.2)
-
Swiss Aqua Technologies flangeless wall-hung WC with invisible fixings, fall-brake flap (SAT67010RREXP)
- Colour:White
- Material:Ceramics
- Length (cm):52
- Width (cm):36
- Height (cm):36.5
- Toilet bowl brand:Swiss Aqua Technologies
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Plate colour:White
- Bowl colour:White
- Invisible fixings:Yes
- Net weight:40.545

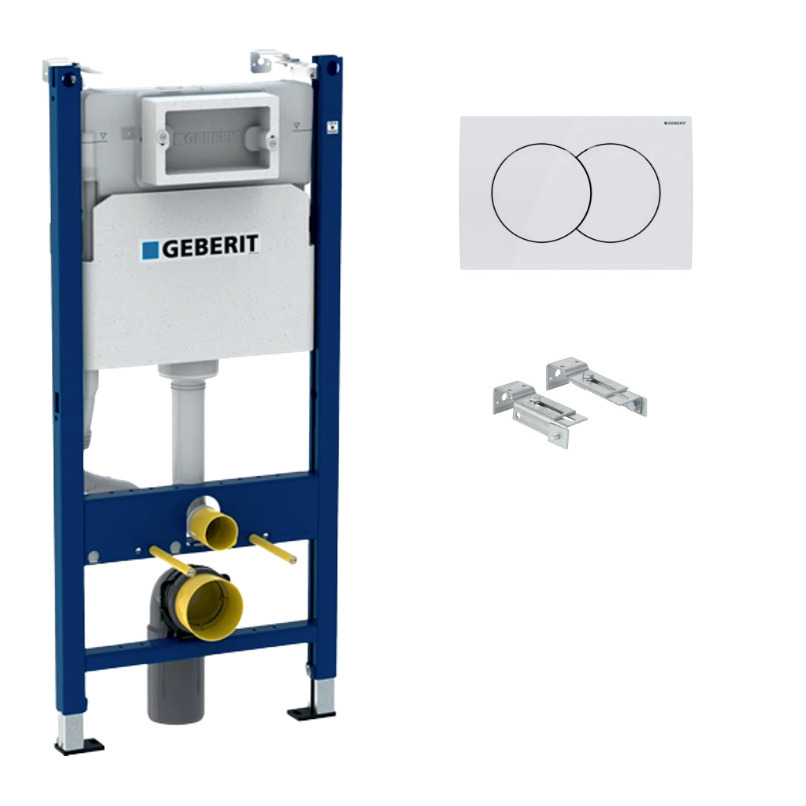

Features of Geberit Delta Pack Duofix support frame 112cm + Delta01 control plate, White + Wall fixings (111.154.11.2):
- Geberit DUOFIXBasic for wall-hung toilets, with Delta cistern (111.153.00.1)
- Geberit Duofix wall-mounting kit for self-assembly (111.839.00.1)
- Geberit Delta01 two-touch release plate, alpine white (115.107.11.1)

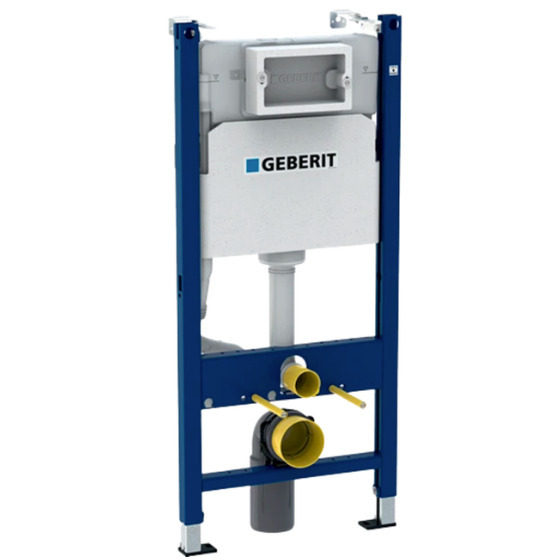

Geberit DUOFIXBasic for wall-hung toilets, with Delta cistern (111.153.00.1):
Use:
- For installation in the pre-wall, installation in all or part
- For solid wall or dry-processed wall
- For mounting a wall-hung WC with a fixing distance of 18 cm or 23 cm
- For floor thickness 0 - 20 cm
- For front control
- Geberit AquaClean
- Not suitable for concreting
Features:
- Delta Geberit 12 cm flush tank (UP100) front control, against condensation
- Adjustable wide flow rate
- Small fixed flush rate
- Adjustable instant flush capability
- Water supply via rear / top centre
- Hose connection to corner valve can be screwed on manually
- 2 flushes with Geberit Delta20 control knobs
- Frame with ø 9 mm holes for fixing in wooden structures
- Galvanised supports, infinitely adjustable from 0 to 20 cm
- Plastic base plates, depth suitable for UW50 mounting
- Installation depth 12 cm
Technical information:
- Rinse quantity - factory setting 6 and 3.5 l
- Large rinse flow rate - setting range 4.5 / 6 / 7.5 l
Included in the frame:
- 2 M12 threaded rods for ceramic fixing
- Drain valve for 2 flush rates
- Cover for rough mounting for service hole, expanded polystyrene
- 2 protective caps
- R 1/2 "corner spigot with adaptor ring
- Geberit AquaClean water inlet hose
- Connection set ø 90 mm
- Waste elbow for WC, PE-HD, ø 90/90 mm
- Adapter, ø 90/110 mm
- Fixing material
- Geberit Duofix wall fixing kit for self-assembly (111.839.00.1)

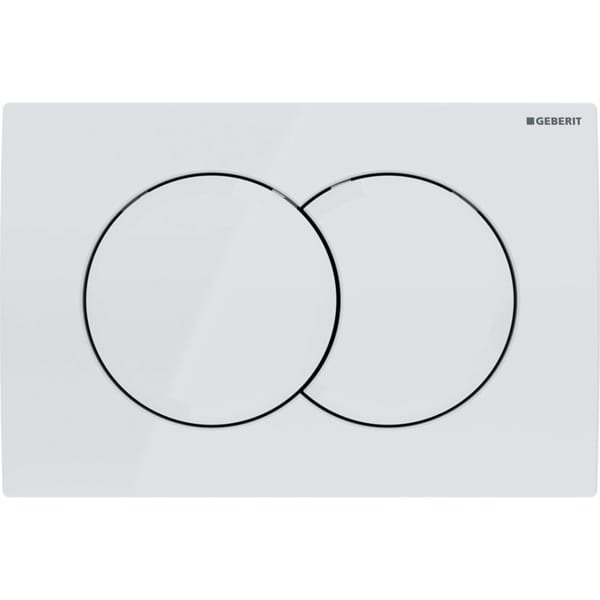

Geberit Delta01 two-touch release plate, alpine white (115.107.11.1):
- New from Geberit 2022
- Mechanical two-touch front release
- Water saving
- For Delta tank

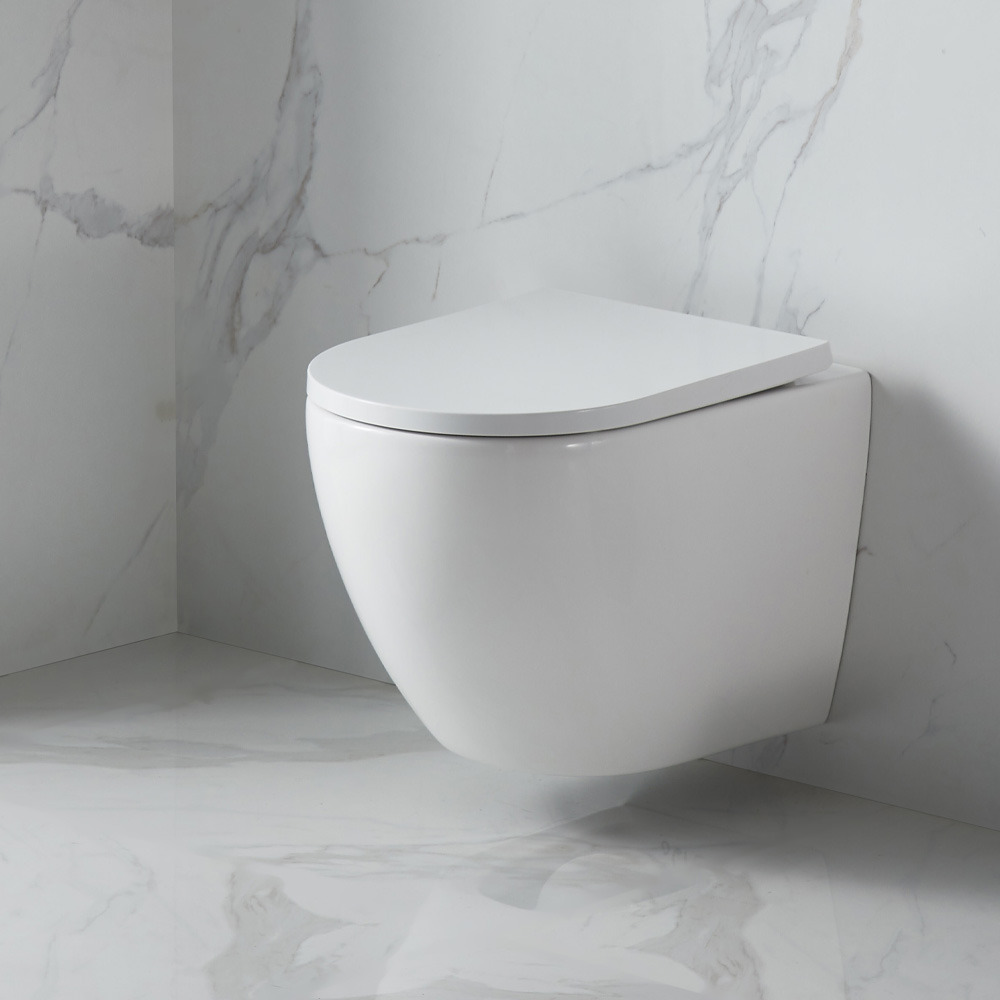

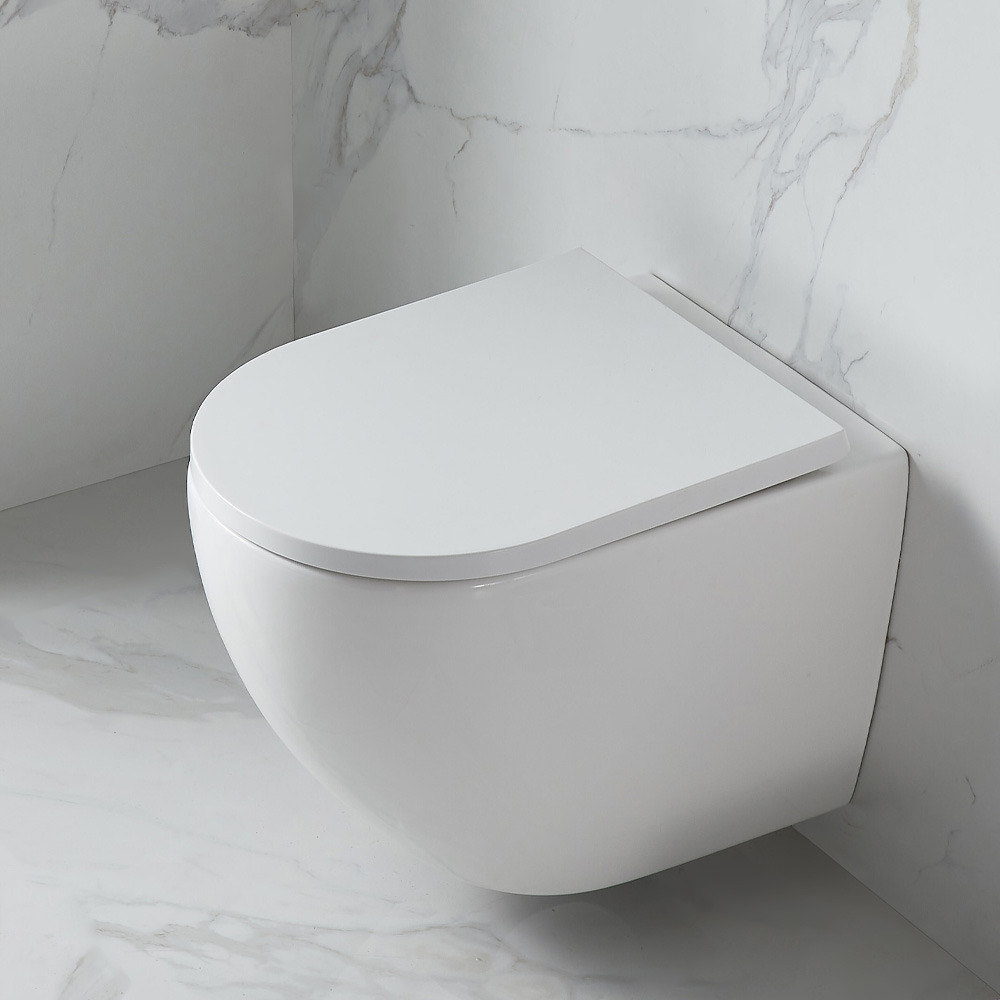

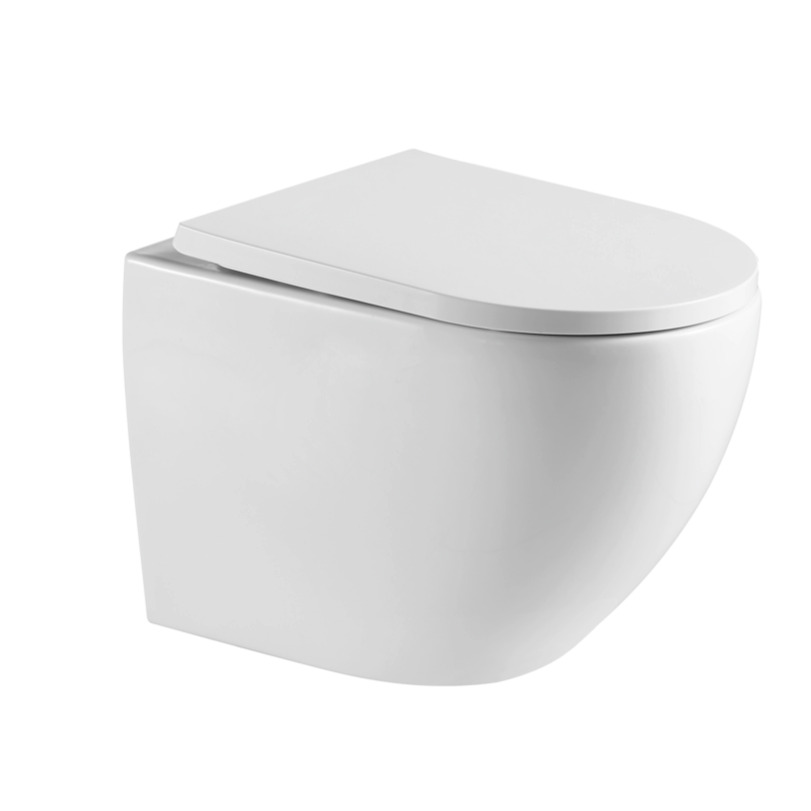

Swiss Aqua Technologies flangeless wall-hung toilet with invisible fixings, fall-brake flap (SAT67010RREXP):
- Brand: Swiss Aqua Technologies
- Material : Ceramic
- Bowl with simple, uncluttered style
- Flangeless bowl
- Hidden fixings
- Drop-brake flapper
- Unclipable flap
- Easy maintenance thanks to flangeless system and removable flap
- Fast installation
