Swiss Aqua Technologies Toilet frame + SAT Delano rimless toilet+ SoftClose seat + White plate (SMART-Delano-4)
- Product reference: SMART-DELANO-4
- EAN: 8592127182704
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Experience the ultimate in innovation and refinement for your bathroom with the (SMART-Delano-4)
pack.

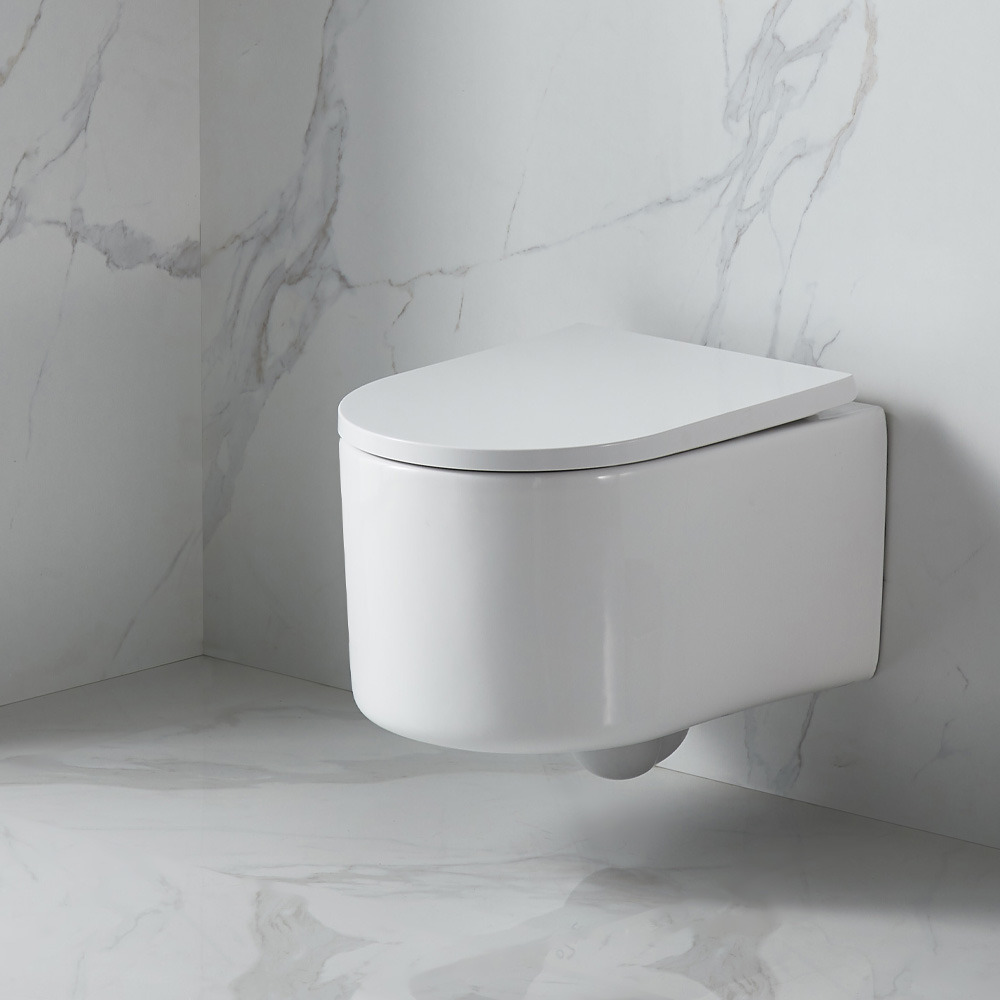

This set stands out thanks to the innovative features of its products. The suspended WC without flange with invisible fixings (SAT72010RREXP) redefines hygiene standards by eliminating hard-to-reach areas. For optimum comfort without unwanted noise, the flap SoftClose ensures smooth closure.
The self-supporting support frame provides a stable and durable base for your wall-hung toilet, for a safe and seamless installation.
Effectively control your water consumption without compromising the performance of your WC with the help of the control platetwo-touch (M570) from Alca. For a unique bathroom experience.
Discover the easy and seamless installation of the SAT module with this helpful video guide. Click the link to get started! https://www.youtube.com/watch?v=UeQcY7mksVs
see detailed description- Colour:White
- Material:Ceramic
- Length (cm):130
- Width (cm):120
- Height (cm):80
- Toilet bowl brand:Swiss Aqua Technologies
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Swiss Aqua Technologies
- Plate colour:White
- Constructor warranty:2 years
- Weight:35.00
- Depth:130
- Bowl colour:White
- Invisible fixings:Yes
- Product type:Toilet pack
- Net weight:31.5

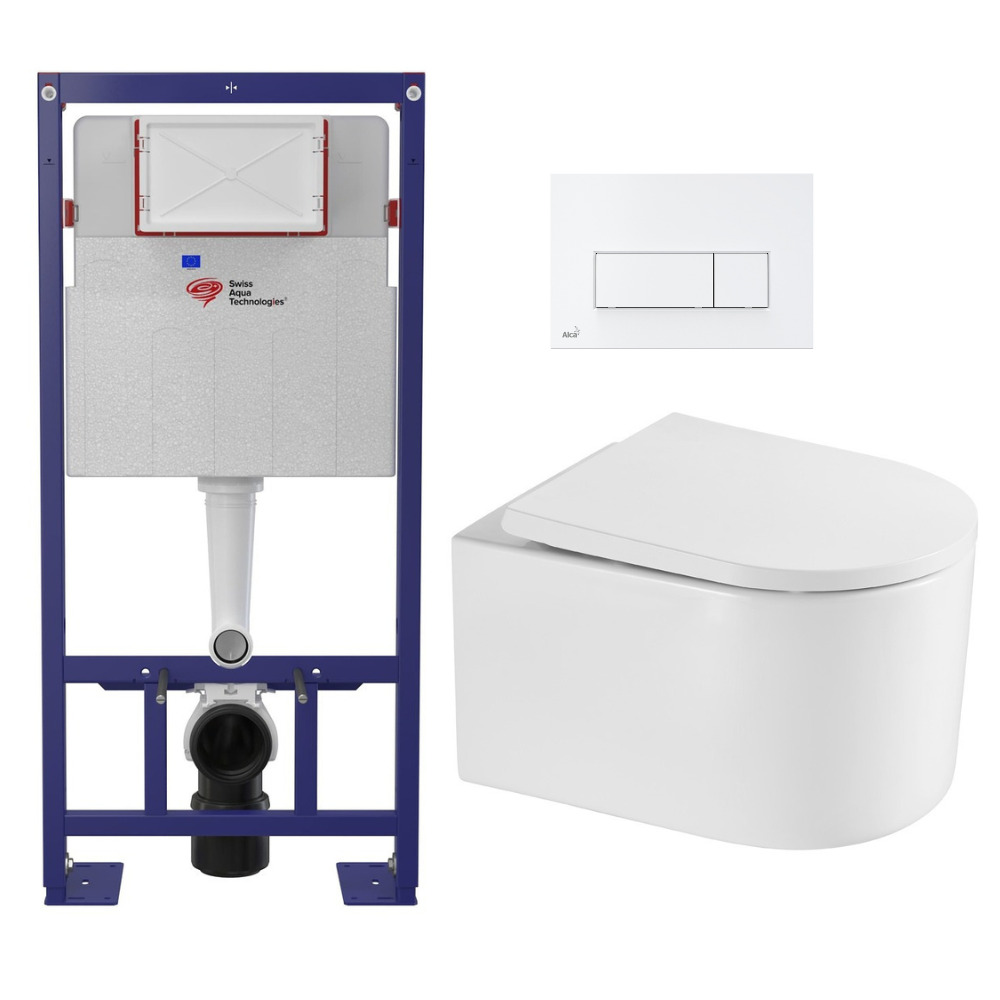

Features of the SAT Toilet frame + SAT Delano rimless toilet+ SoftClose seat + White plate (SMART-Delano-4)
- Swiss Aqua Technologies Freestanding support frame for wall-hung WC (SATAMS)
- Swiss Aqua Technologies Suspended WC without flange and invisible fixings, fall-brake seat (SAT72010RREXP)
- Alca White two-touch control plate (M570)

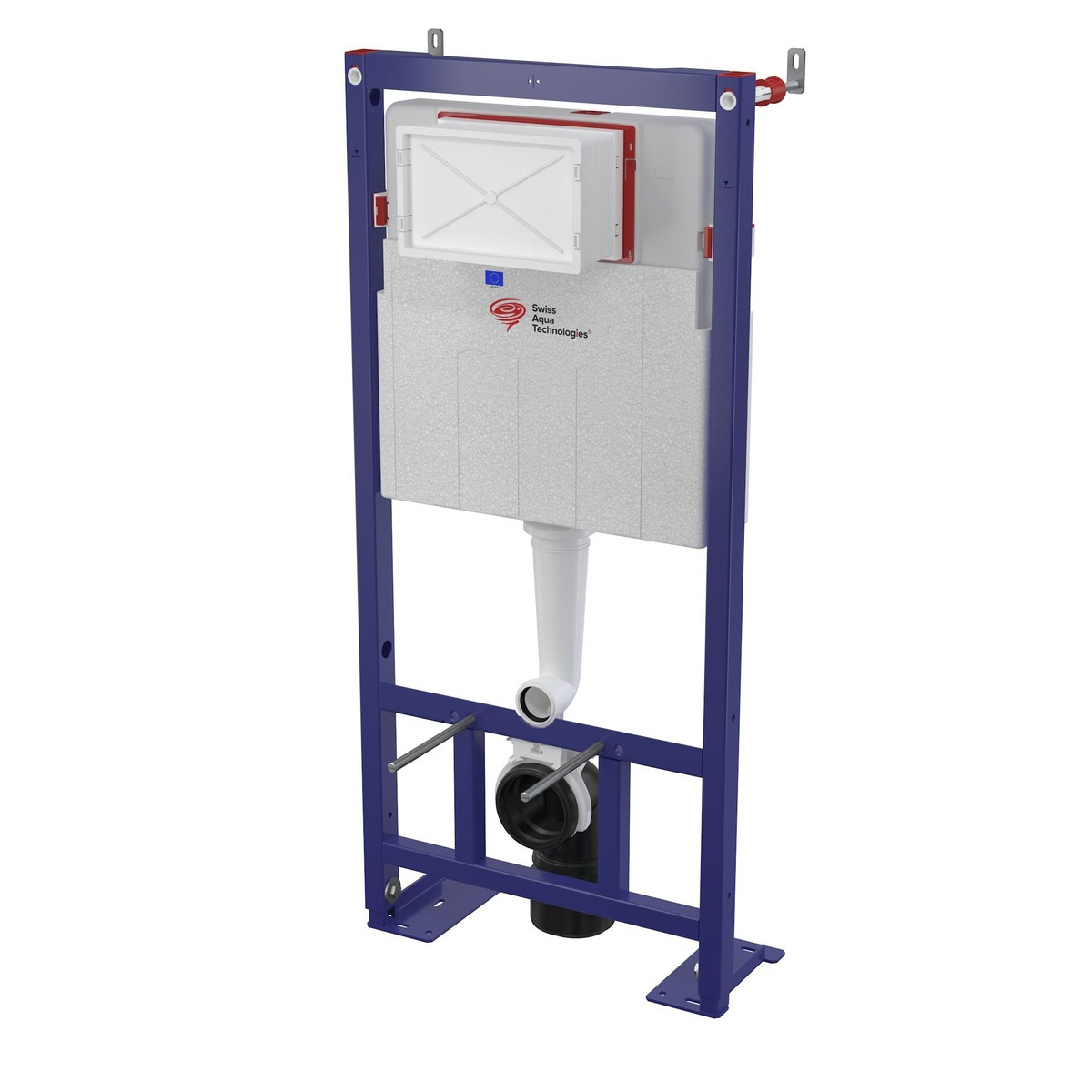

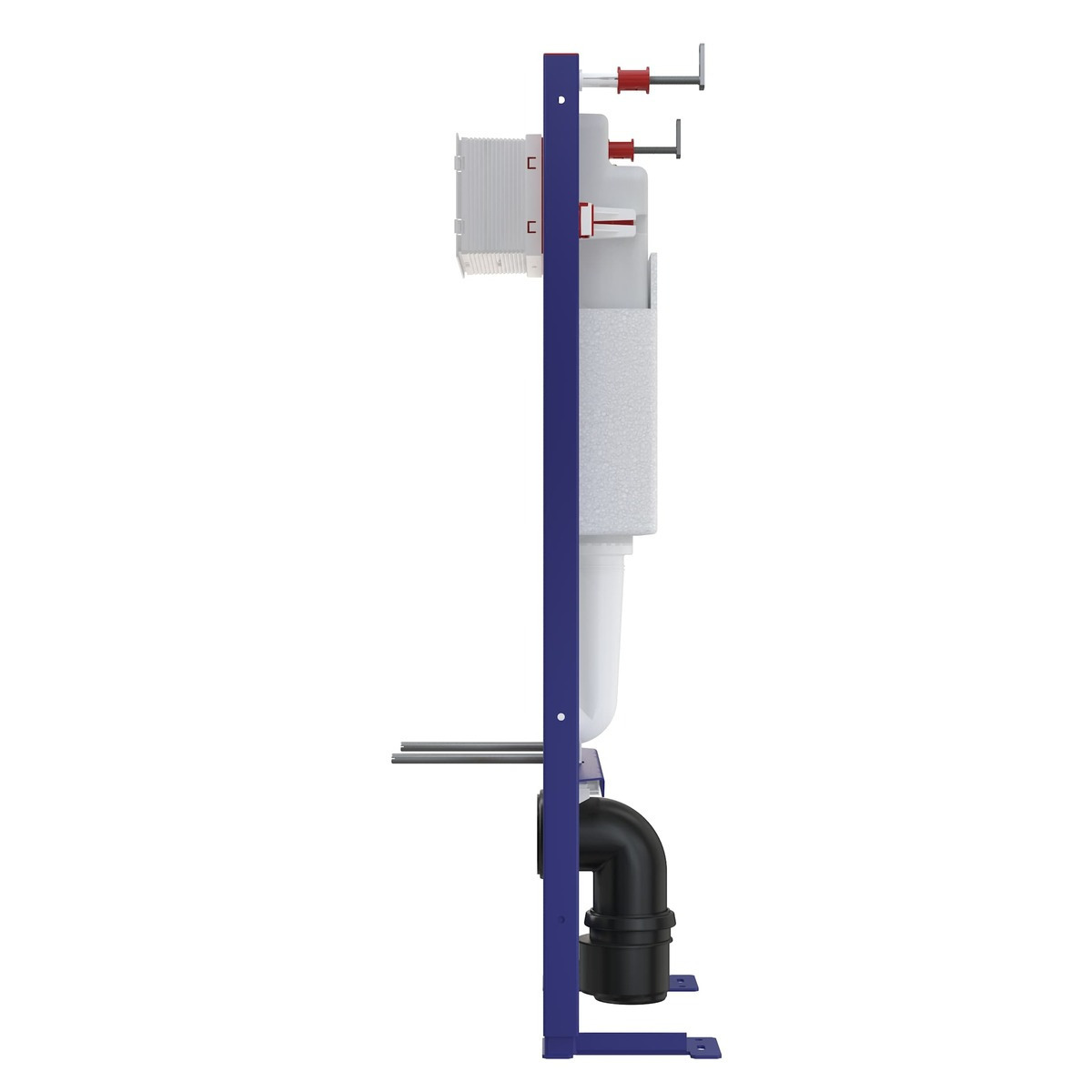

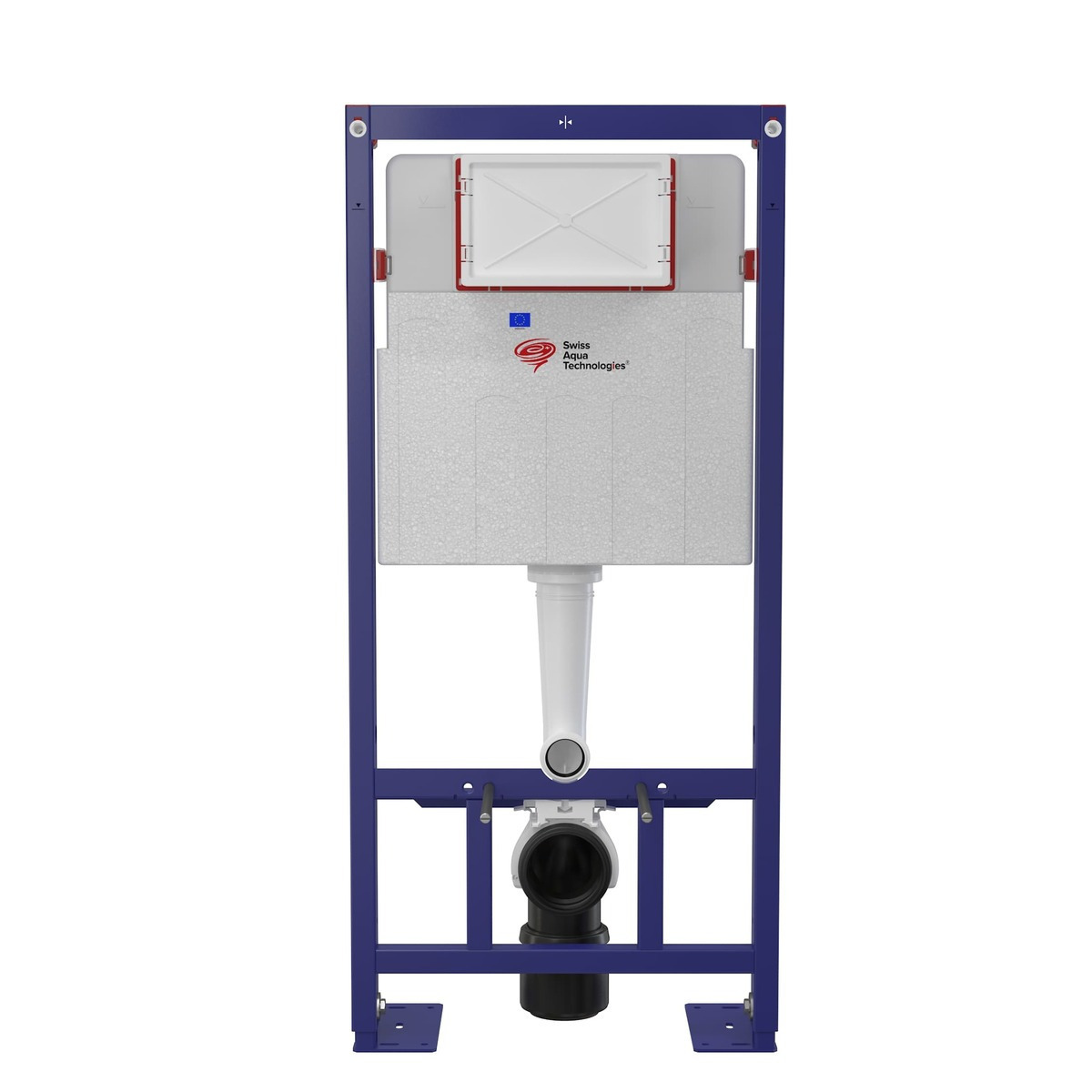

Self-supporting support frame for wall-hung WC, Swiss Aqua Technologies (SATAMS):
- For mounting on load-bearing or non-load-bearing wall
- For floor thickness 0-200 mm
- For mounting wall-hung toilet bowls with 180 mm or 230 mm connection pitch
- Adjustable anchor feet and spring locking system, with a range of 0-200 mm
- Visible markings for levelling and centre line
- Sliding rail support for drain connector that can be adjusted to eight positions between 0 and 93 mm.
- Bracket valve with possibility of connection to Mepla piping system
- For drywall, completely pre-assembled
- The installed module is covered with plasterboard and no additional fixing or anchoring elements are required.
- The polystyrene insulation construction prevents condensation forming on the tank surface and dampens tank vibrations.
- Prepared for bracket connection with 1/2" DG conversion for bidet seats and sprays
- Independently adjustable dual flush with hygienic reserve
- Water supply from rear/top
- The cistern is made from a single piece, ensuring 100% watertightness.
- The service opening cover simplifies assembly and prevents the ingress of moisture and impurities.
- Installation depth adjustable from 20-95 mm
- Installation depth 125 mm
- Frame material: powder-coated metal
- Metal feet
- Stop cock included
- Reduction sleeve 90/100 included (ref VS0564190)

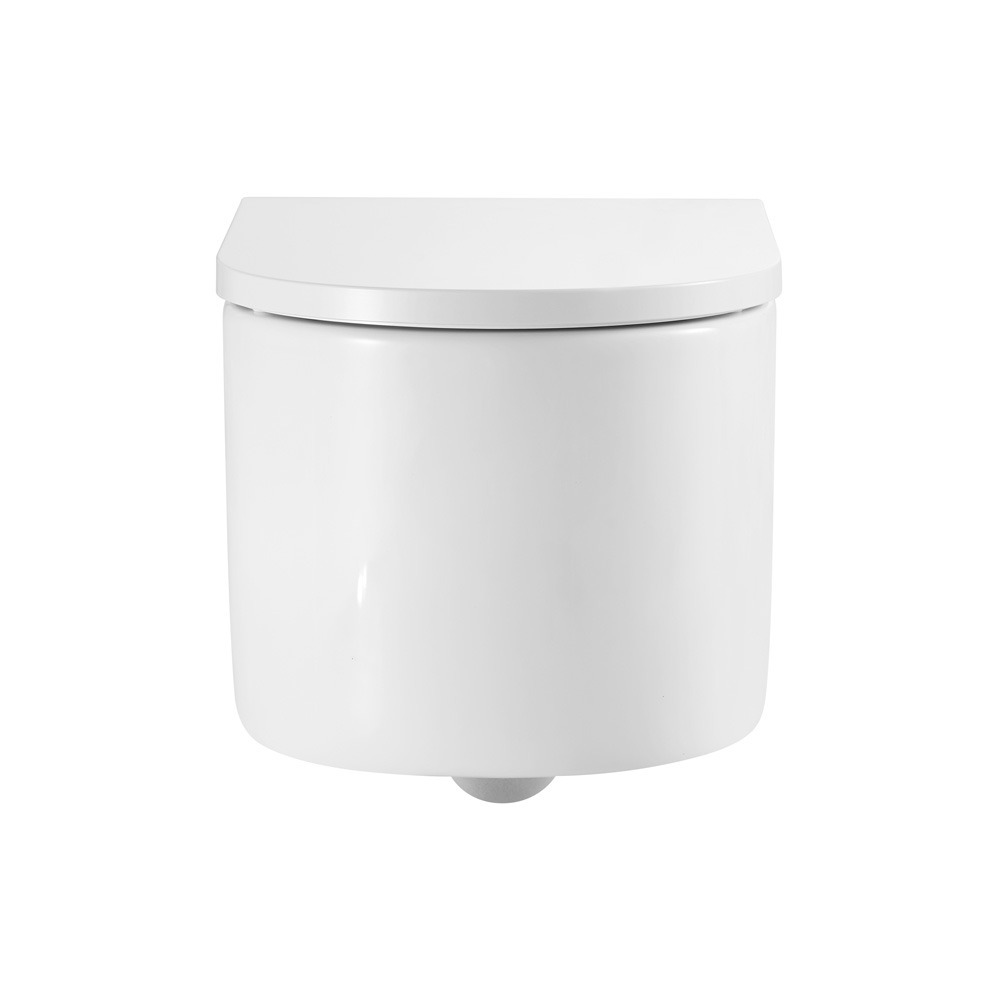

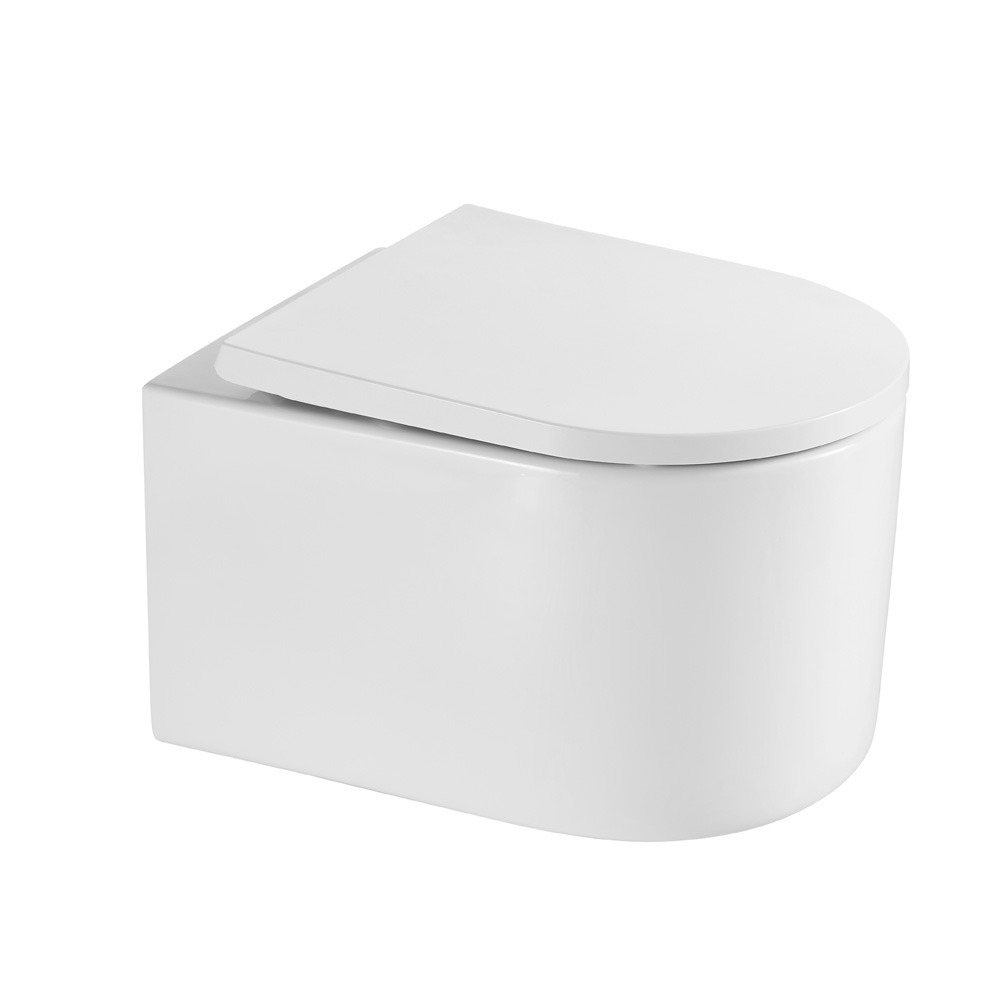

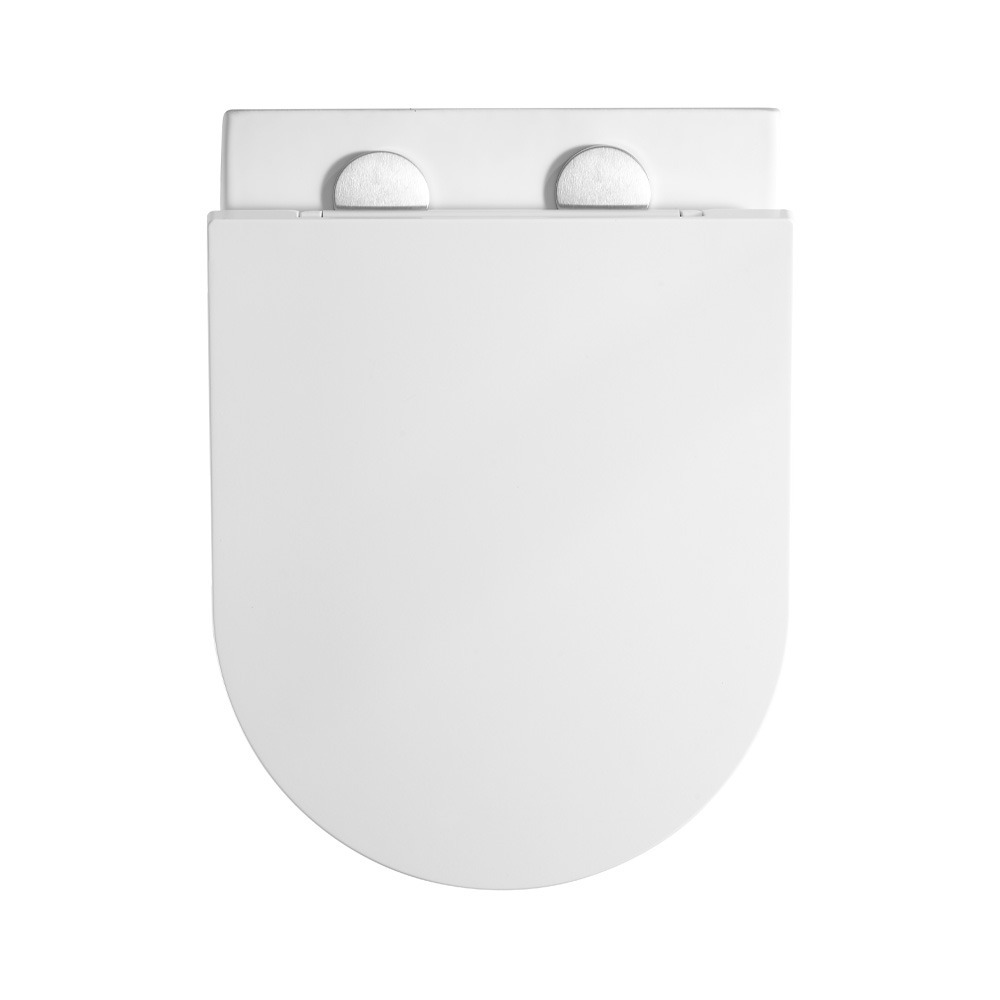

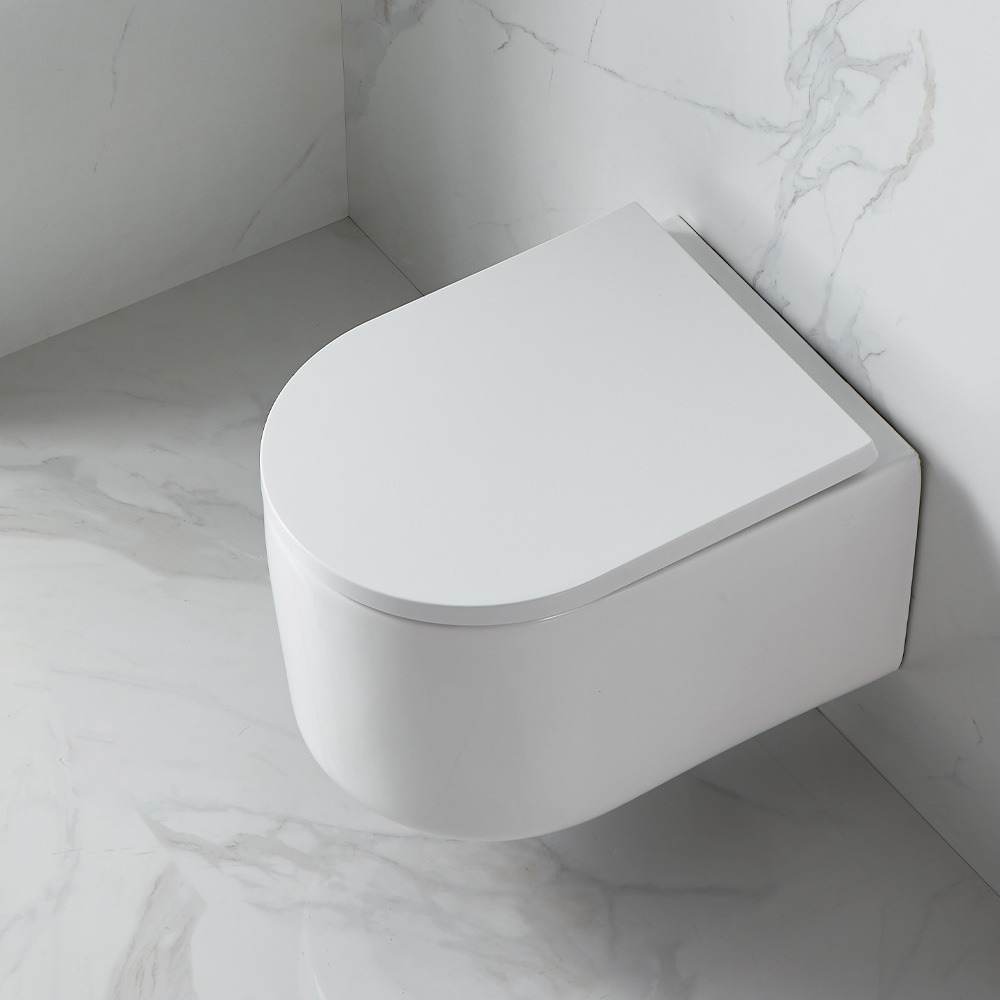

Swiss Aqua Technologies flangeless wall-hung WC with invisible fixings, fall-brake flap (SAT72010RREXP) :
- Brand: Swiss Aqua Technologies
- Material: Ceramic
- Bowl with simple, uncluttered style
- Flangeless bowl
- Hidden fixings
- Drop-brake flapper
- Unclipable flap
- Easy maintenance thanks to flangeless system and removable flap
- Fast installation
AlcaPlast release plate (M570):
- Compatible with all Alcaplast installation systems and pre-wall tanks.
- Thanks to its slim 5.5mm profile, this plate protrudes only slightly from the cladding.
- Dual-action mechanical rinsing.
- Colour: white
