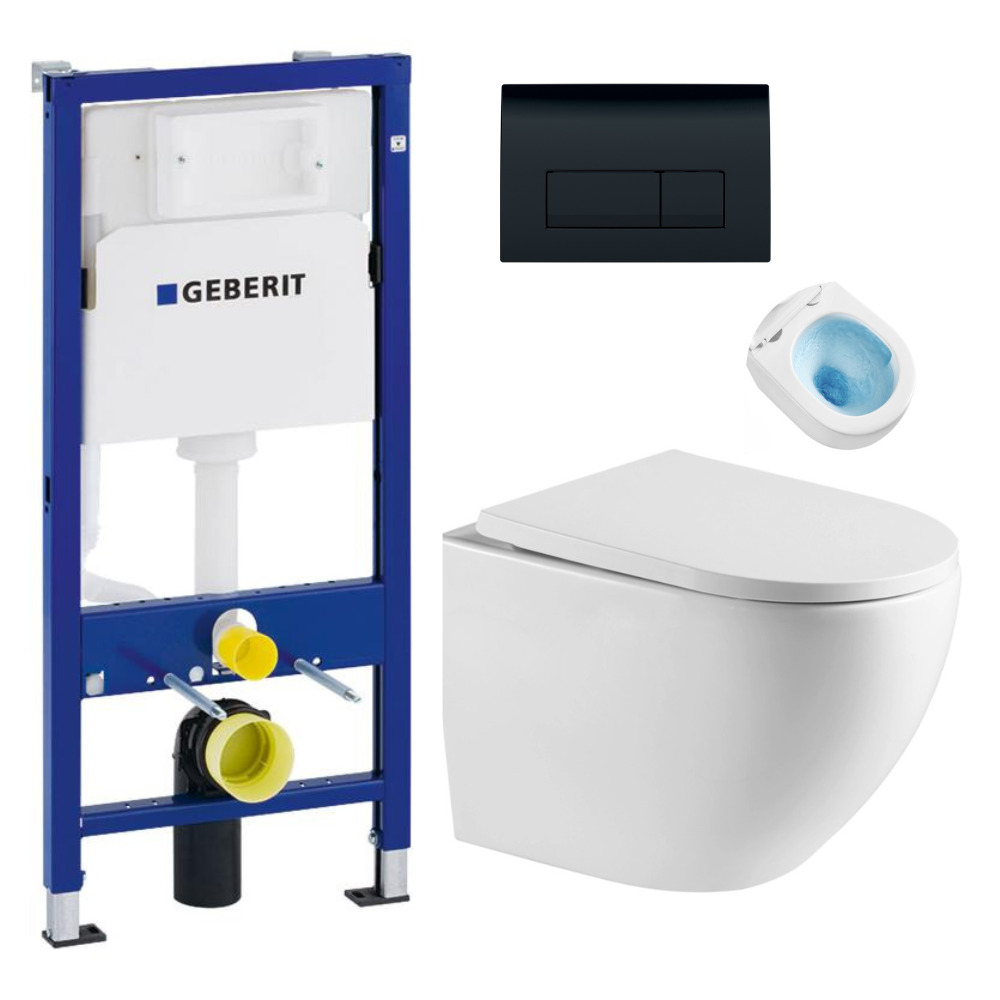

Geberit UP100 wall-mounted pack + SAT rimless WC + SoftClose seat + Delta 50 matt black flush plate (FusionTQGeb10)
- Product reference: FUSIONTQGEB10
- EAN: 8592127188973
- Line:
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
Features of the Geberit UP100 wall-mounted pack + SAT rimless WC + SoftClose seat + Delta 50 matt black flush plate (FusionTQGeb10) :
- Duofix UP100 support stand + cistern assembly for 112 cm WC (458.103.00.1)
- Swiss Aqua Technologies Tornado Quiet rimless wall-hung WC and invisible fixings, softclose seat (SAT67010RTORP)
- Geberit Delta 50 Two-touch control plate, Matt black (115.119.14.1)
- Colour:White
- Material:Ceramics
- Length (cm):112
- Width (cm):24.6
- Height (cm):16.4
- Toilet bowl brand:Swiss Aqua Technologies
- Toilet bowl:Rimless
- Soft closing seat:SOFT CLOSE
- Frame brand:Geberit
- Plate colour:BLACK MAT
- Weight:35
- Bowl colour:White
- Net weight:31.5

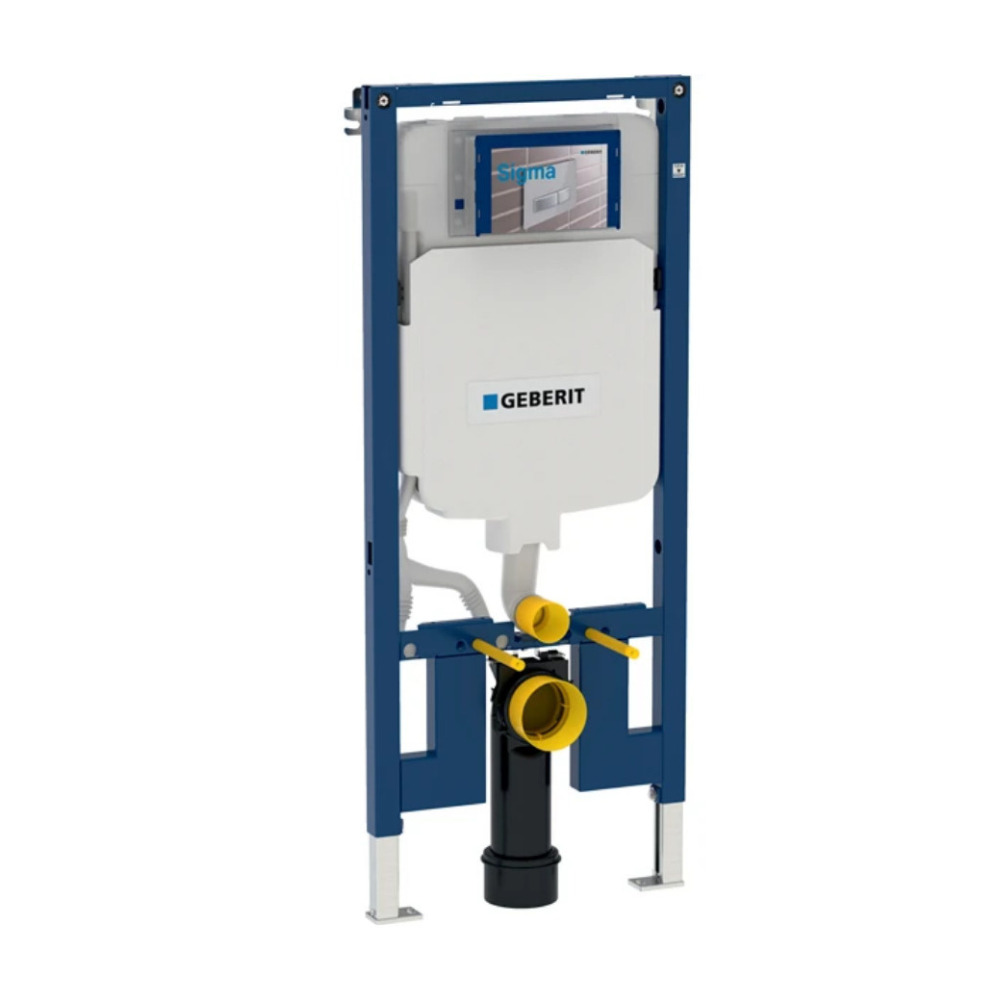

Features of the Duofix UP100 support frame + cistern for 112 cm WC (458.103.00.1):
Use
- For surface-mounted installation over a partial or full height of the room, in front of a solid partition or in front of drywall.
- For mounting a wall-hung toilet bowl with a fixing centre distance of 18 cm or 23 cm
- For screed heights from 0 to 20 cm
- For front release
- For control with Geberit Delta release plates
- For connection of Geberit AquaClean
- Not suitable for concreting
Features
- Geberit Delta 12 cm concealed cistern (UP100) with front operation
- concealed tank insulated against condensation
- volume of large adjustable flush
- volume of small fixed flush
- immediate flush adjustment possible
- water inlet from rear / top centre
- connection pipe to angle tap to be screwed on by hand
- 1 flush volume with Geberit Delta15 trigger plate
- 2 flush volumes with Geberit Delta20, Delta 21 and Delta 50 trigger plates
- frame surface treated with powder paint, Geberit colour blue
- frame with ø 9 mm holes for fixing in wooden constructions
- galvanised support legs infinitely adjustable from 0 to 20 cm
- plastic foot plate depth suitable for UW50 rail mounting
- installation depth 12 cm
Technical information
- flush volume - factory setting: 6 and 3.5 l
- large flush volume - range of settings: 4.5 / 6 / 7.5 l
Delivery contents
- 2 M12 threaded rods for fixing ceramic bowl
- discharge valve for 2 flush volumes
- reservation housing for inspection hatch, made of polystyrene foam
- 2 protective caps
- R 1/2" angle tap with adaptor ring
- insulating water inlet sleeve for Geberit AquaClean
- flush elbow fixing
- connection kit ø 90 mm
- flush elbow for WC, PE-HD, ø 90/90 mm
- reduction, Ø 90/110 mm
- fixing hardware
- kit for surface mounting
This set does not include:
- Wall mounting for load-bearing wall 111.815.00.1

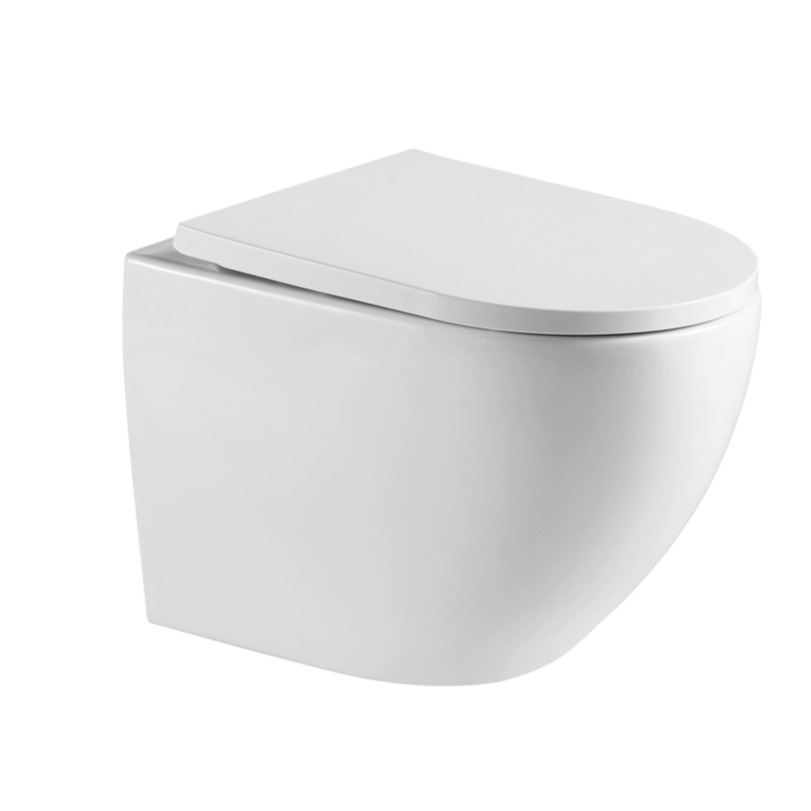

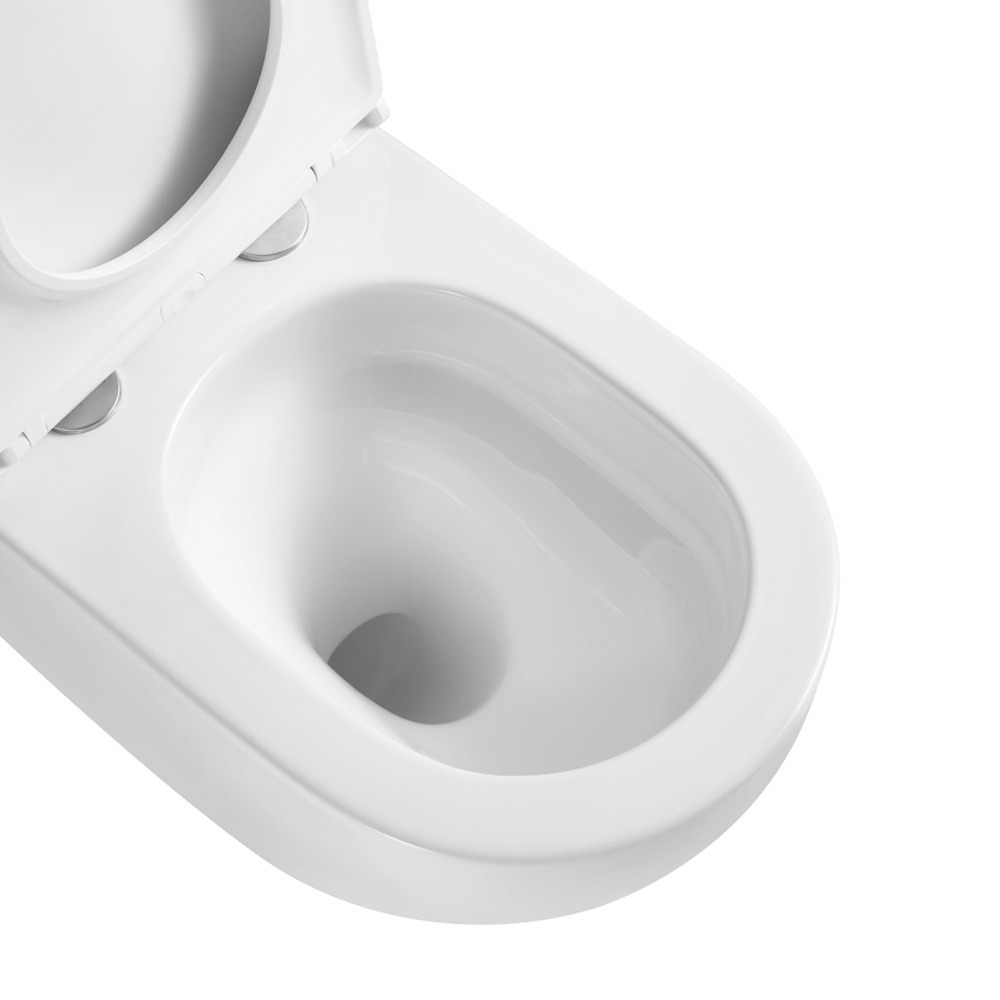

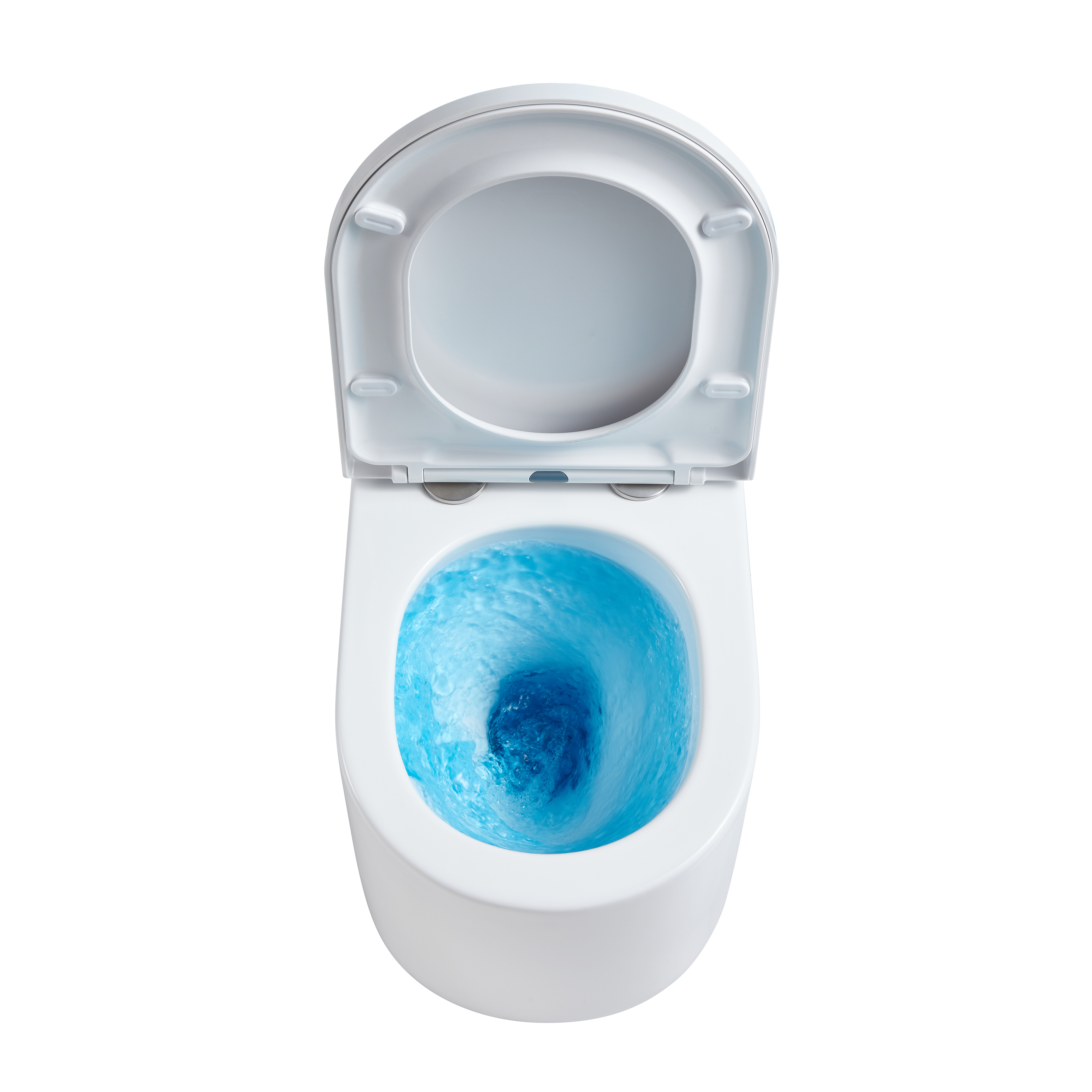

Features of the Tornado Quiet rimless wall-hung toilet and invisible fixings, softclose (SAT67010RTORP):
- Brand: Swiss Aqua Technologies
- Material : Ceramic
- Bowl with simple, uncluttered style
- Flange-free bowl with Tornado Quiet technology
- Hidden fixings
- Drop-brake flapper
- Unclipable flap
- Easy maintenance thanks to flangeless system and removable flap
- Fast installation

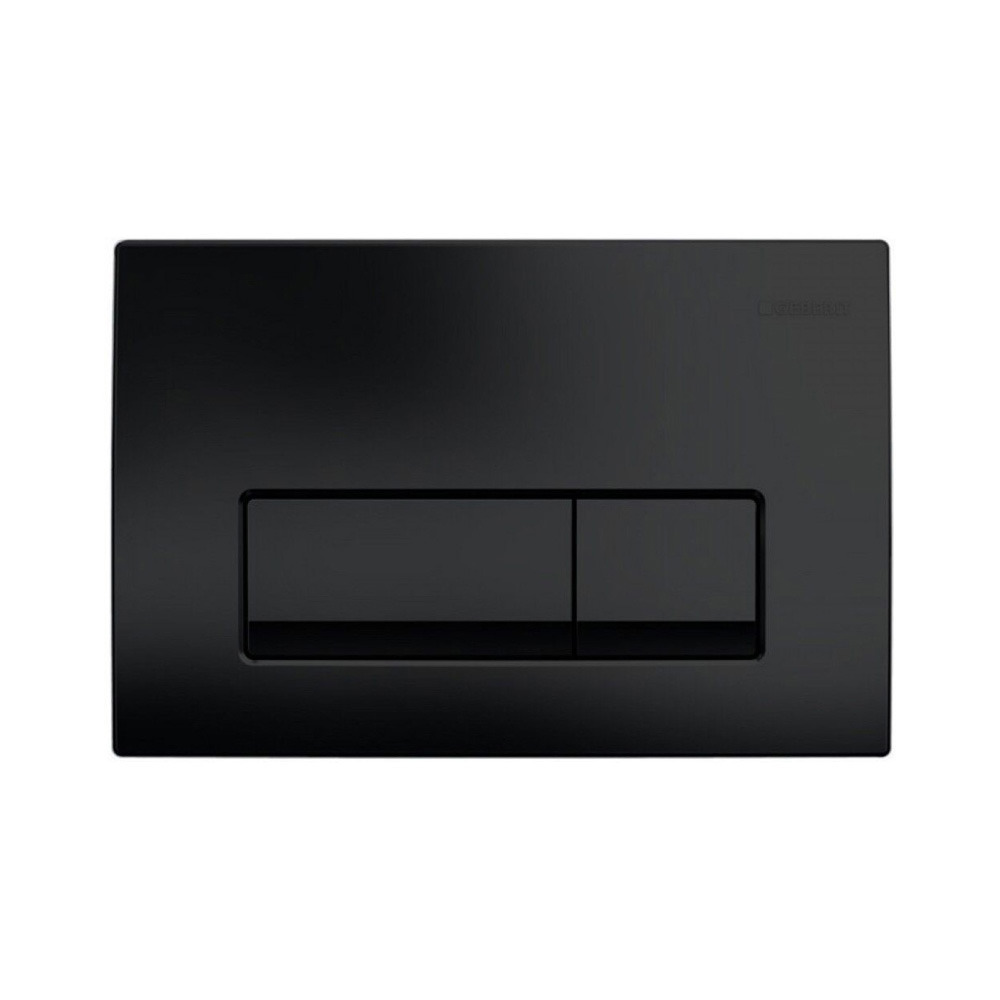

Features of the Delta 50 two-touch control plate, Matt black (115.119.14.1):
- Two-touch
- Mounting frame
- Fixing material
- DELTA 50 series
- Dimensions: 24.6x16.4 cm
- Colour: matt black
Warning! It is imperative to check the products on receipt. Any damage must be noted in front of the delivery person and indicated precisely for each product on the delivery note. No claims can be accepted after the fact, as carriers are very strict in this respect. Thank you for your understanding
When it comes to a multi-brand pack, it is then the sum of the PPC of its components.
