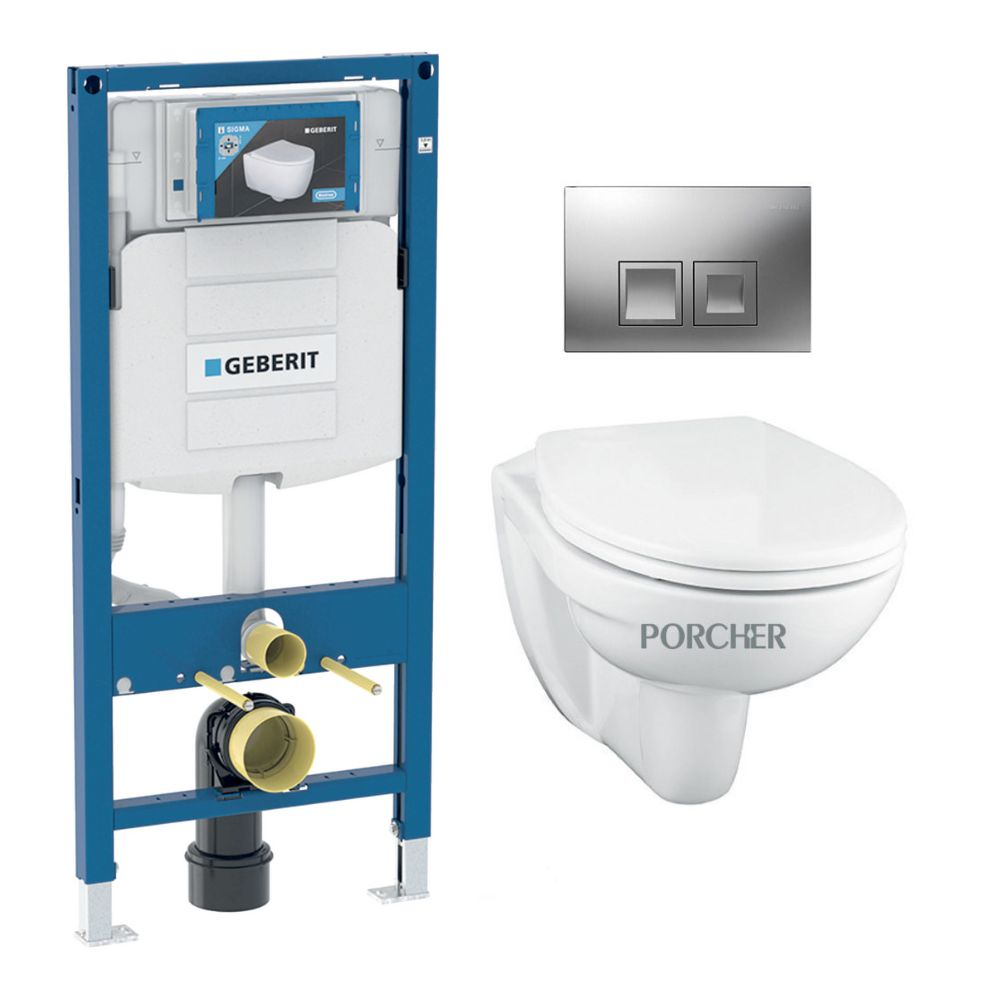

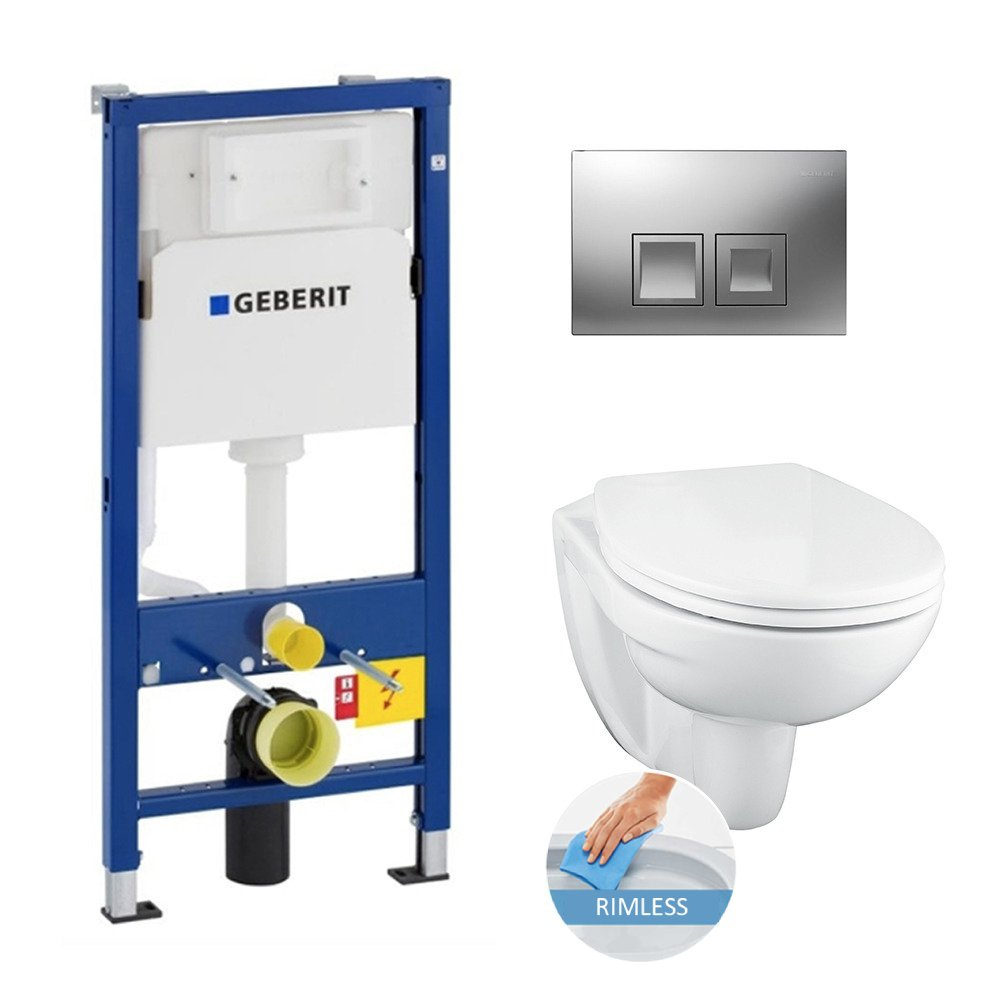

Geberit Pack WC DuofixBasic Geberit support frame + Porcher wall-hung toilet rimless + Geberit DELTA35 matt chrome plate (PorcherGeb2)
- Product reference: PORCHERGEB2
- EAN: 0034966355836
Features of the Pack WC DuofixBasic Geberit support frame + Porcher wall-hung toilet rimless + Geberit DELTA35 matt chrome plate (PorcherGeb2)
- Geberit Duofix Basic UP100/112 cm (458.103.00.1)
- Porcher rimless toilet bowl (P006701)
- Ideal Standard Astor toilet seat (W302601)

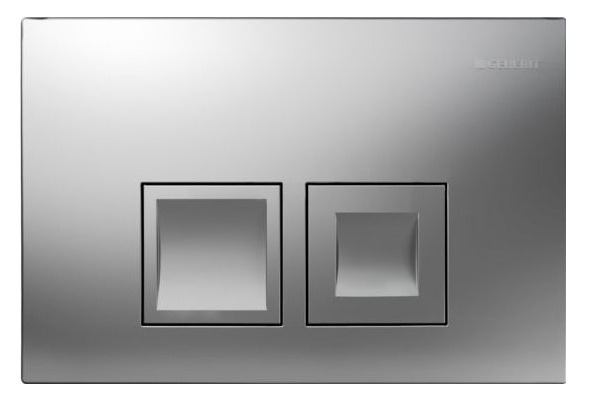

- DELTA35 matt chrome two-button trigger plate (115.135.46.5)
Discover the easy and seamless installation of the Geberit module with this helpful video guide. Click the link to get started! https://www.youtube.com/watch?v=QgP0aSEW2ZE
see detailed description- Colour:White
- Material:Porcelain
- Length (cm):52
- Width (cm):35.5
- Height (cm):35
- Toilet bowl brand:Porcher
- Toilet bowl:Rimless
- Frame brand:Geberit
- Type of frame:Standard
- Plate colour:Matt chrome
- Weight:16.2

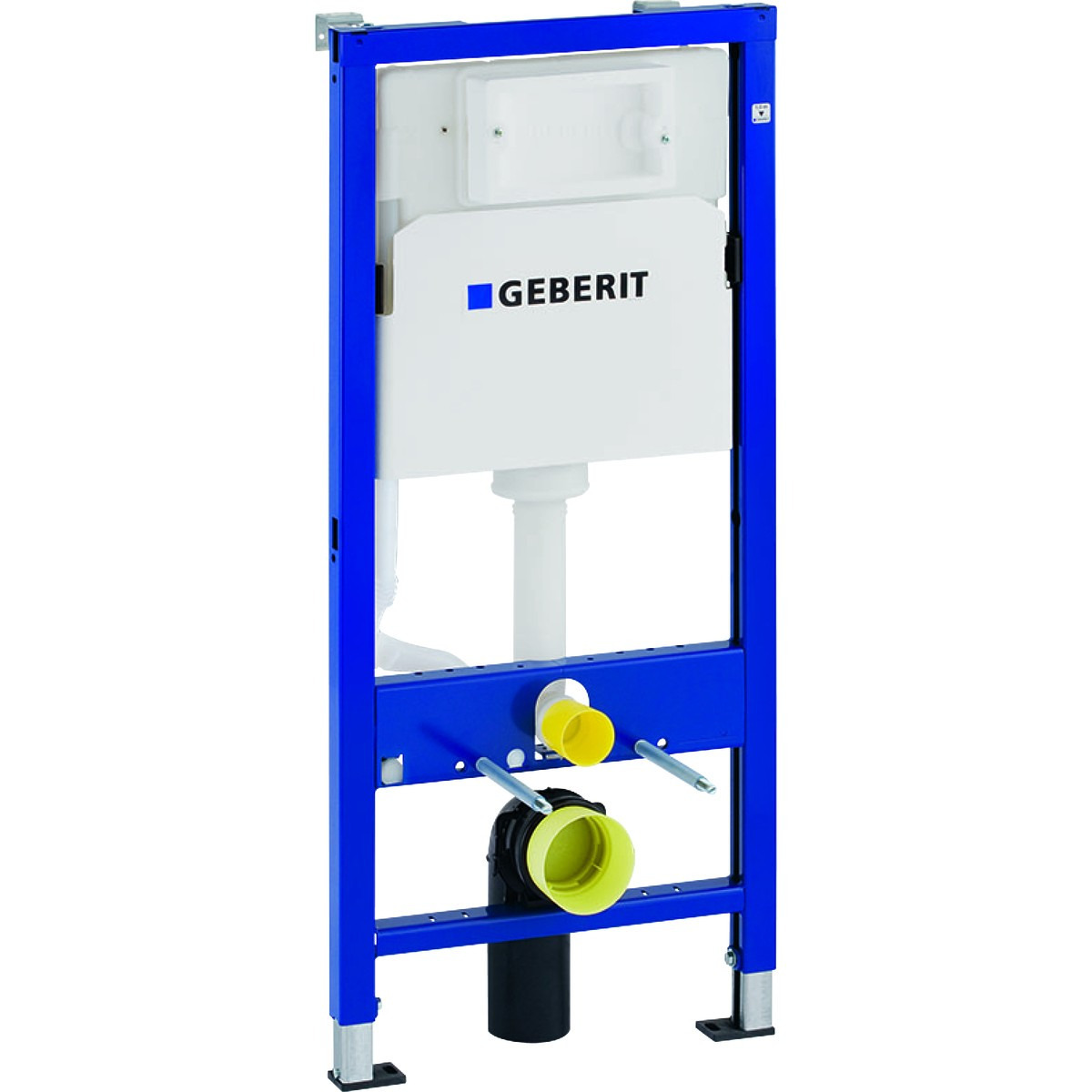

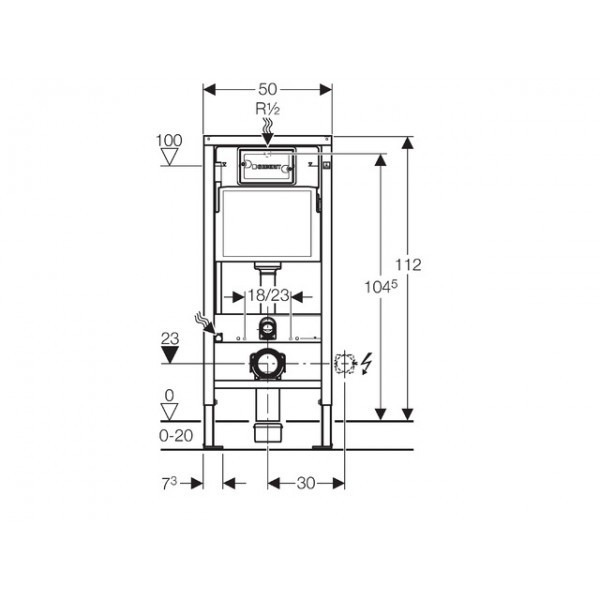

Support frame for installation on load-bearing wall or reinforced partition Geberit Duofix Basic UP100/112 cm (458.103.00.1) :
- Model: Solid Geberit UP100 Pack Bati WC for self-assembly
- 112 cm galvanized support frame with adjustable feet from 0-20 cm
- UP100 water tank (with 25 years manufacturer's warranty on spare parts)
- Pre-painted frame in Geberit blue
- Supporting feet with marking for graduation in cm
- Swivel feet for installation in profile UW50/UW75
- Crossbar for cladding support
- 2 threaded rods M12 for fixing the ceramic tiles with an intermediate distance of 18 or 23 cm
- Concealed cistern 4-6-7,5 l, insulated against condensation
- Two quantity front release with Delta21, Delta20 or Delta50 plates
- Rear/upper supply
- Angle shut-off valve R1/2",
- Reservation box for inspection hatch
- Construction protection made of styrophor
- Drainage elbow Ø 90 mm
- Sleeve fitting Ø 90 mm
- Transition sleeve Ø 90/110 mm
- Fixing material
- Trigger plate with ABS double button device

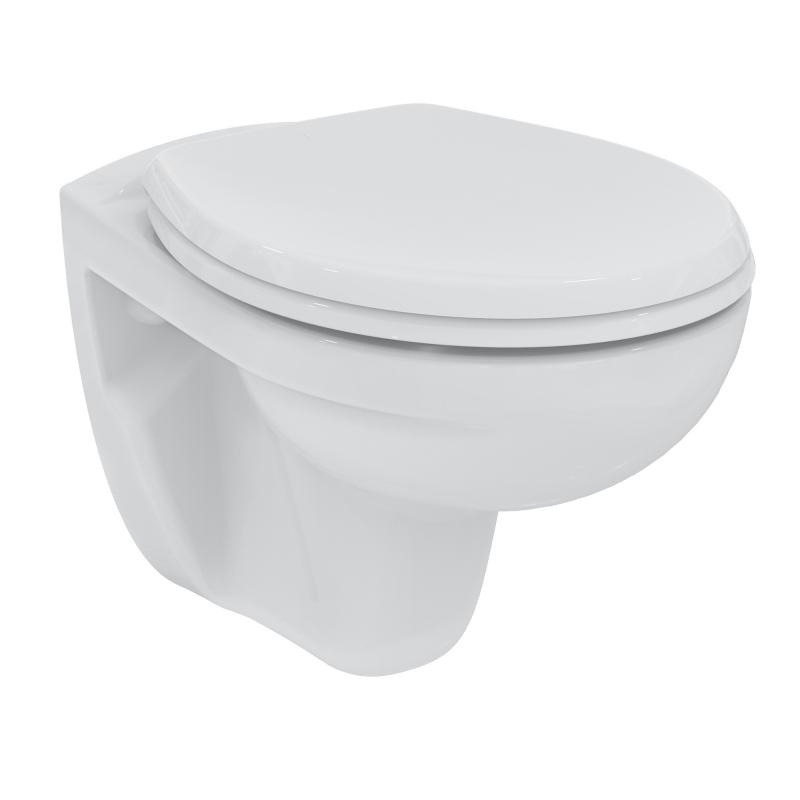

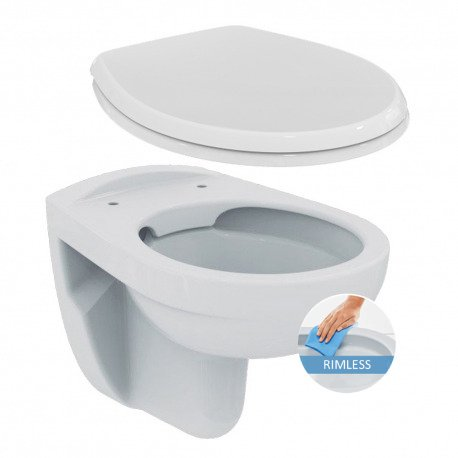

Porcher Suspended rimless toilet (P006701) :
- Toilet for wall mounting
- Rimless: technology without rim
- Material: porcelain
- Water requirement: 4.5 liters
- Standards: DIN EN 997 CL1-6 a/5 a and DIN EN 33
- Inlet: rear

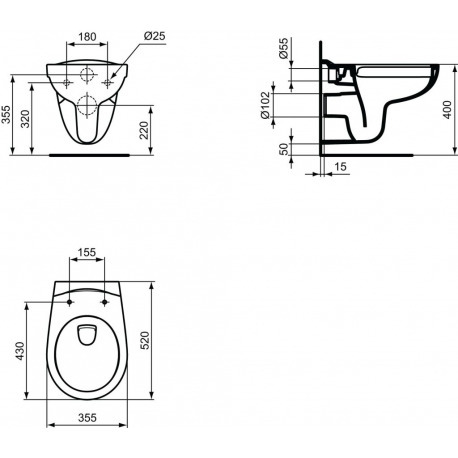

- Width: 355 mm
- Depth of throat: 520 mm
- Height: 350 mm
- Rear width: 280 mm
- Seat mounting distance front / middle: 430 mm
- Seat attachment spacing: 155 mm
- Color: Alpine White
- Weight: 16.2 kg
Ideal Standard Astor toilet seat (W302601):
- Toilet seat for standard toilet with stainless steel hinges.
- Seat and cover in Duroplast.
- Adjustable stainless steel hinges with bottom mounting.
- Extended stops in the seat and circular stops in the lid.
- Complies with the standard; NF 20 & DIN 19516

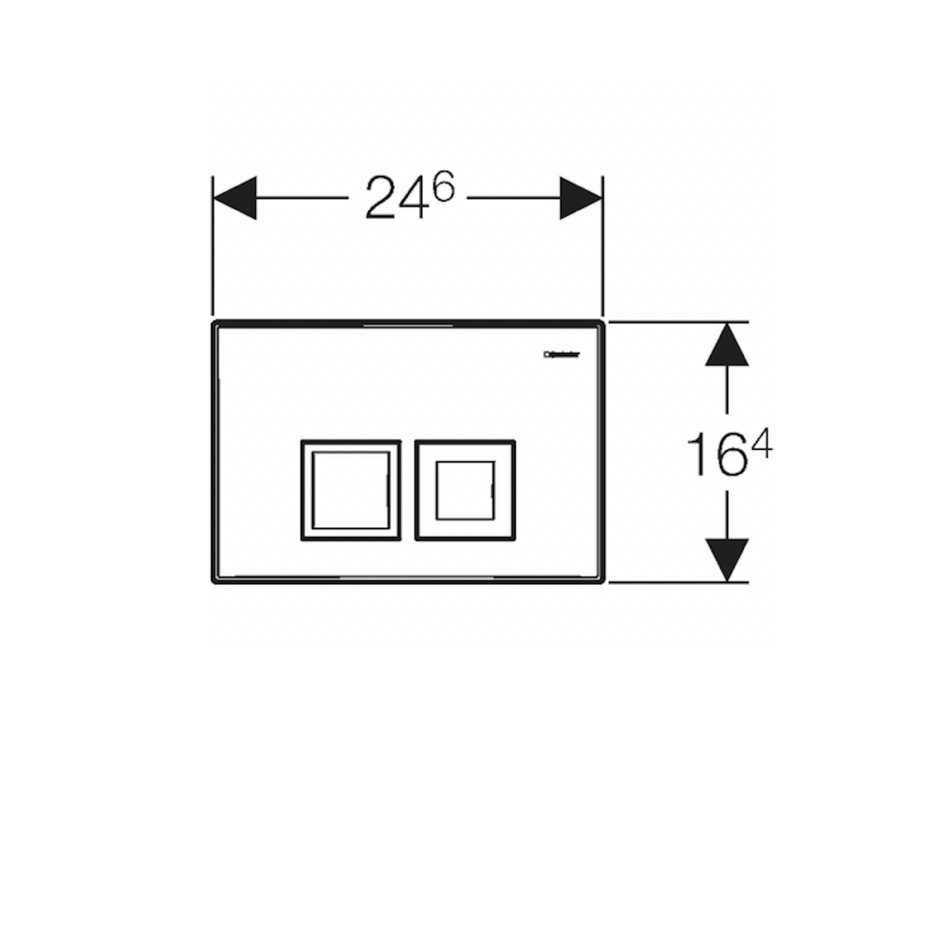

DELTA50 two-button release plate, matte chrome (P/N 115.135.46.1) :
- Trigger plate with two-button device ABS
